52 17 390 Removing And Installing Or Replacing Front Left Or Right Head Restraints (Comfort)

WARNING: This page is about a different variant/trim than selected.

Pull headrest upwards firmly.

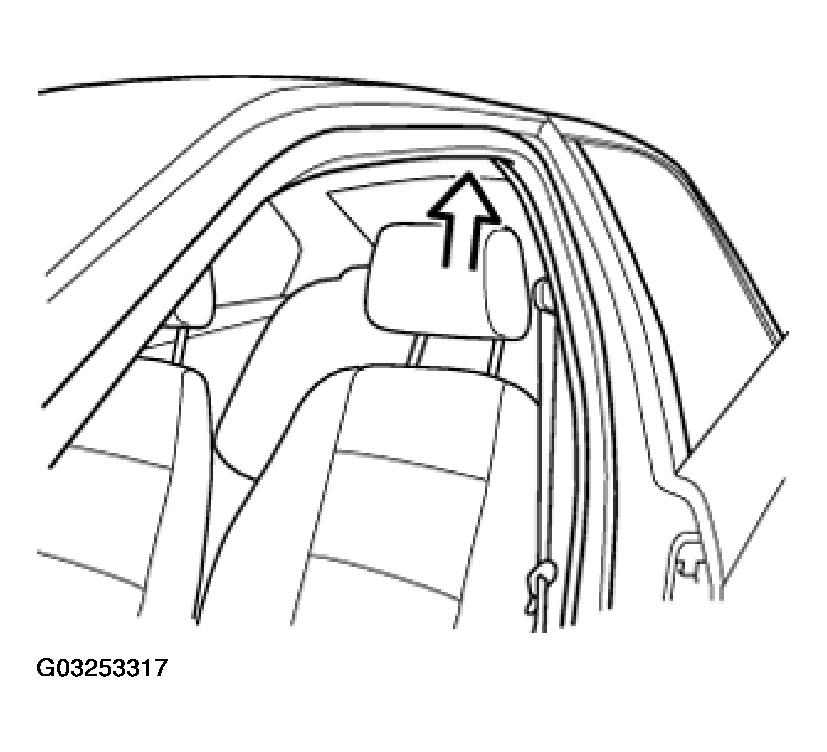

Fig 1: Pulling Up Headrest

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove rear panel at top and unclip head restraint from mount.

Installation:

Remove rear panel at top.

Insert head restraint in backrest, then clip rods (1) of head restraint into head restraint mount (2).

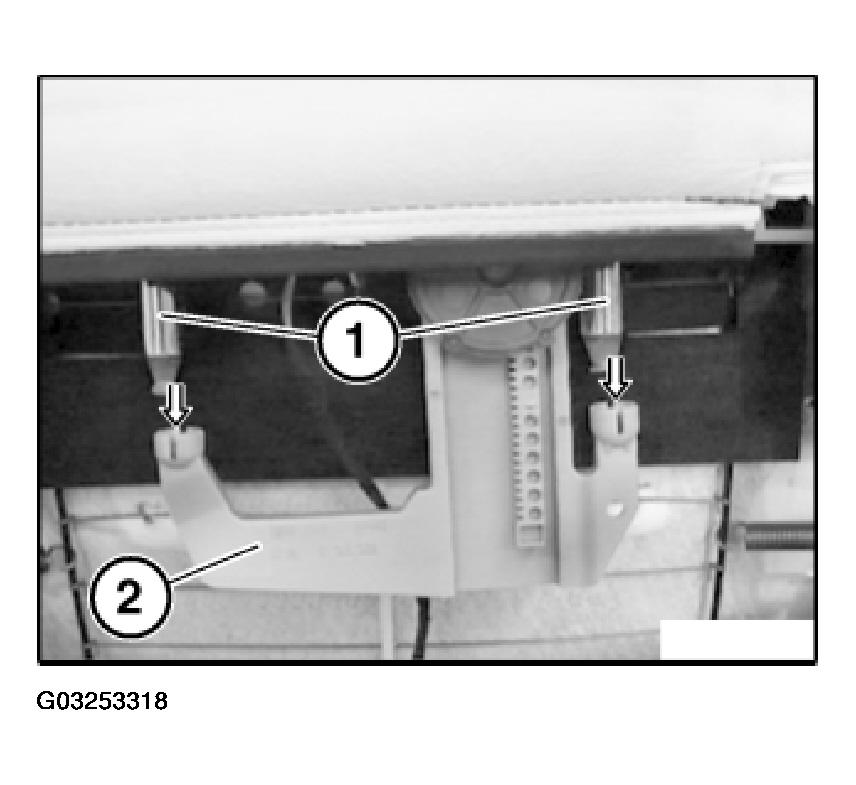

Fig 2: Inserting Head Restraint In Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out function check.
