52 17 035 Removing And Installing/Replacing Gearing For Head Restraint Adjustment (Comfort Seat)
WARNING: This page is about a different variant/trim than selected.
Head restraint must be moved as far forwards as possible.
Remove rear panel at top.
Remove rear panel at bottom.

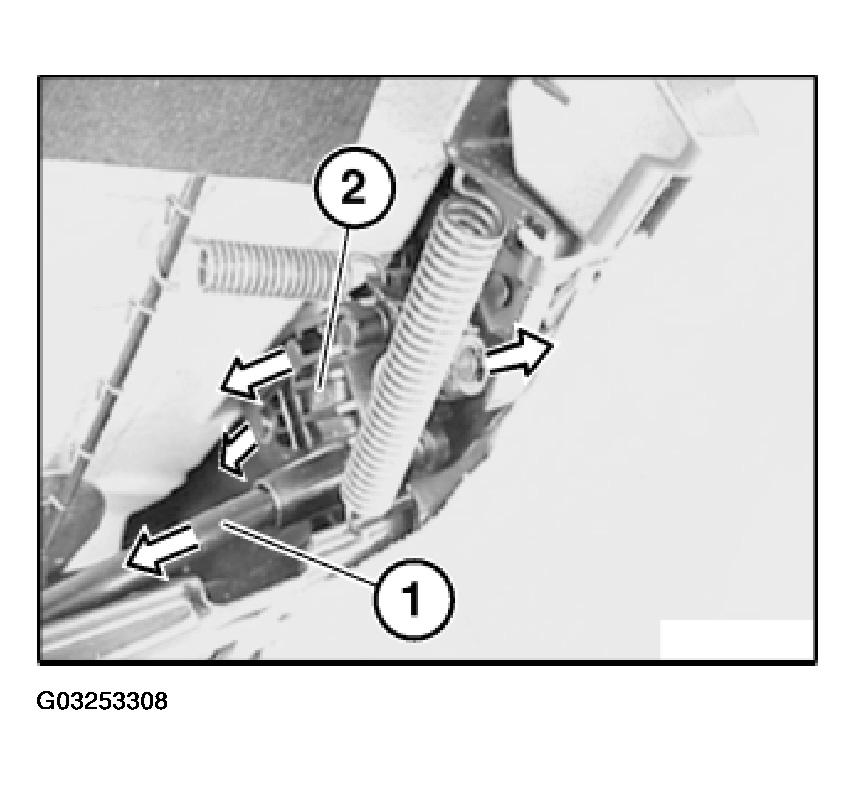

Withdraw shaft (1) from gearing (2).
Detach upper and lower retainer of gearing (2).
Remove gearing (2) to side.
Installation:
Carry out function check.
