52 17 034 Removing And Installing/Replacing Shaft For Headrest Adjustment (Comfort Seat)
WARNING: This page is about a different variant/trim than selected.
Headrest must be moved as far forwards as possible.
Remove rear panel at top.
Remove rear panel at bottom.

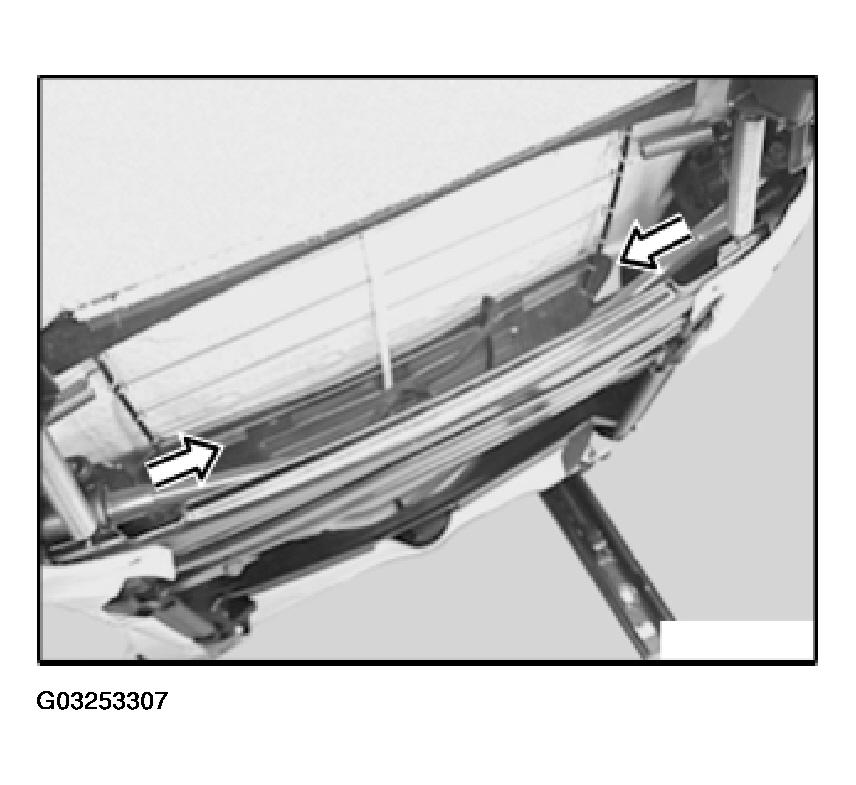

Withdraw shaft in succession from gear and drive.
Courtesy of BMW OF NORTH AMERICA, INC.
Installation:
Carry out function check.
