84 11 610 Removing and installing/replacing eject box (cordless keypad handset)

Special tools required:

• 00 9 341

If necessary, remove telephone from eject box.

Move center console armrest back and fold up.

Remove screws (1) and (2).

Move trim (3) upwards over lock (4) and remove towards front.

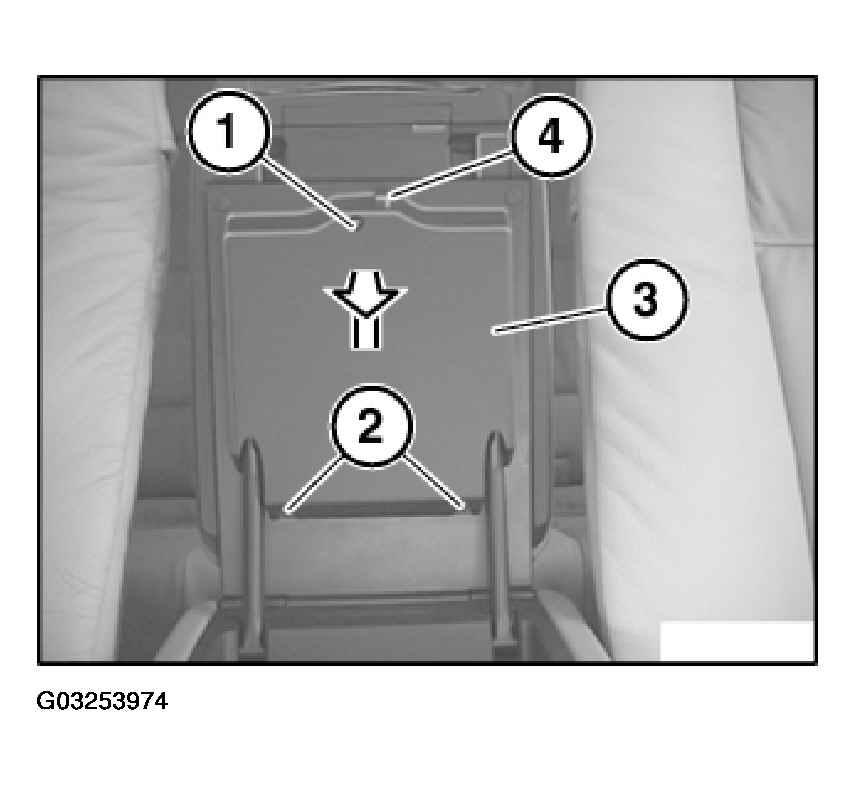

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Turn plug connection (1) over detent lug (2) in direction of arrow and unclip.

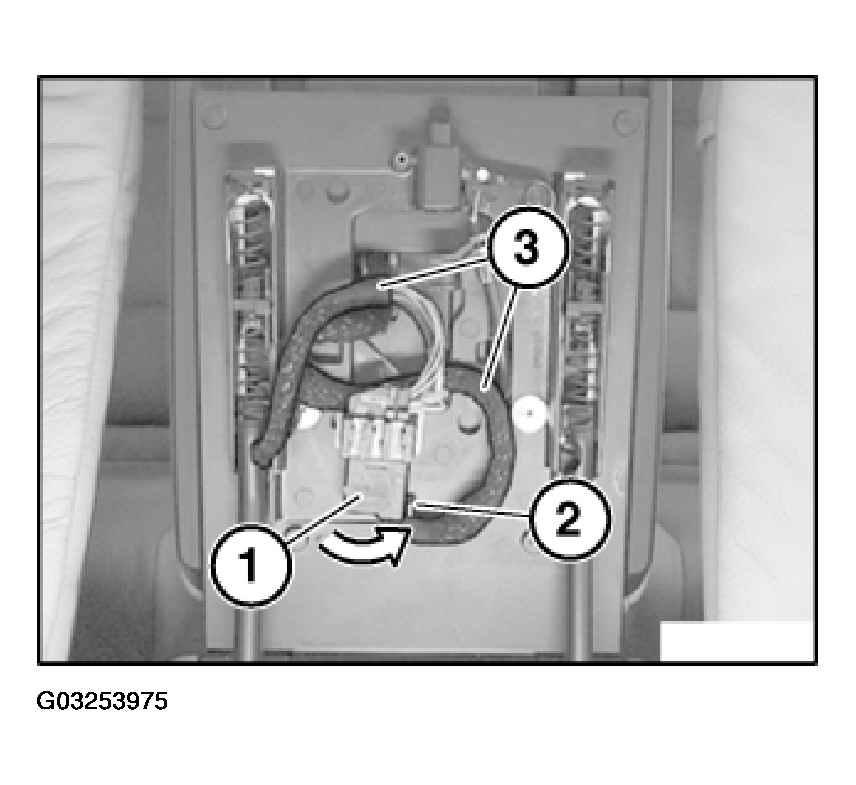

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Installation:

Make sure wiring harness (3) is correctly laid.

Fold center console armrest down.

Lever out catches on both sides with special tool 00 9 341.

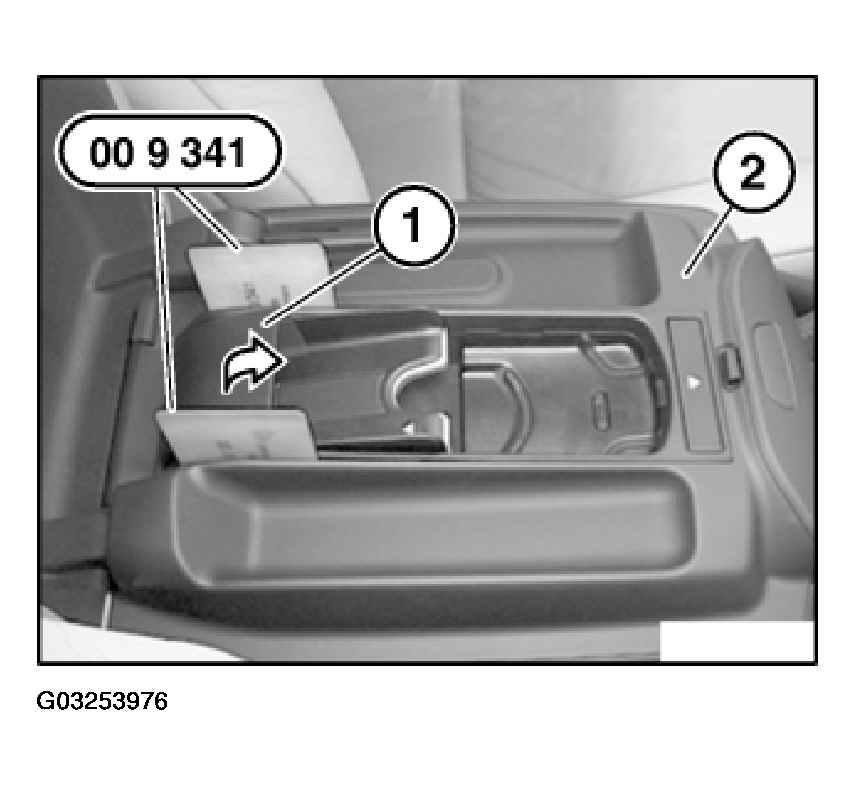

Fig 3: Removing Eject Box

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up eject box (1) in direction of arrow and feed out of front guide.

Feed out wiring harness underneath and remove eject box (1) from armrest function carrier (2).
