84 11 550 Removing and installing/replacing handsfree microphone

WARNING: This page is about a different variant/trim than selected.

Remove front ceiling light. Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT .

Press out hands-free microphone (3) from inside.

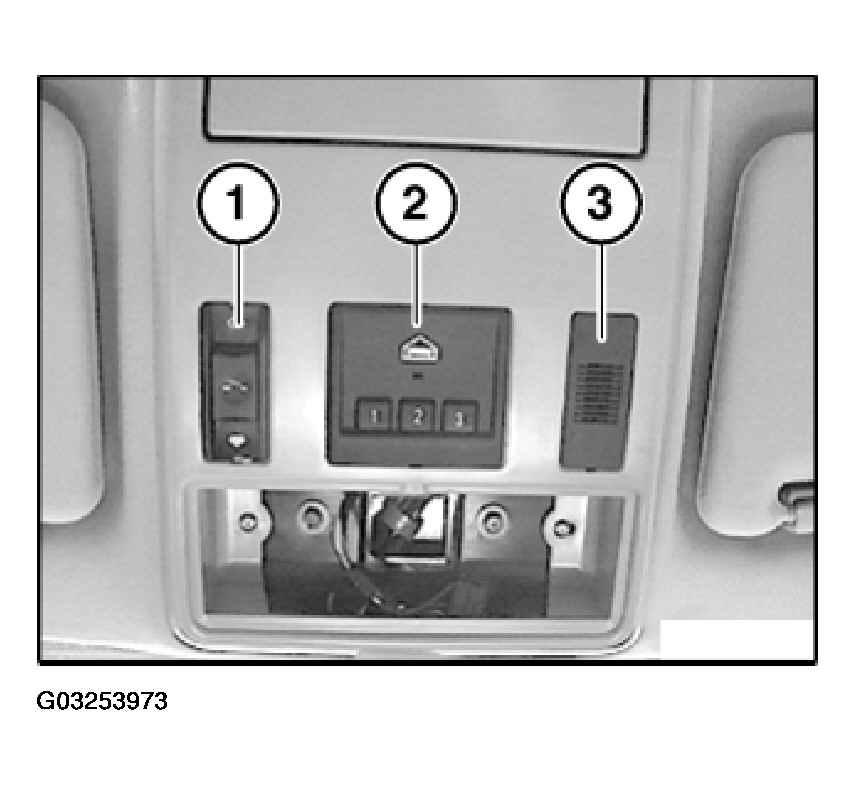

Fig 1: Locating Hands-Free Microphone
G03253973Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug.

NOTE: (1)=Switch for sunroof.
(2)=Remote control for garage door opening.
