84 11 515 Removing and installing/replacing eject box

Special tools required:

• 00 9 341

If necessary, remove telephone from eject box.

Move center console armrest back and fold up.

Remove screws (1) and (2).

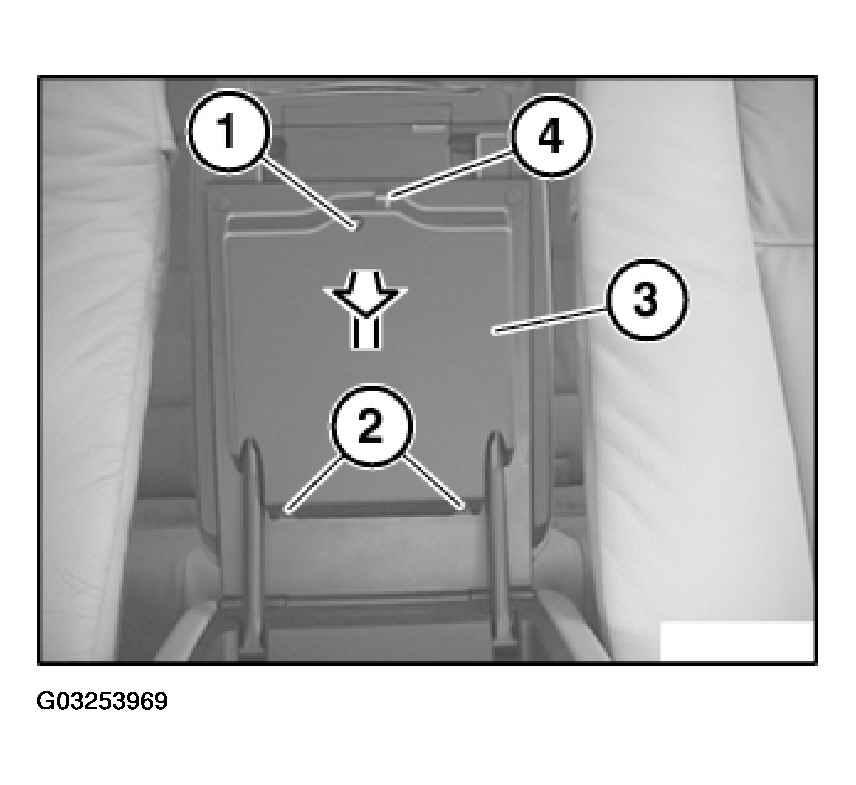

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Move trim (3) upwards over lock (4) and remove towards front.

Turn plug connection (1) over detent lug (2) in direction of arrow and unclip.

Disconnect plug connection (1).

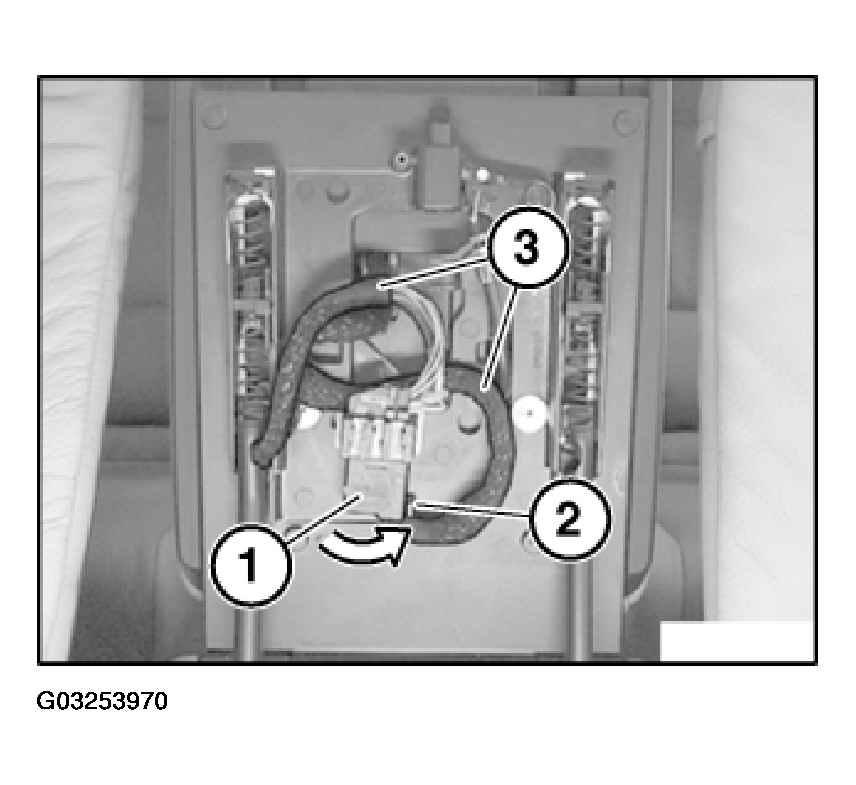

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure wiring harness (3) is correctly laid.

Fold center console armrest down.

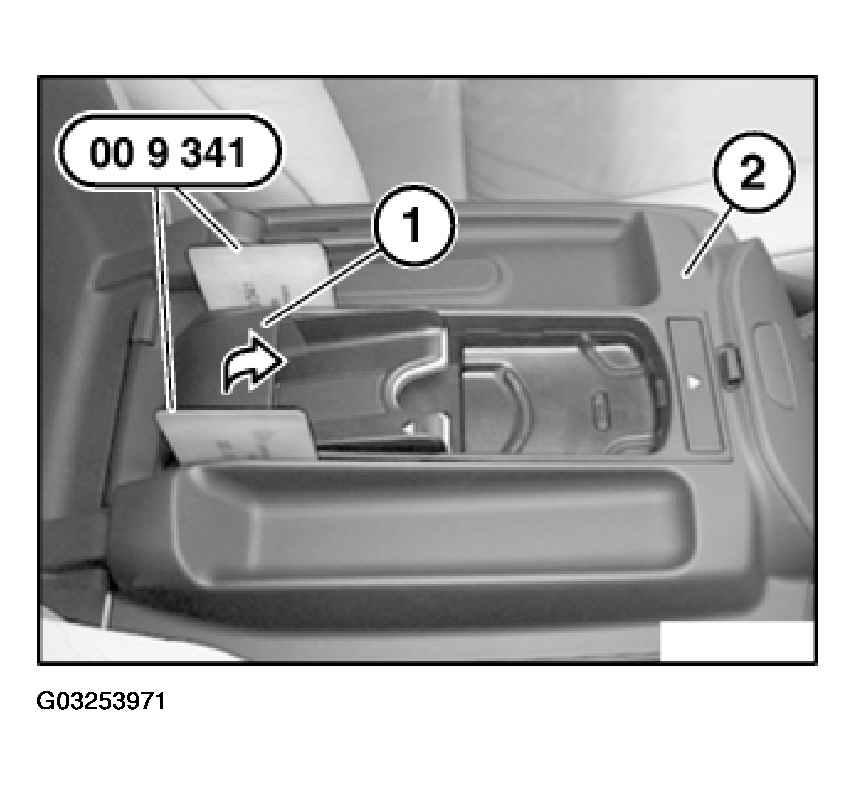

Lever out catches on both sides with special tool 00 9 341. Fold up eject box (1) in direction of arrow and feed out of front guide.

Fig 3: Removing Eject Box

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out wiring harness underneath and remove eject box (1) from armrest function carrier (2).
