84 11 510 Removing And Installing/Replacing Eject Box (V Series Cellular Telephone)

WARNING: This page is about a different variant/trim than selected.

If necessary, remove telephone from eject box.

Unclip plug connections (1).

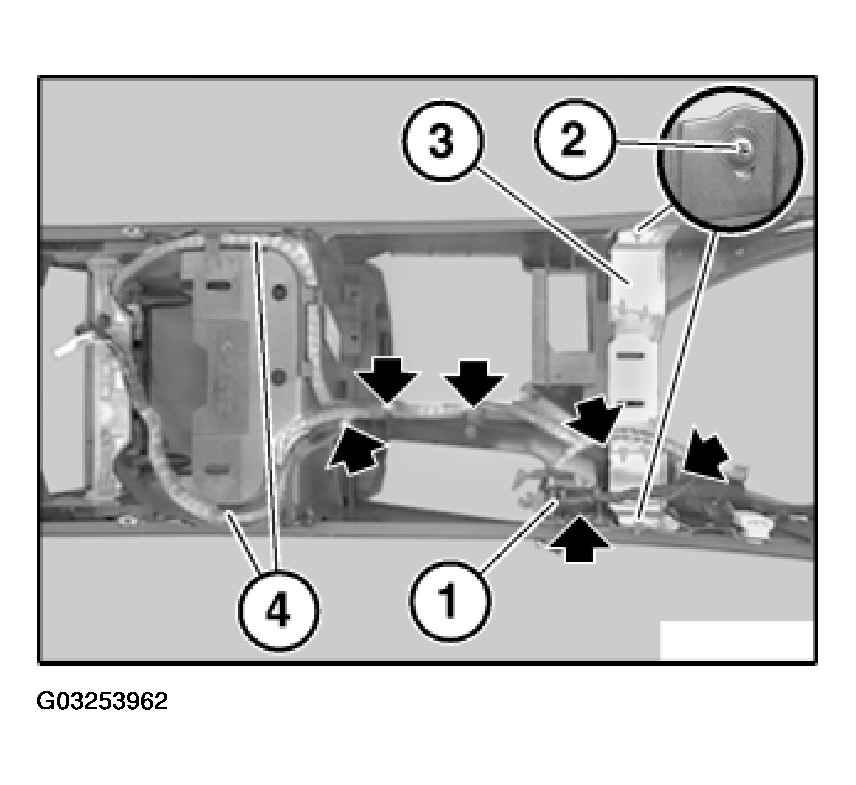

Fig 1: Removing Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove bracket (3).

Release cable straps and remove wiring harness (4) from guides.

Installation:

Ensure correct cable routing.

Loosen screws (1).

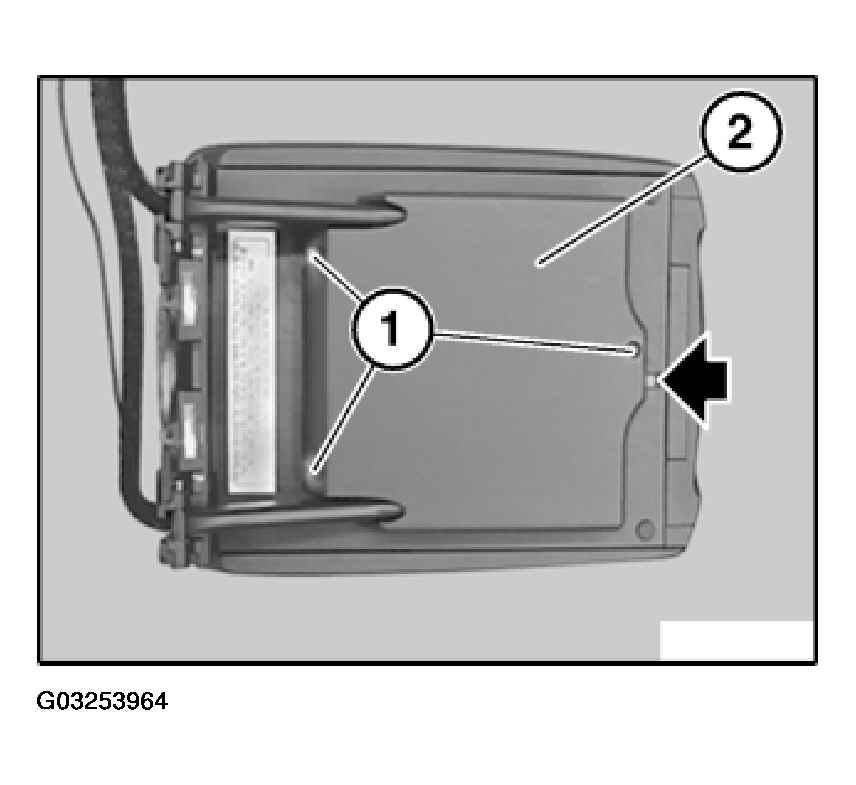

Fig 2: Removing Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Remove armrest (2).

Loosen screws (1).

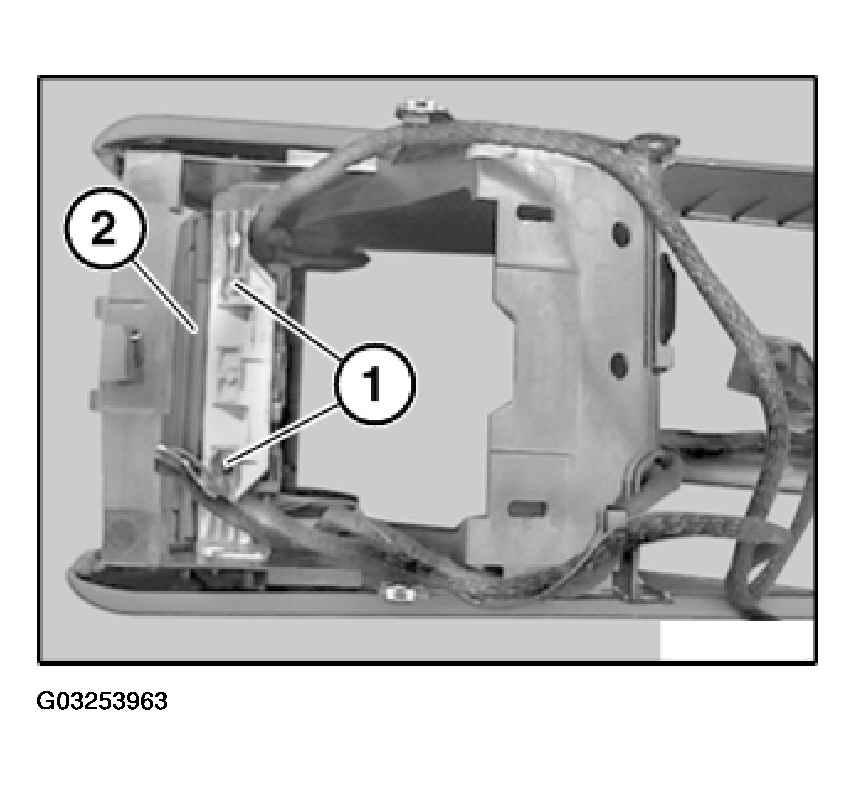

Fig 3: Removing Cover On Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out cover (2) on lock and lift off.

Drive out pins (1) in direction of arrow.

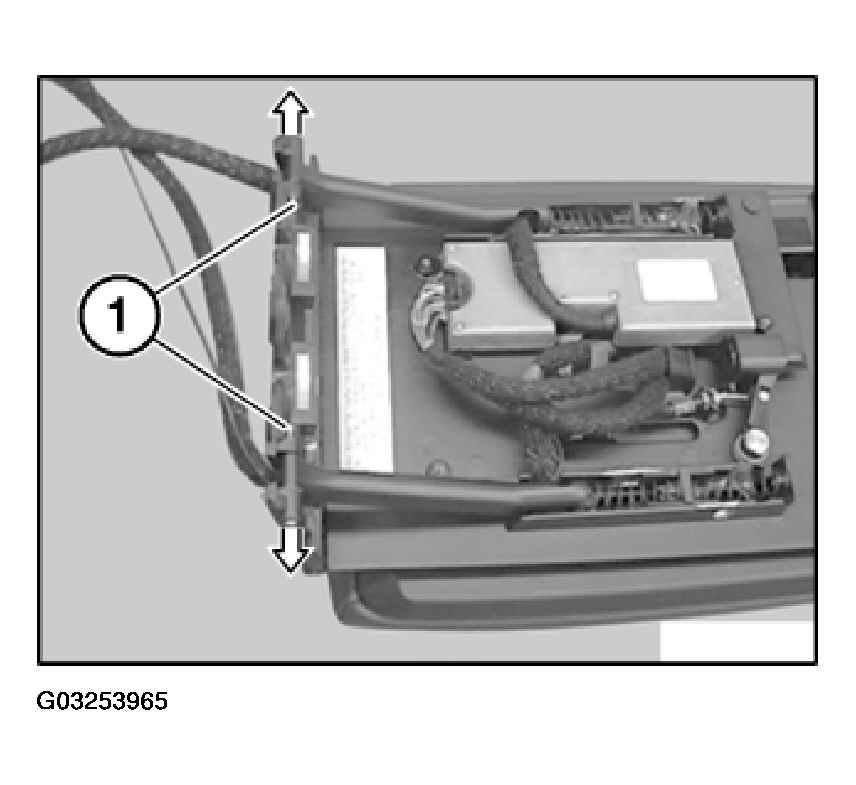

Fig 4: Driving Out Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

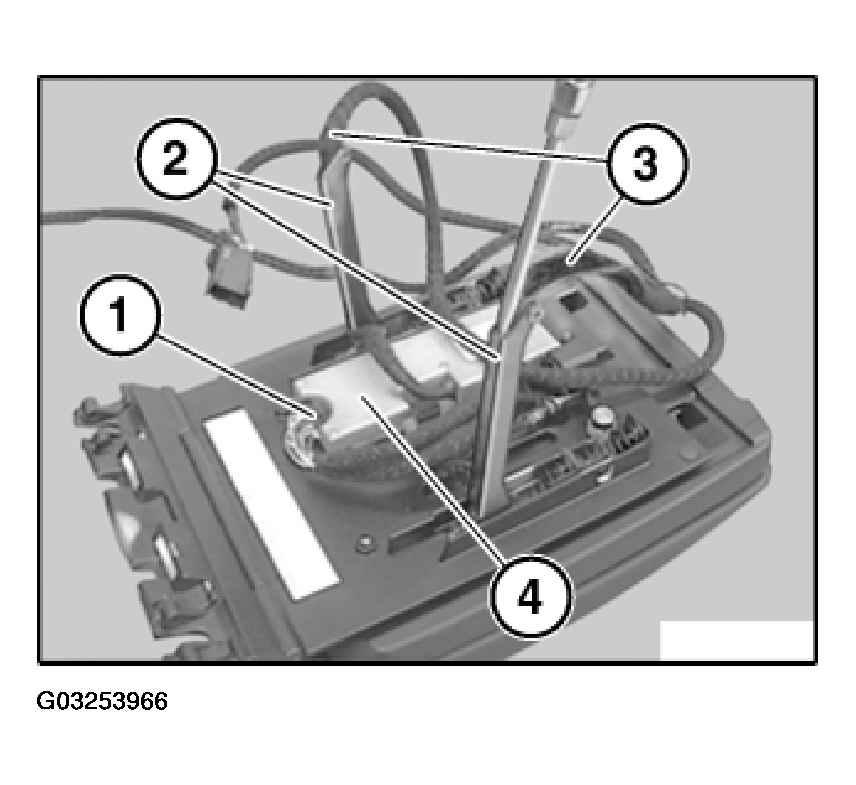

Fig 5: Removing Interface For Telephone

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out covers (2) and feed out wiring harness (3).

Remove interface for telephone (4).

Installation:

Ensure correct cable routing.

Move function carrier in direction of arrow as far as it will go.

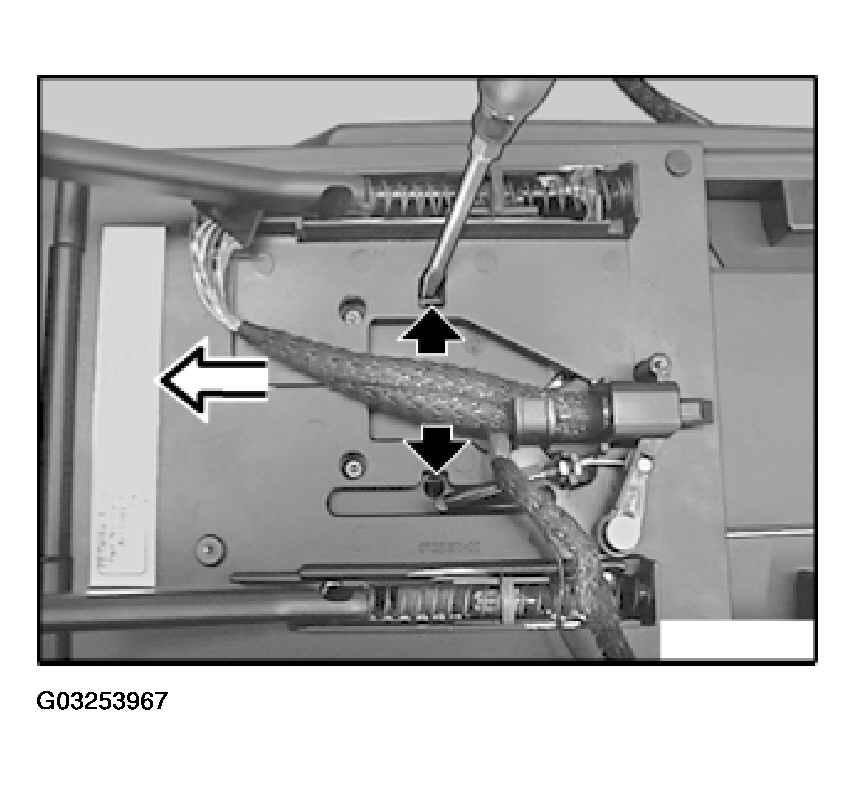

Fig 6: Unlocking Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining hook.

Remove connecting cable for telephone from guides.

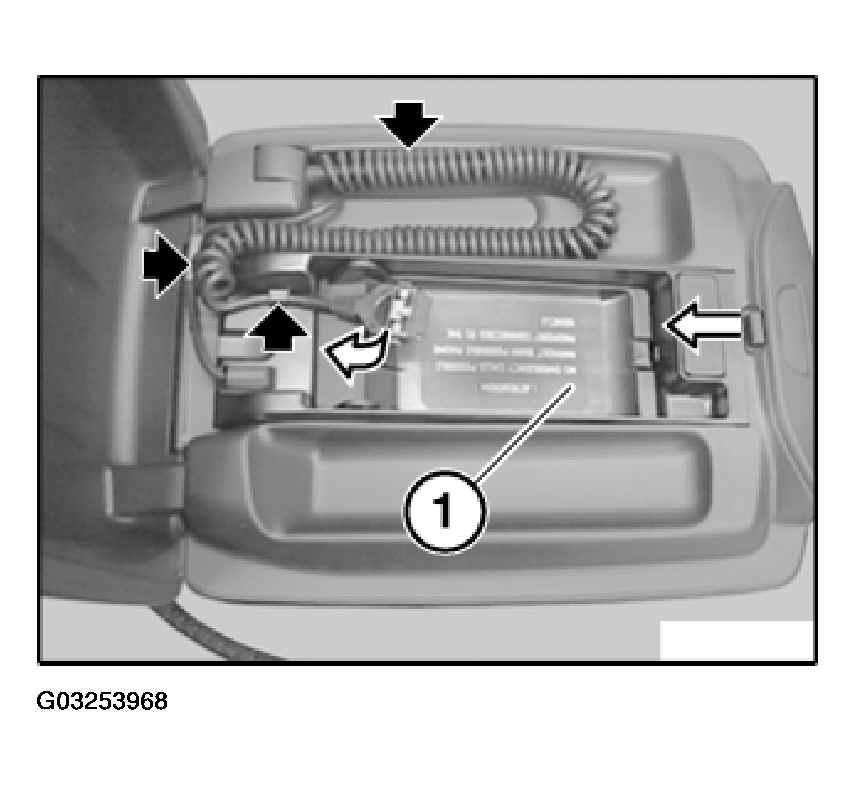

Fig 7: Removing Eject Box

Courtesy of BMW OF NORTH AMERICA, INC.

Move eject box (1) in direction of arrow and remove.
