84 50 050 Removing and installing / replacing basic antenna
WARNING: This page is about a different variant/trim than selected.
Remove flap in luggage compartment trim panel on left. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .
Remove warning triangle.

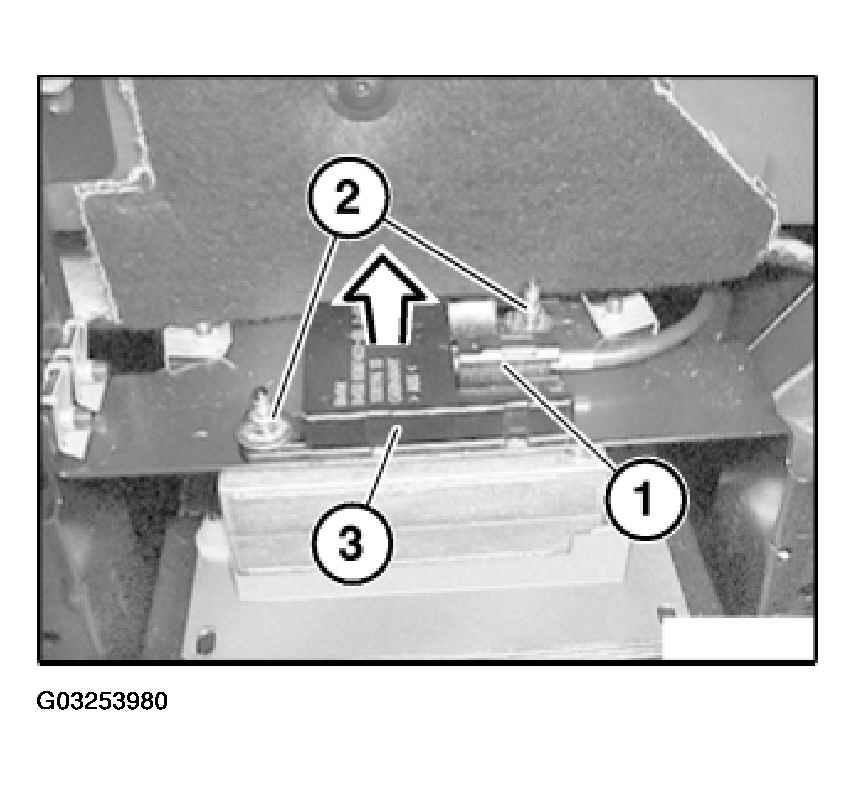

Unlock plug connection (1) and disconnect.
Release cap nuts (2).
Remove basic antenna (3) in direction of arrow.
Installation:
Replace cap nuts (2).
