11 23 031 Removing and installing/replacing hub for vibration damper (M62): Installation

WARNING: This page is about a different variant/trim than selected.

Align groove in hub for vibration damper to featherkey.

Install hub (1) for vibration damper.

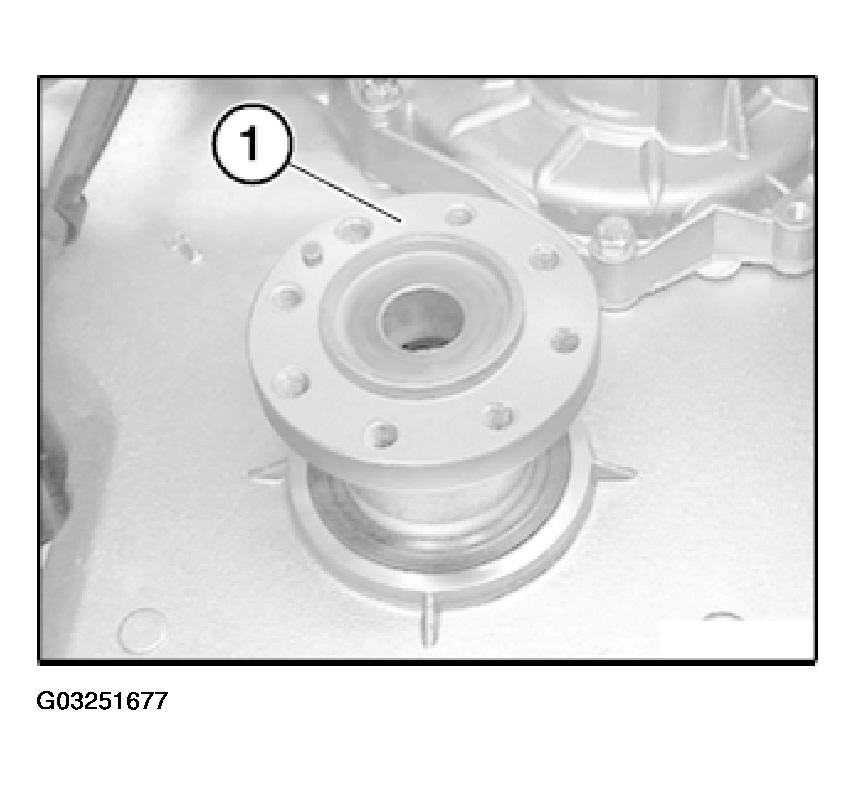

Fig 1: Installing Hub For Vibration Damper

G03251677

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Lines on oil-water heat exchanger and water hoses remain connected.

Release screw (1) and expansion rivet (2), remove mounting plate with oil-water heat exchanger from radiator.

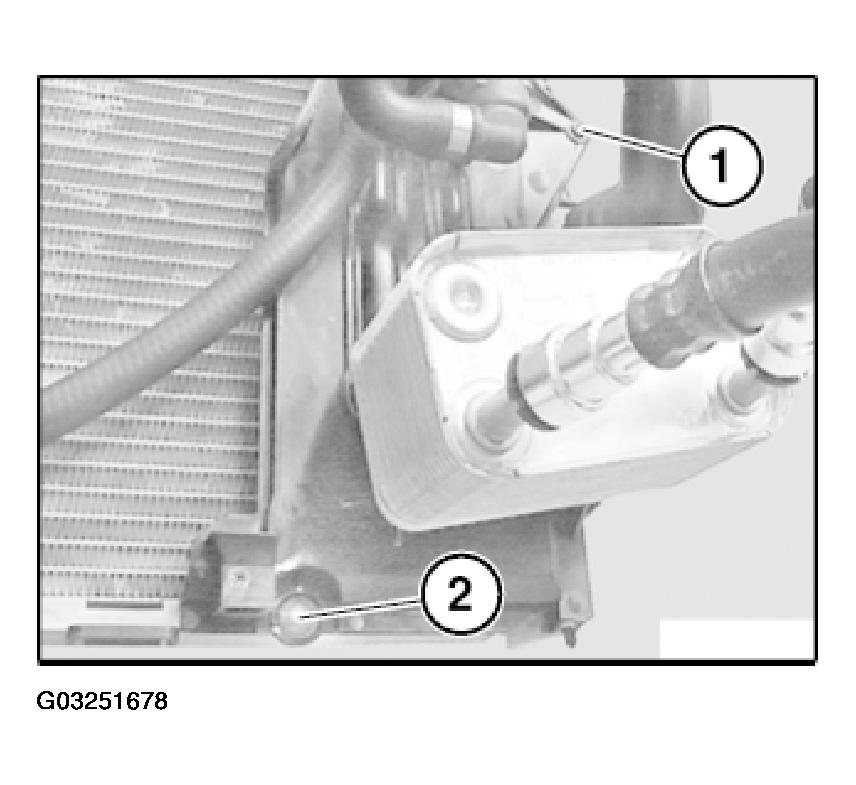

Fig 2: Identifying Screw And Expansion Rivet

G03251678

Courtesy of BMW OF NORTH AMERICA, INC.

Replace central screw.

Crank engine at central bolt and align dowel pin (1) to bore in special tool 11 2 450.

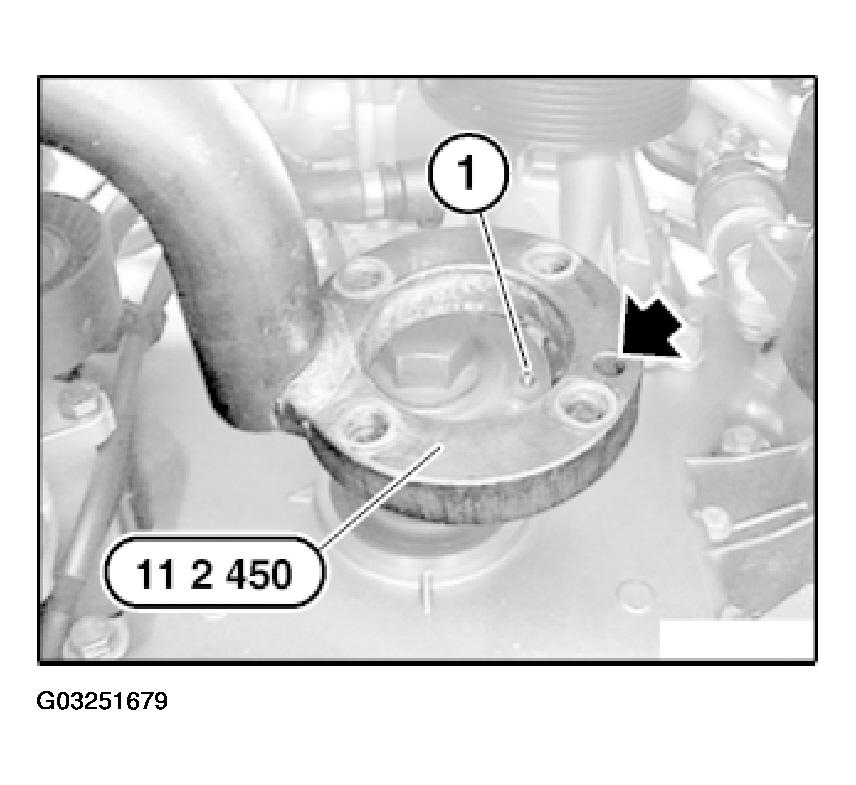

Fig 3: Aligning Dowel Pin In Special Tool 11 2 450 Bore

G03251679

Courtesy of BMW OF NORTH AMERICA, INC.

Pull mounting plate downwards as far as water hoses permit.

Feed in special tool 11 2 450 between oil-water heat exchanger (1) and engine carrier.

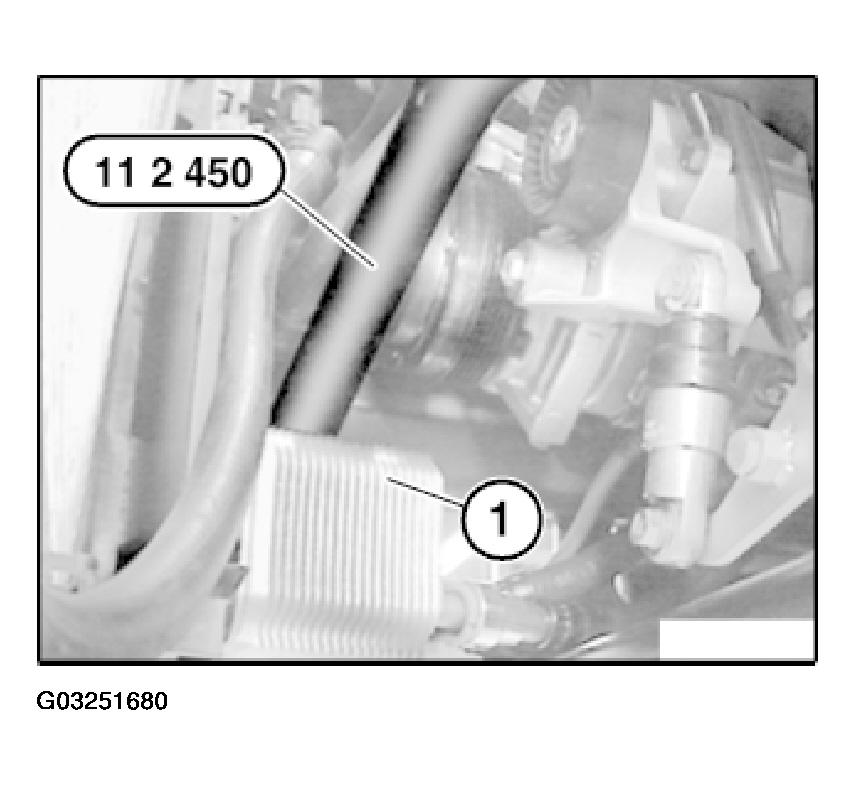

Fig 4: Feeding Special Tool 11 2 450 Between Oil-Water Heat Exchanger And Engine Carrier

G03251680

Courtesy of BMW OF NORTH AMERICA, INC.

Screw down special tool 11 2 450 with hub for vibration damper.

NOTE: Protect engine bracket from damage. Insert wood between engine support and special tool 11 2 450.
Tighten down central bolt (1) to joining torque.
Tightening torque,
refer to 11 23 2AZ in ENGINE - TIGHTENING TORQUES

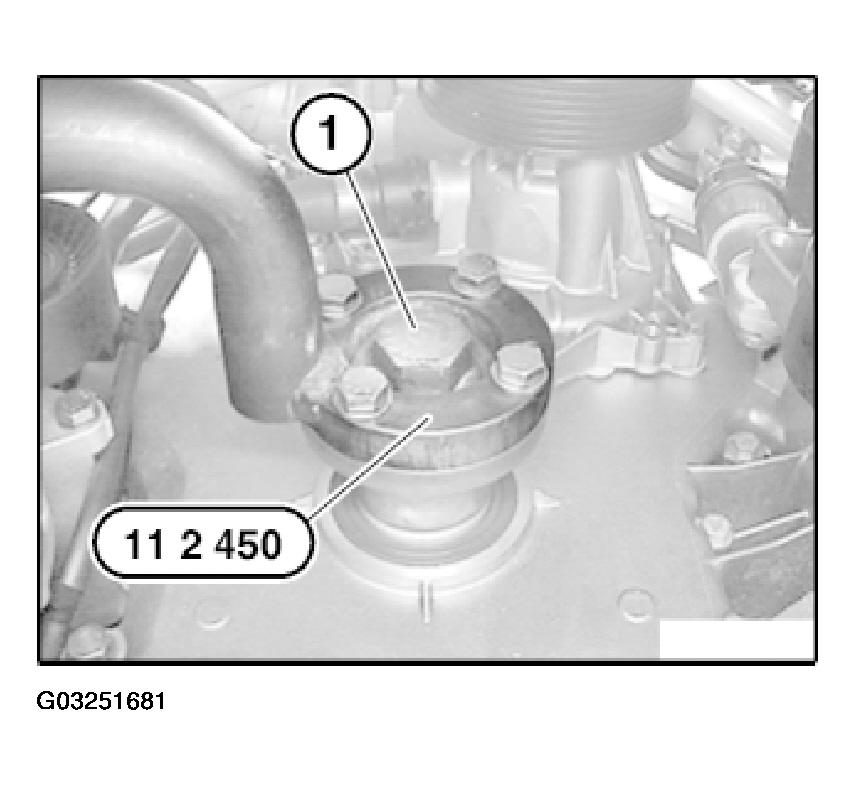

Fig 5: Tightening Central Bolt To Joining Torque

G03251681

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 3 460 on special tool 11 2 450.

NOTE: Special tool 11 3 460 is magnetic.

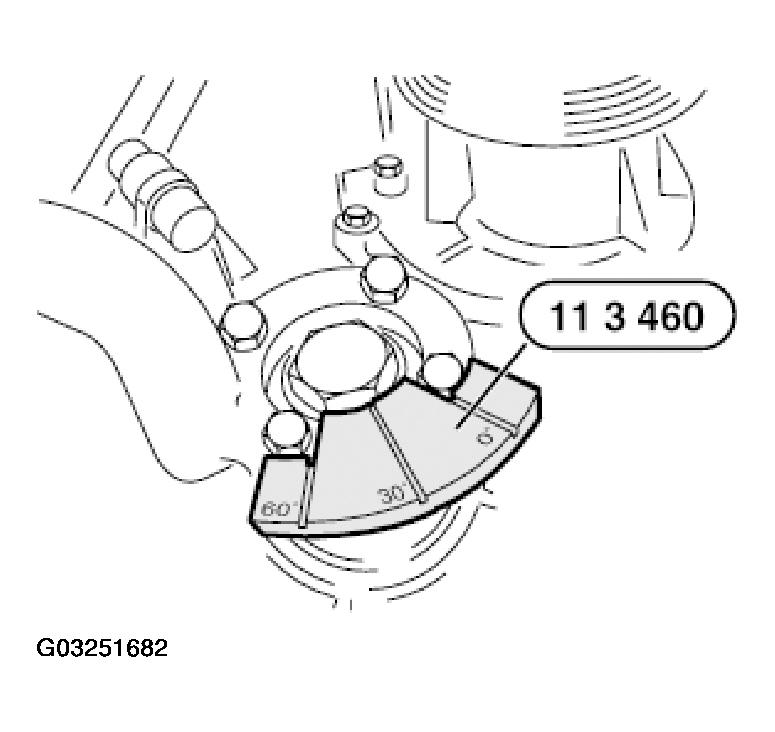

Fig 6: Placing Special Tool 11 3 460

G03251682

Courtesy of BMW OF NORTH AMERICA, INC.

Select 0° location and mark on insertion nut. Tighten the central screw with torsion angle.

Tightening torque,

refer to 11 23 2AZ in ENGINE - TIGHTENING TORQUES

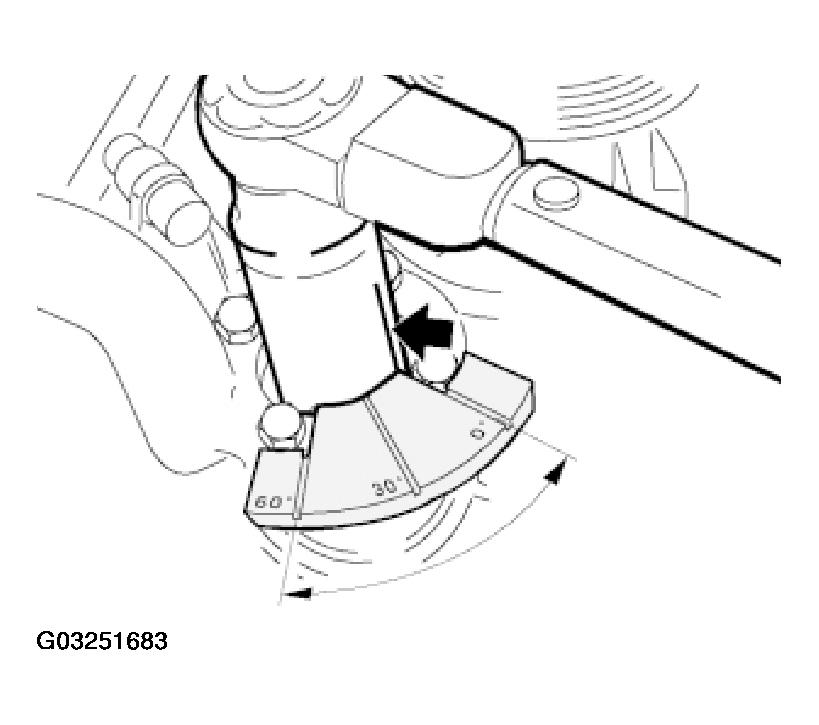

Fig 7: Tightening Central Screw With Torsion Angle

G03251683

Courtesy of BMW OF NORTH AMERICA, INC.
