11 23 010 Removing and installing/replacing vibration damper (M62): Notes
WARNING: This page is about a different variant/trim than selected.
Unscrew and remove splash guard.
Remove alternator drive belt,
refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (M62)
Remove drive belt for a/c compressor,
refer to 11 28 050 REPLACING DRIVE BELT FOR A/C COMPRESSOR (M60 / M62 / M73)

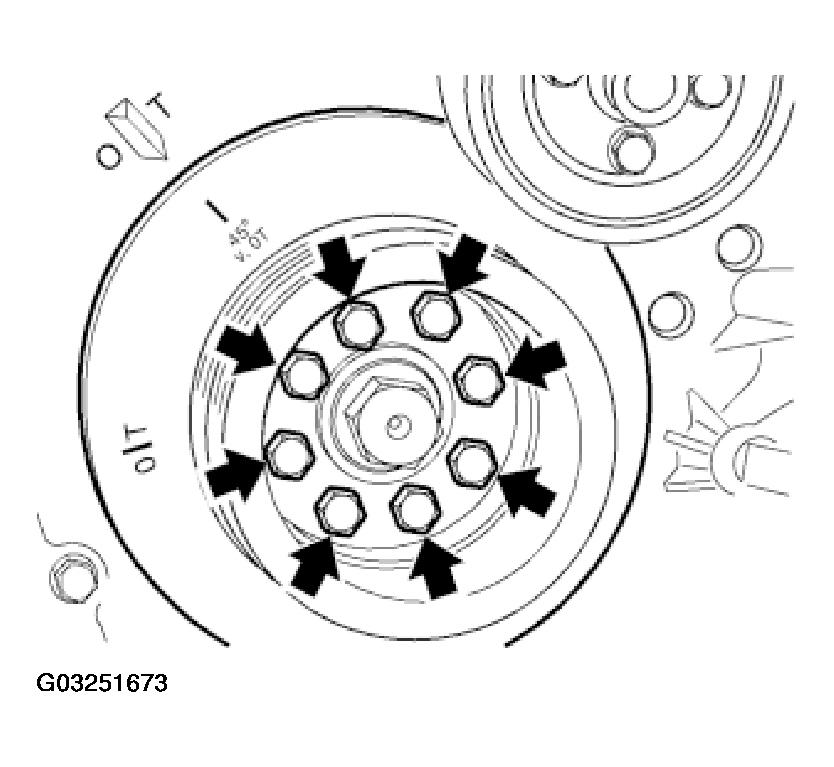

Release screws and remove vibration damper.
