11 23 010 Removing and installing/replacing vibration damper (M62): Installation

WARNING: This page is about a different variant/trim than selected.

The vibration damper is located with a dowel pin. Replace screws.

Tightening torque,

refer to 11 23 3AZ in ENGINE - TIGHTENING TORQUES

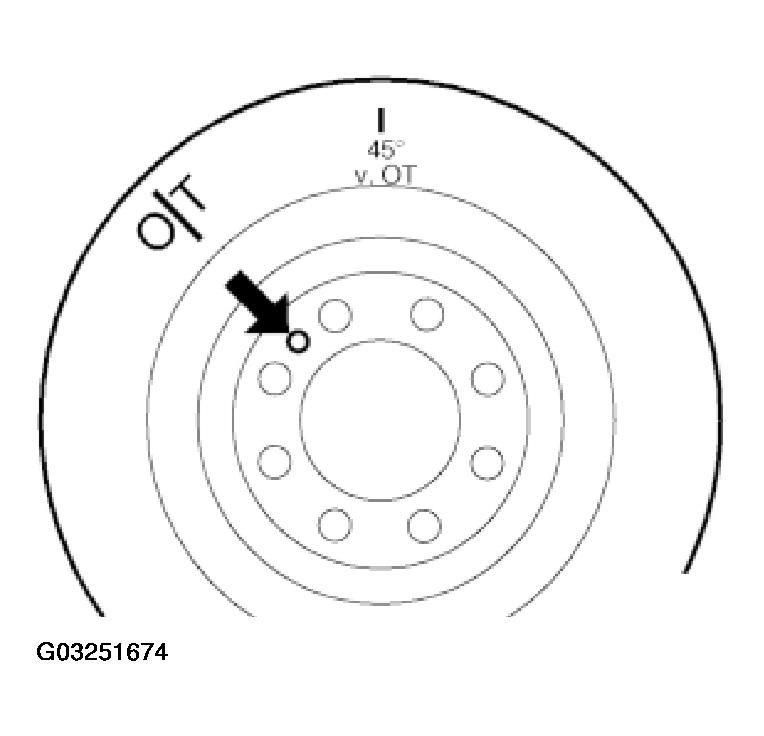

Fig 1: Identifying Vibration Damper Dowel Pin Location
G03251674Courtesy of BMW OF NORTH AMERICA, INC.
