11 36 630 Removing and installing/replacing distributor on left camshaft adjustment unit (M62 VANOS from 9/98): Installation

WARNING: This page is about a different variant/trim than selected.

If necessary, replace seal (three plain compression rings).

Carefully pull compression ring (1) apart and install.

Press compression ring (1) upwards as far as possible and install catch.

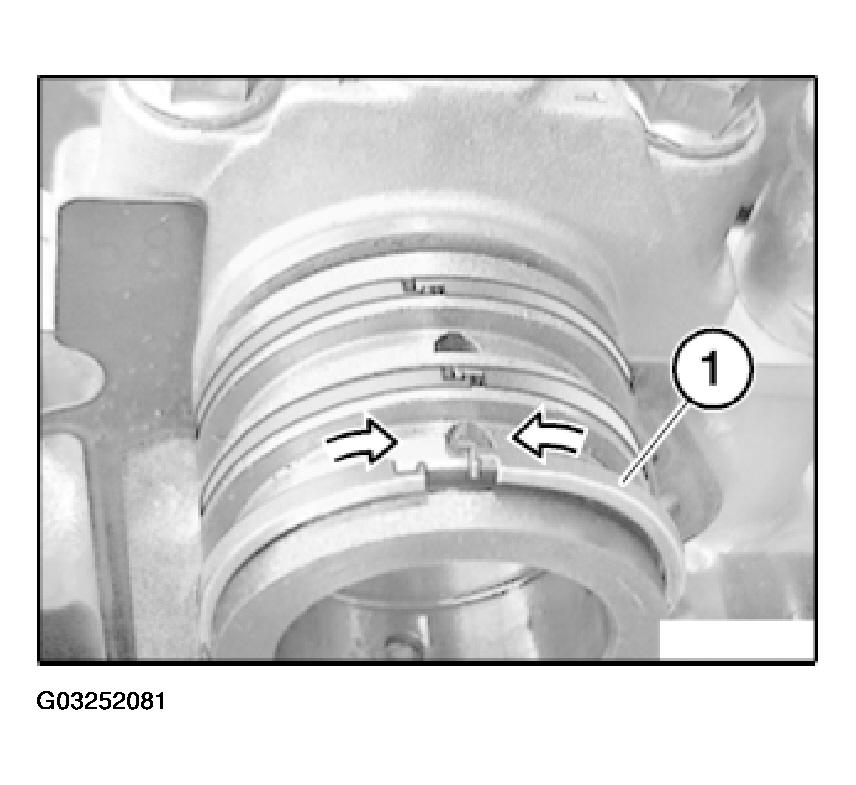

Fig 1: Installing Compression Ring
G03252081Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The gasket is secured in a groove on the camshaft bearing cover and over the non-return valve (1).
The non-return valve (1) is "inserted" in the cylinder head and can fall out if the gasket is not fed out carefully.

Carefully feed out gasket.

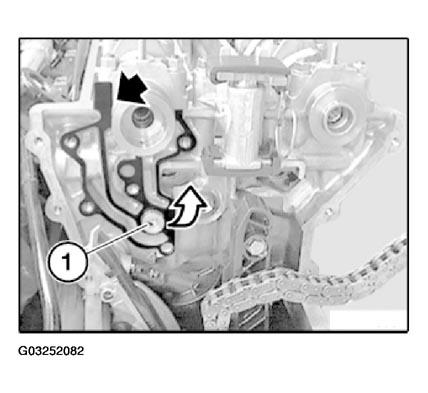

Fig 2: Feeding Out Gasket In Groove On Camshaft Bearing Cover And Over Non-Return Valve
G03252082Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove non-return valve.

Insert commercially available screw with M10x1 thread or special tool 13 5 132 as and extraction aid by hand in nonreturn valve (1) and carefully remove.

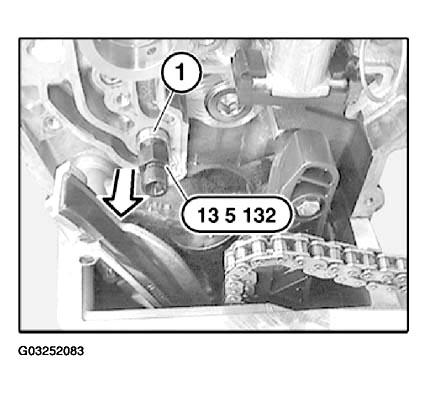

Fig 3: Removing Non-Return Valve Using Special Tool 13 5 132
G03252083Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring (1) on non-return valve.

CAUTION: Check installed direction.
An incorrectly installed non-return valve will result in engine damage.

Install non-return valve with M10x1 thread facing outwards.

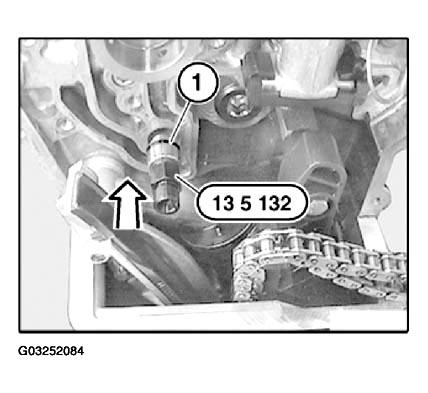

Fig 4: Identifying Sealing Ring On Non-Return Valve
G03252084Courtesy of BMW OF NORTH AMERICA, INC.

Installation of the camshaft adjustment unit distributor is described separately from removal.

Check correct installation position of non-return valve (1).

Feed in new gasket so that it is secured in groove on camshaft bearing cover and over non-return valve (1).

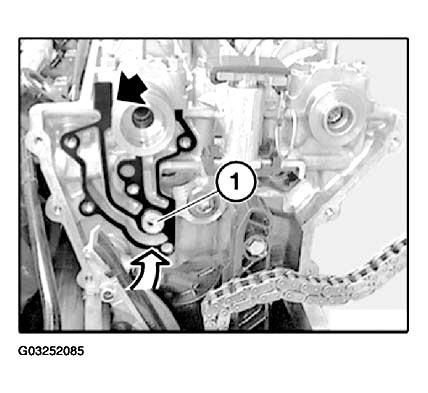

Fig 5: Feeding In New Gasket In Groove On Camshaft Bearing Cover And Over Non-Return Valve
G03252085Courtesy of BMW OF NORTH AMERICA, INC.

Make sure that contact points on plain compression rings snap into place.

Align contact points of compression rings upwards.

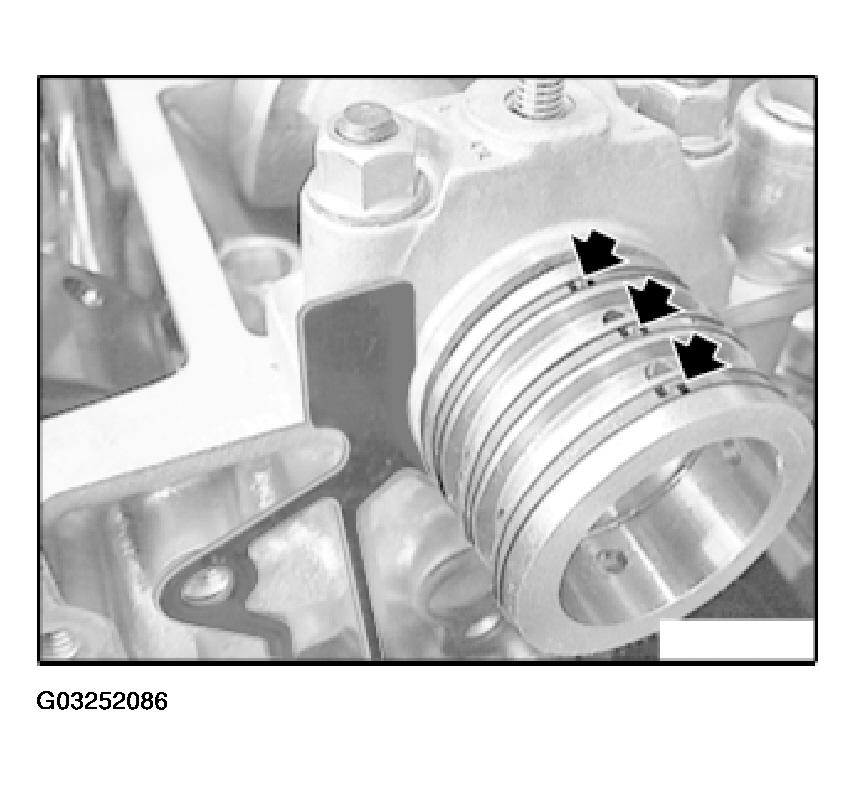

Fig 6: Aligning Contact Points Of Compression Rings Upwards
G03252086Courtesy of BMW OF NORTH AMERICA, INC.

Make sure that gasket is secured in groove on camshaft bearing cover.

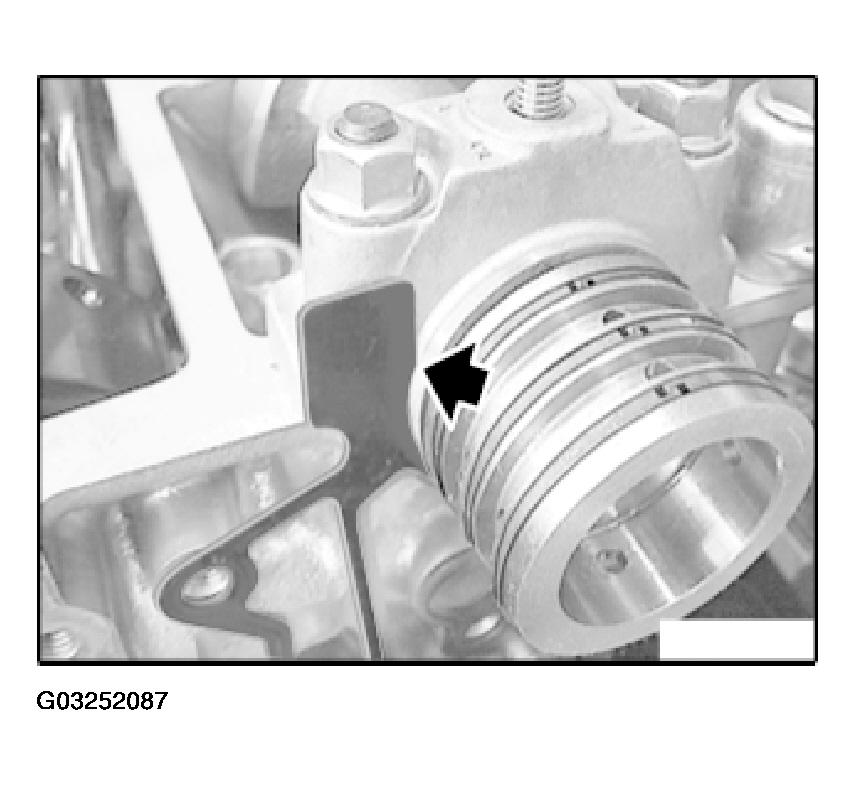

Fig 7: Identifying Gasket Is Secured In Groove On Camshaft Bearing Cover
G03252087Courtesy of BMW OF NORTH AMERICA, INC.

Apply a light coat of oil to camshaft adjustment unit distributor and plain compression rings.

Carefully push on camshaft adjustment unit distributor so that it is straight.

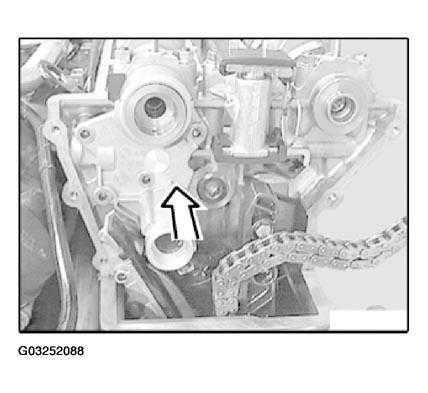

Fig 8: Pushing On Camshaft Adjustment Unit Distributor
G03252088Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Only screw (1) with sealing ring.

Replace sealing ring on screw (1).

Install and tighten down screws.

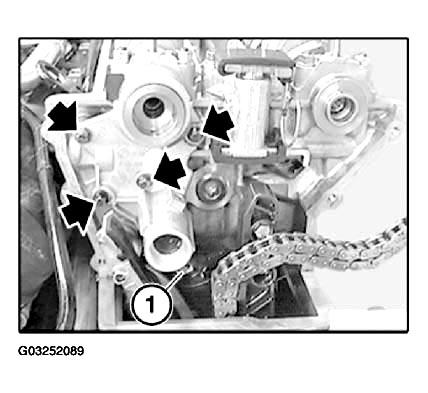

Fig 9: Replacing Sealing Ring On Screw
G03252089Courtesy of BMW OF NORTH AMERICA, INC.

Feed timing chain (1) onto camshaft adjustment unit distributor.

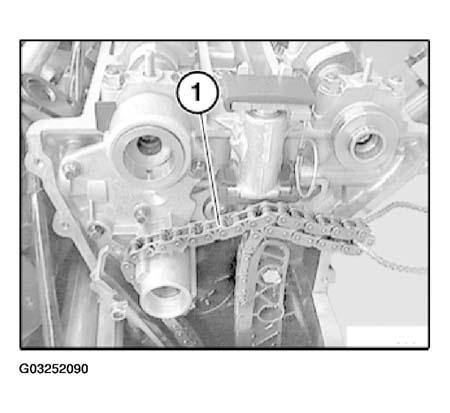

Fig 10: Feeding Timing Chain Onto Camshaft Adjustment Unit Distributor
G03252090Courtesy of BMW OF NORTH AMERICA, INC.

Install left camshaft adjustment unit,

refer to 11 36 610 REMOVING AND INSTALLING/REPLACING LEFT CAMSHAFT ADJUSTMENT UNIT (M62 VANOS FROM 9/98) .

Assemble engine.
