11 28 010 Replacing alternator drive belt (M62): Notes

WARNING: This page is about a different variant/trim than selected.

NOTE: If the drive belt is to be subsequently reused:
Mark direction of travel and reinstall drive belt in same direction of travel.

Layout of drive belt.

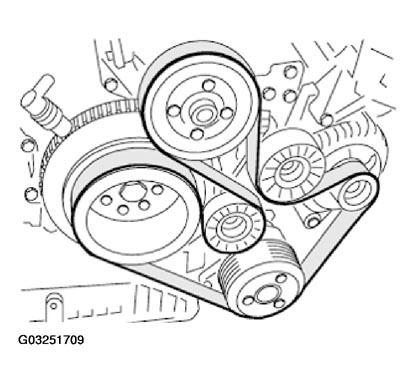

Fig 1: Layout Of Drive Belts

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1) and relieve tension on belt drive.

NOTE: Release screws (1 and 2) to remove complete belt tensioner.

Remove drive belt.

CAUTION: You must replace the drive belt if it is contaminated with hydraulic fluid.

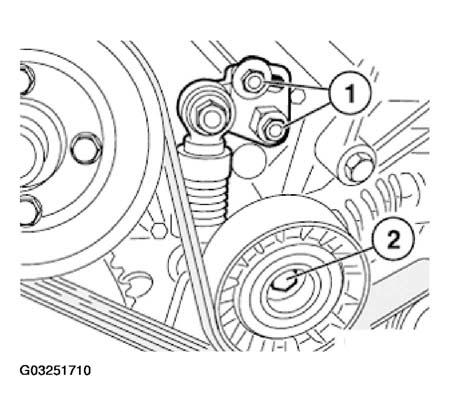

Fig 2: Identifying Complete Belt Tensioner Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.
