11 22 510 Removing and installing/replacing flywheel (M62): Notes

WARNING: This page is about a different variant/trim than selected.

(Transmission removed)

CAUTION: Whenever the flywheel is replaced, the impulse sensor must be reset,
refer to 12 14 520

Block the flywheel using special tool 11 2 070.

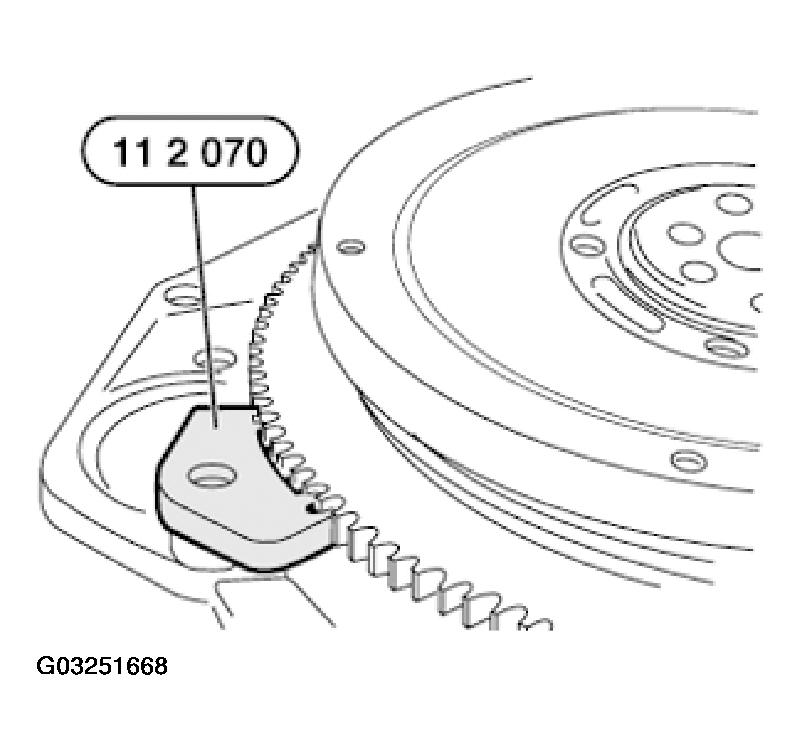

Fig 1: Blocking Flywheel Using Special Tool 11 2 070

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten flywheel screws.

Remove drive plate (1).

Remove flywheel (2).

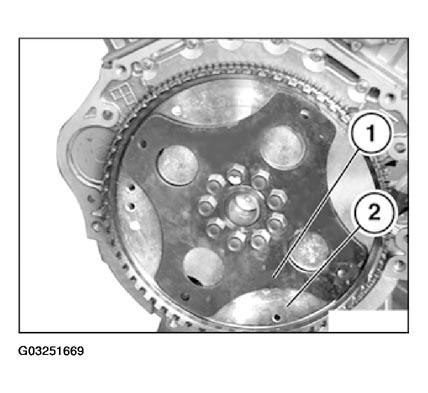

Fig 2: Identifying Drive Plate And Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Clean threads on flywheel screws in crankshaft.

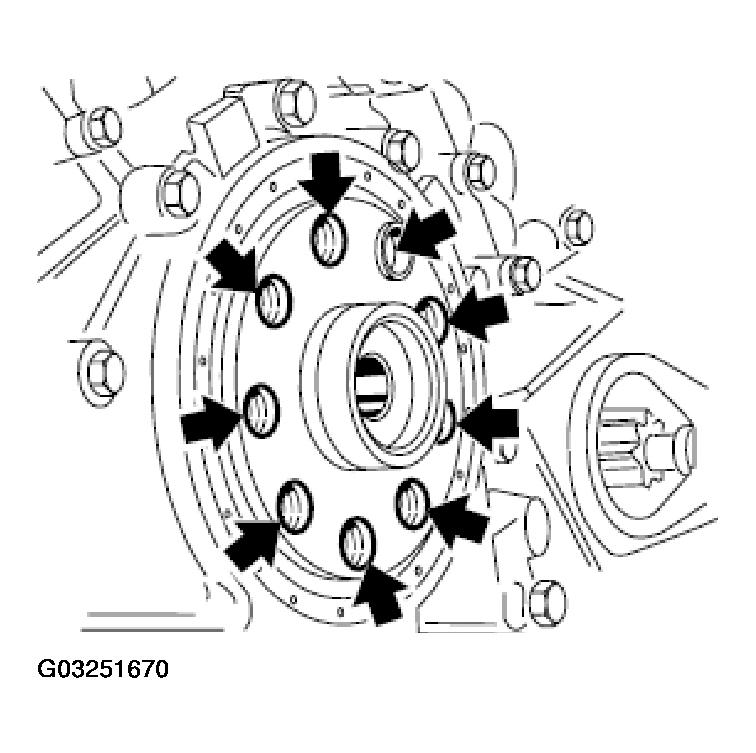

Fig 3: Identifying Flywheel Threads

Courtesy of BMW OF NORTH AMERICA, INC.
