11 22 510 Removing and installing/replacing flywheel (M62): Installation

WARNING: This page is about a different variant/trim than selected.

The flywheel is secured with a dowel sleeve.

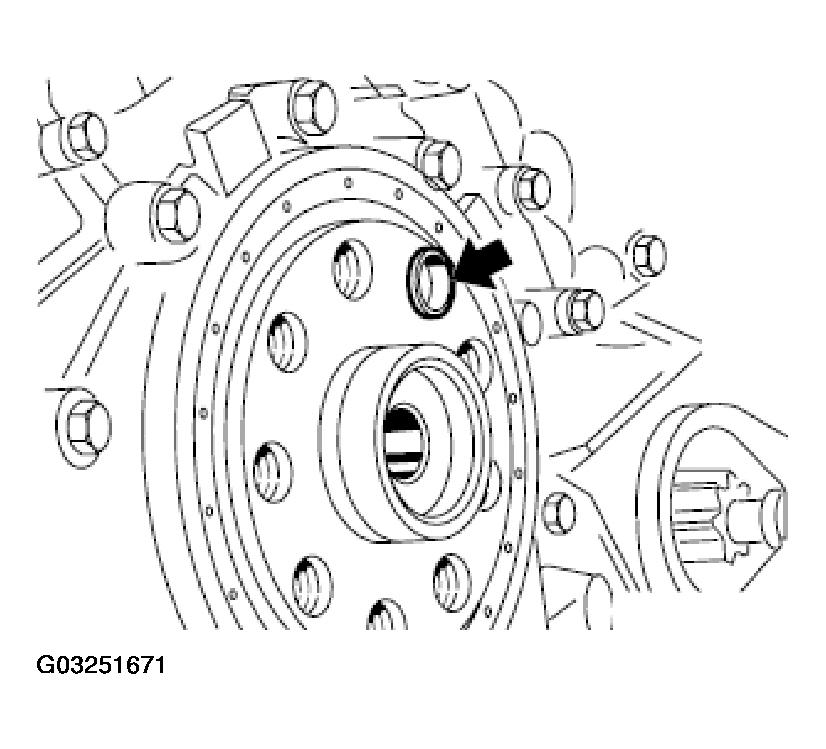

Fig 1: Identifying Flywheel Is Secured With Dowel Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Fit flywheel (2) and mount drive plate (1) for torque converter correctly. Holes in drive plate (1) and flywheel (2) must be aligned over one another.

Fit new flywheel screws.

Tightening torque,

refer to 11 22 1AZ in ENGINE - TIGHTENING TORQUES

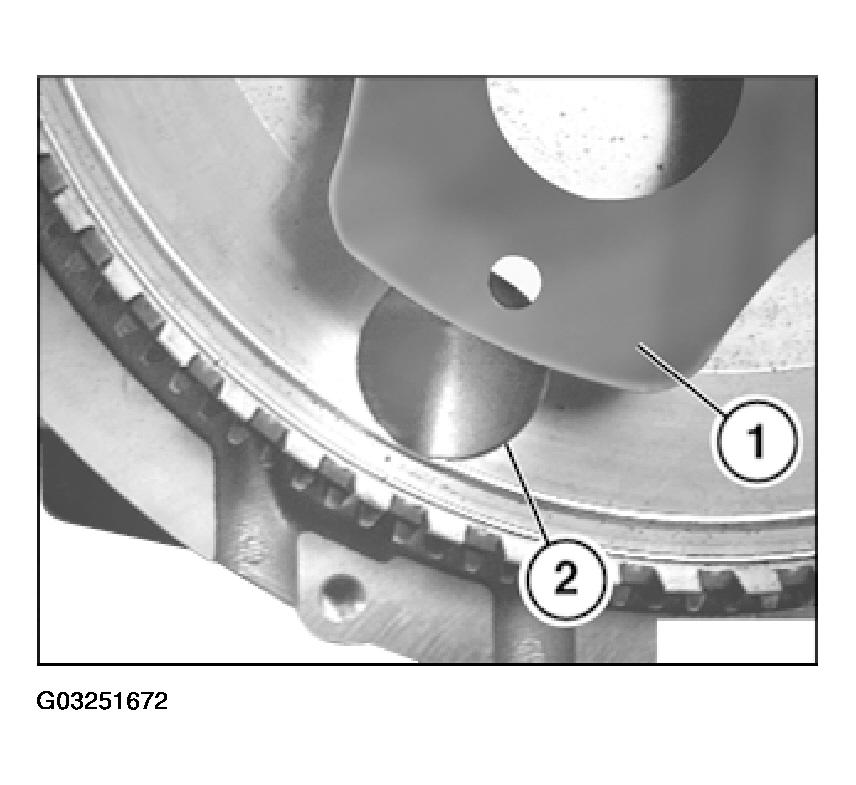

Fig 2: Fitting Flywheel And Mount Drive Plate

Courtesy of BMW OF NORTH AMERICA, INC.
