11 22 500 Removing and installing/replacing flywheel (M62 / S62): Notes

WARNING: This page is about a different variant/trim than selected.

(clutch removed)

CAUTION: Once the flywheel has been replaced, the pulse generator must be reset,
refer to 12 14 521 REPLACING PULSE GENERATOR (M62) .

Block flywheel with special tool 11 2 070.

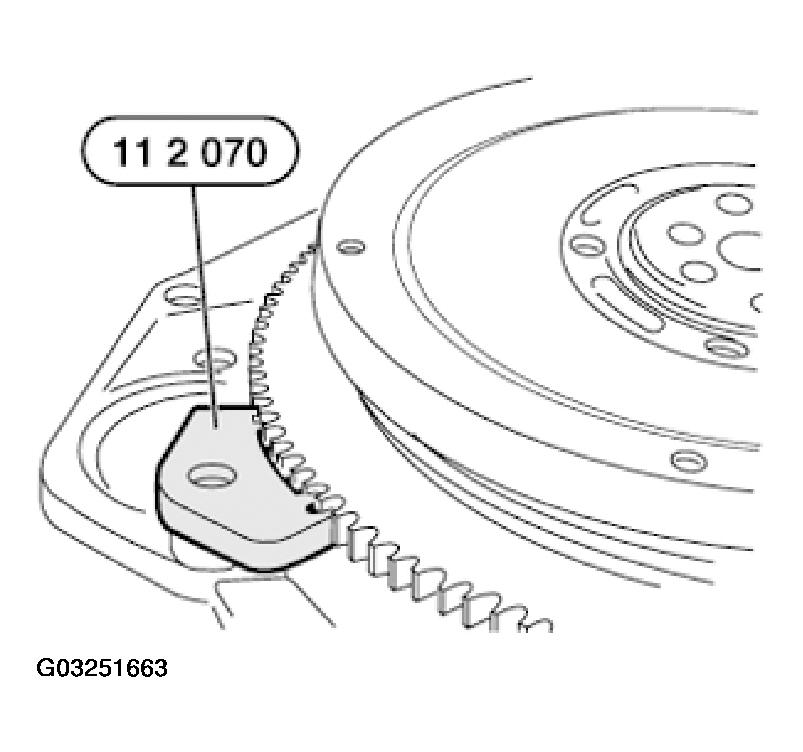

Fig 1: Blocking Flywheel With Special Tool 11 2 070

Courtesy of BMW OF NORTH AMERICA, INC.

Release and tighten the flywheel (ZMS) only with special tool 11 4 180.
