11 52 020 Removing and installing or replacing fan coupling (M62): Installation

WARNING: This page is about a different variant/trim than selected.

Tighten down fan wheel using special tool 11 5 040.

For tightening torque, see 11 52 1AZ in ENGINE - TIGHTENING TORQUES

NOTE: When using special tool 11 5 040, 30 N.m on the torque wrench scale are equivalent to a tightening torque of 40 N.m.

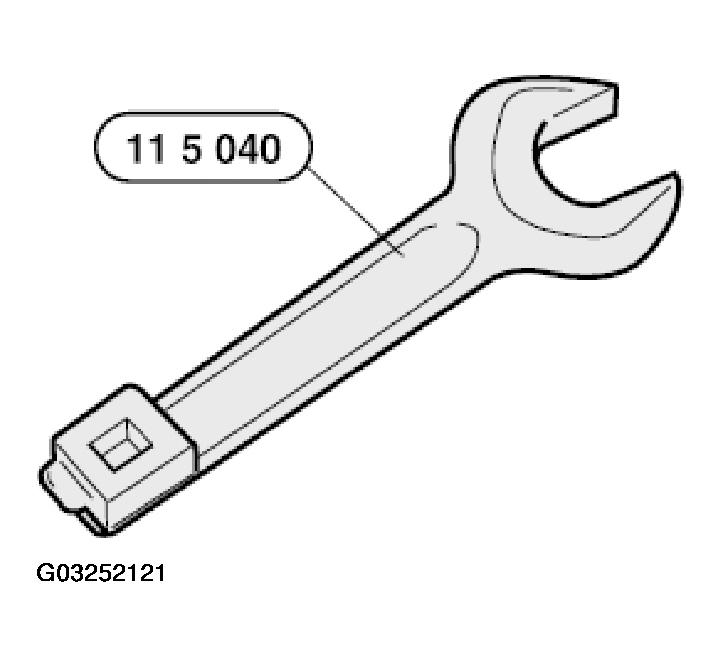

Fig 1: Identifying Special Tool 11 5 040

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and detach fan from fan coupling.

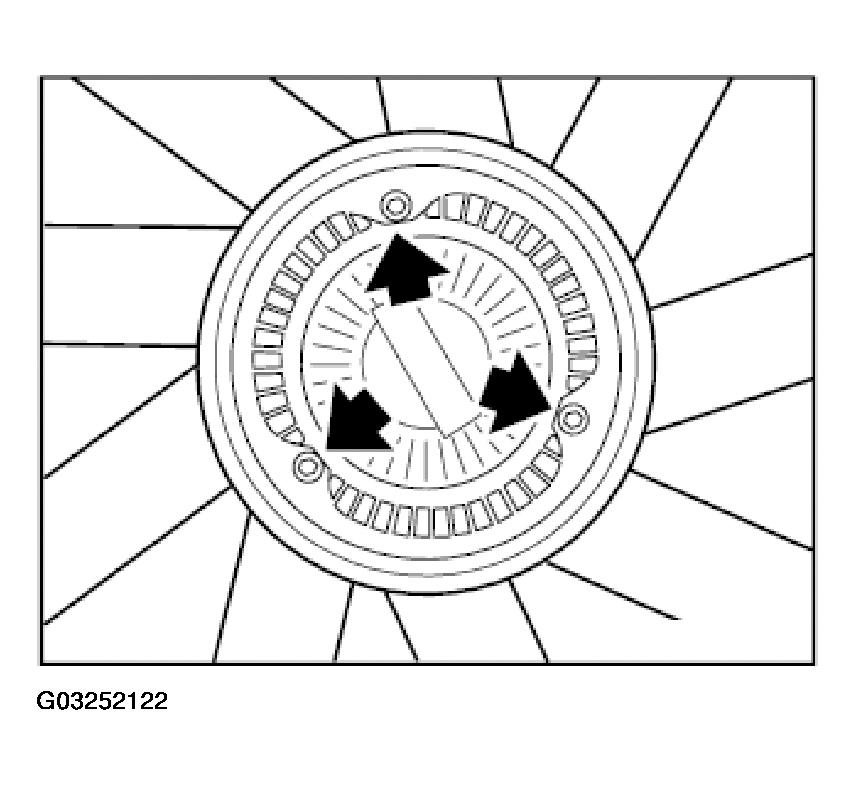

Fig 2: Detaching Fan From Fan Coupling

Courtesy of BMW OF NORTH AMERICA, INC.
