00 00 249 BMW engine oil service (M60 / M62 / M73): Installation

Tightening torque, refer to 11 42 2AZ in ENGINE - TIGHTENING TORQUES .

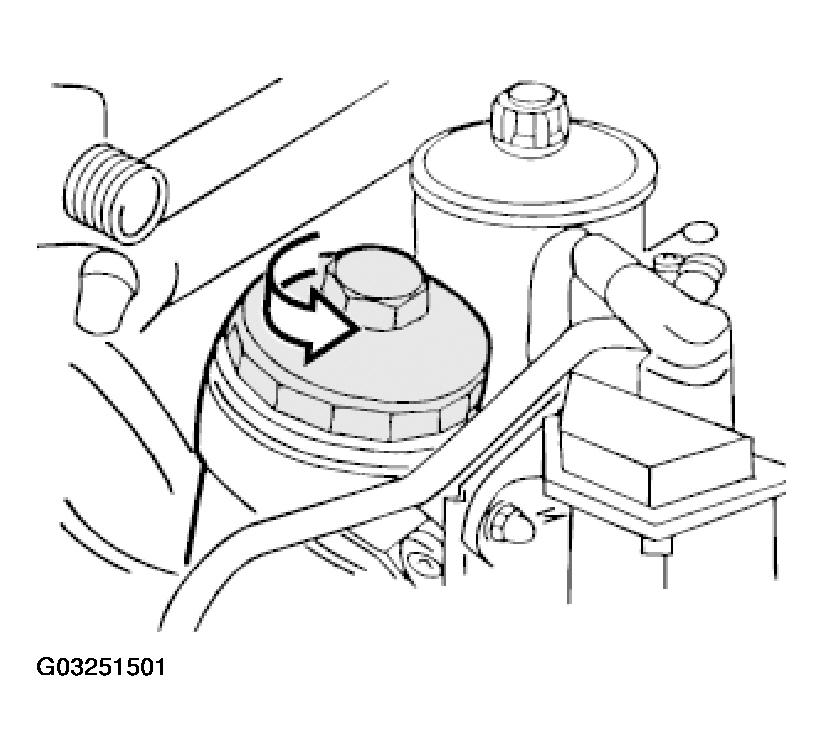

Fig 1: Removing Main Flow Oil Filter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove oil filter from oil filter cover.

Note direction of installation of oil filter insert.

Oil filter insert must locate in oil filter cover.

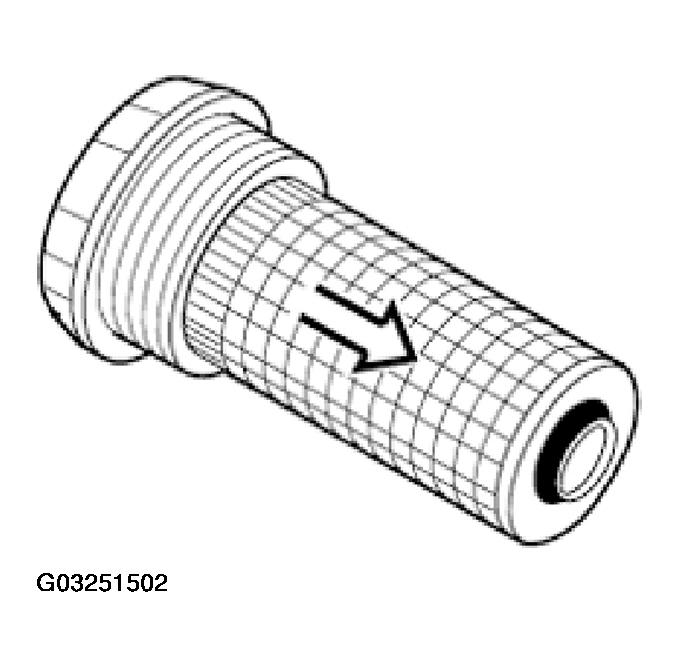

Fig 2: Removing Oil Filter From Oil Filter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring and coat with oil.

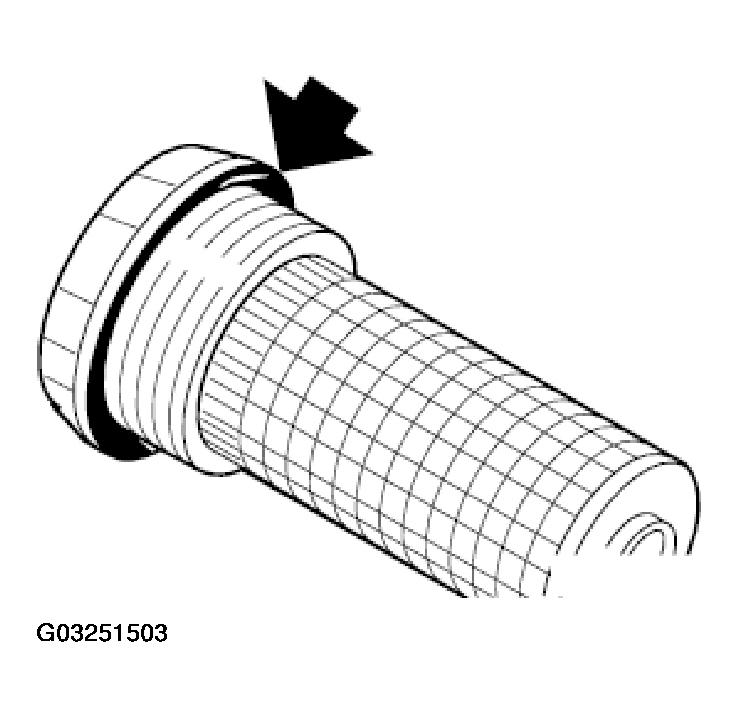

Fig 3: Replacing Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

After draining oil from oil-filter housing, unscrew oil drain plug or draw out oil with a vacuum unit.

Replace sealing ring.

Tightening torque, refer to 11 13 1AZ in ENGINE - TIGHTENING TORQUES .

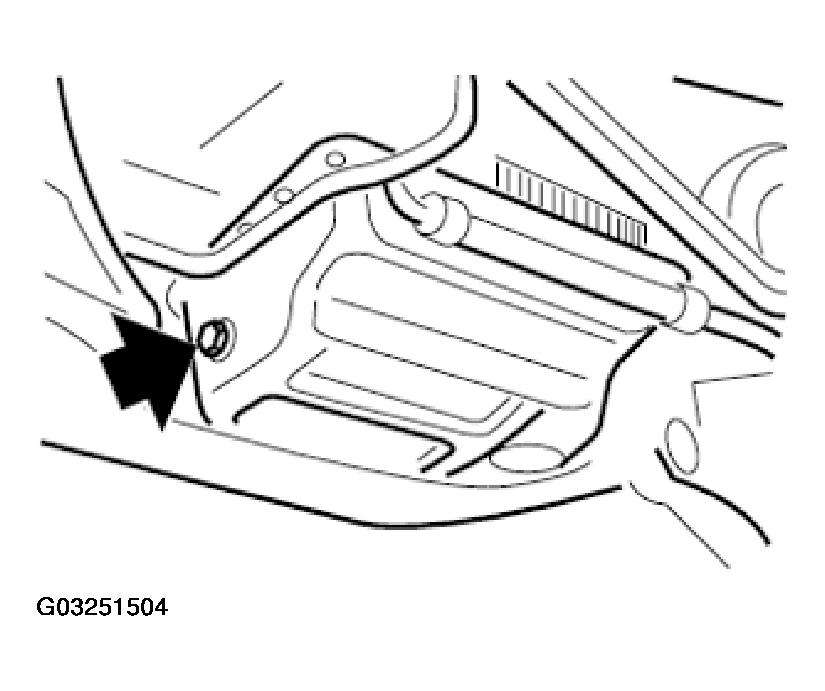

Fig 4: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Pour in engine oil.

Switch on engine and run at idle until oil indicator lamp goes out.

Stop engine and check oil level.
