11 78 530 Replacing Lambda control sensor, left (M62): Notes

Check function of digital engine electronics. See 13 00 002 CHECKING FUNCTION OF DIGITAL ENGINE ELECTRONICS .

Read out fault memory, clear if necessary.

Unclip Lambda control sensor cable from retainer.

Disconnect plug connection for Lambda control sensor.

Release Lambda control sensor with special tool 11 7 030.

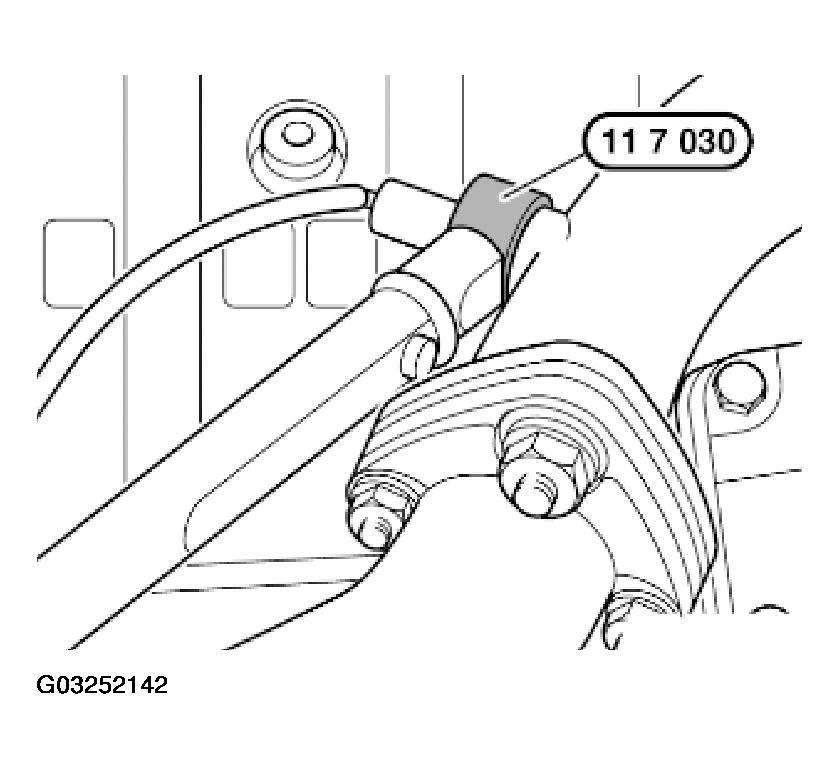

Fig 1: Releasing Lambda Control Sensor Using Special Tool 11 7 030 (Left)

Courtesy of BMW OF NORTH AMERICA, INC.
