11 12 105 Removing and installing left cylinder head (M62): Removal

Removal of cylinder head is described separately from installation.

Remove left camshaft adjustment unit,

refer to 11 36 610 REMOVING AND INSTALLING/REPLACING LEFT CAMSHAFT ADJUSTMENT UNIT (M62 VANOS FROM 9/98) .

Pull back special tool 11 5 180 until flywheel is no longer secured in place.

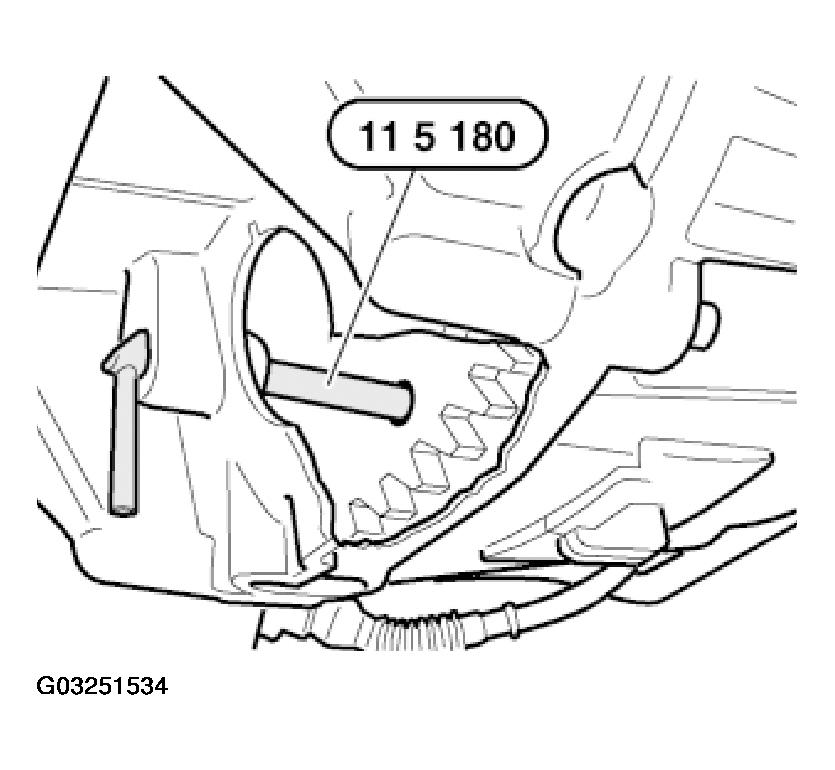

Fig 1: Pulling Back To Special Tool 11 5 180

Courtesy of BMW OF NORTH AMERICA, INC.

Lift timing chain and hold under tension.

Crank engine at central bolt against direction of rotation to 45° before TDC position.

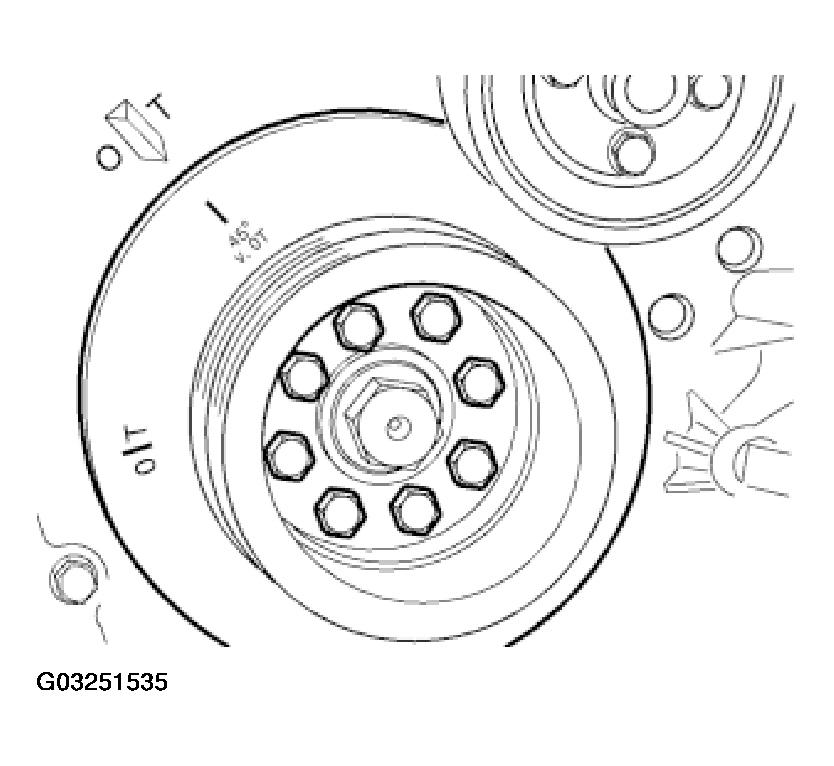

Fig 2: Identifying Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tools 11 2 444 / 443 / 442 / 446.

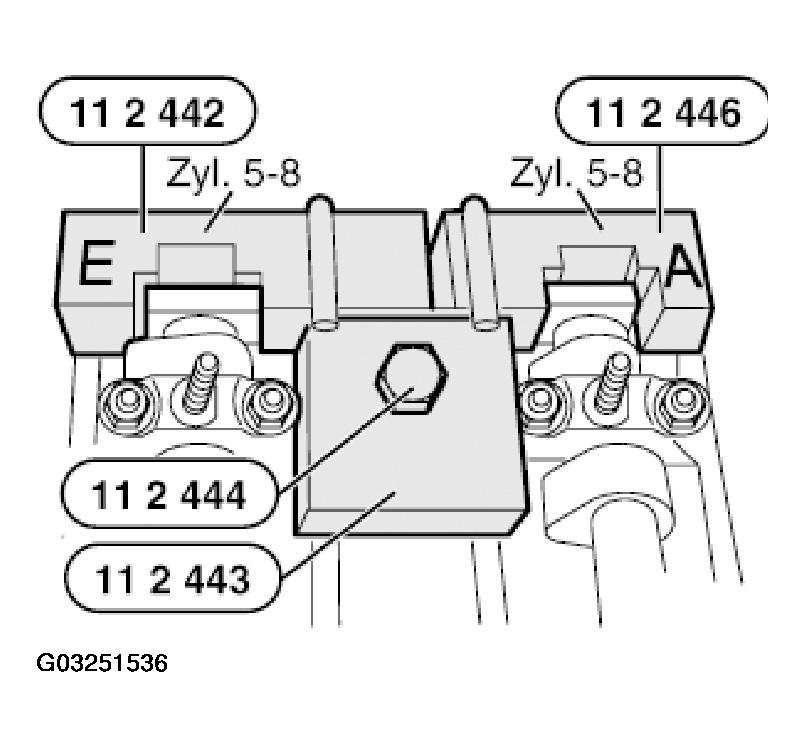

Fig 3: Removing Special Tools 11 2 444 / 443 / 442 / 446

Courtesy of BMW OF NORTH AMERICA, INC.

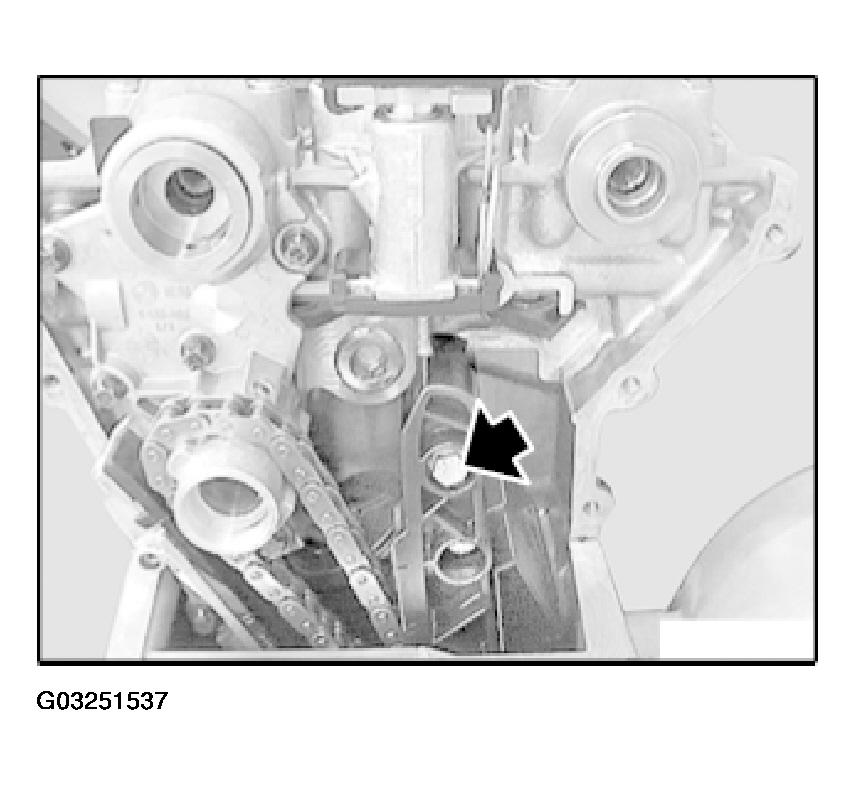

Detach guide rail from cylinder head.

Fig 4: Detaching Guide Rail From Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head bolts in sequence 10 to 1.

Lift off cylinder head.

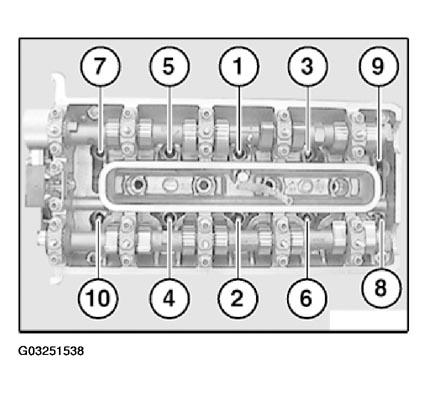

Fig 5: Identifying Cylinder Head Bolts Releasing Sequence

Courtesy of BMW OF NORTH AMERICA, INC.
