11 21 500 Replacing crankshaft (M62): Notes

WARNING: This page is about a different variant/trim than selected.

(engine removed)

Unscrew oil sump.

Remove oil pump.

Remove timing case cover at bottom,

refer to 11 14 110 REMOVING AND INSTALLING TIMING CASE COVER, BOTTOM (M62 VANOS FROM 9/98) .

Remove piston,

refer to 11 25 530 REMOVING AND INSTALLING / REPLACING ALL PISTONS (M62) .

Remove flywheel,

refer to 11 22 500 REMOVING AND INSTALLING/REPLACING FLYWHEEL (M62 / S62) / 11 22 510.

Remove rear end cover. This task is described in the section Replacing crankshaft radial seal,

refer to 11 14 151 REPLACING CRANKSHAFT RADIAL SEAL (M62/S62) .

Unfasten taper screw mount on main bearing. (Collar screws and spacer screws.)

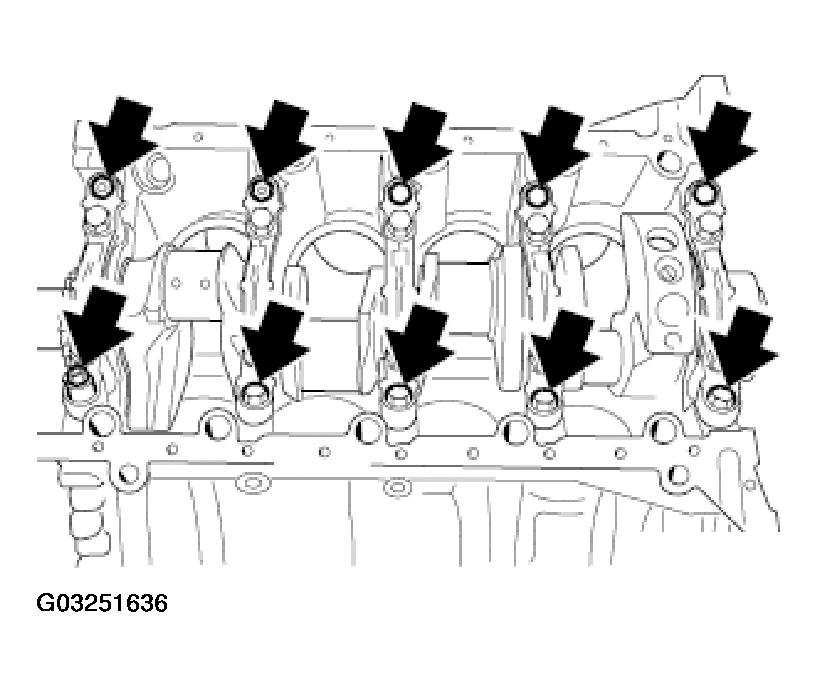

Fig 1: Unfastening Taper Screw Mounting On Main Bearing

G03251636

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws securing main bearing caps.

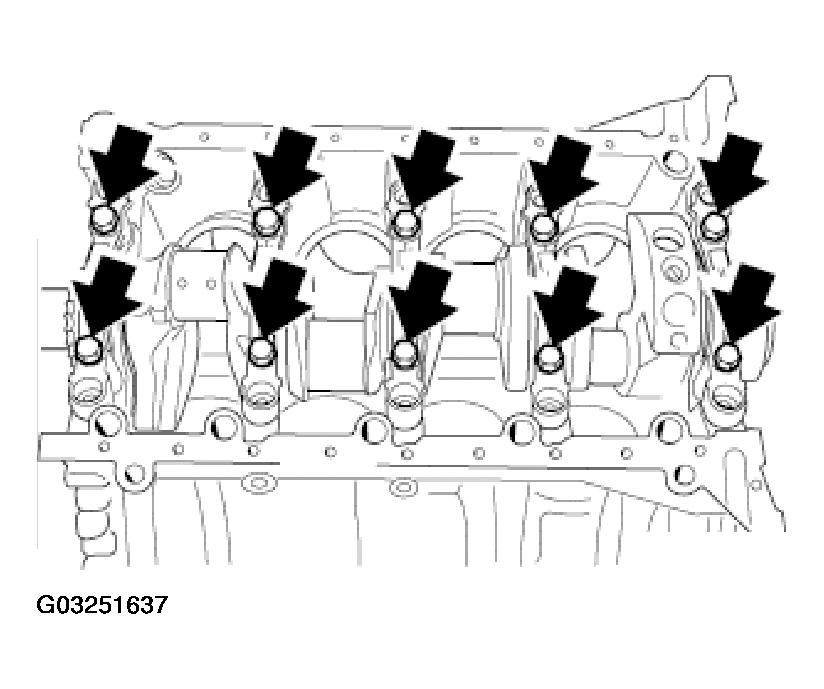

Fig 2: Removing Main Bearing Caps Securing Screws

G03251637

Courtesy of BMW OF NORTH AMERICA, INC.

Remove main bearing caps 1 to 5.

Lever out crankshaft.

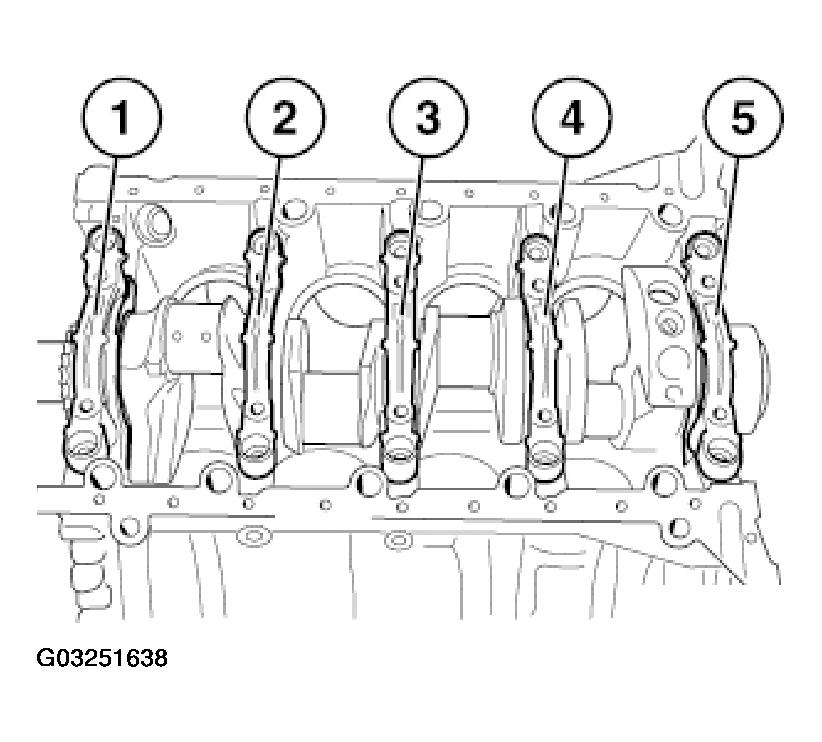

Fig 3: Removing Main Bearing Caps

G03251638

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Note grinding stage of crankshaft,

refer to ENGINE - TECHNICAL DATA - X5 .

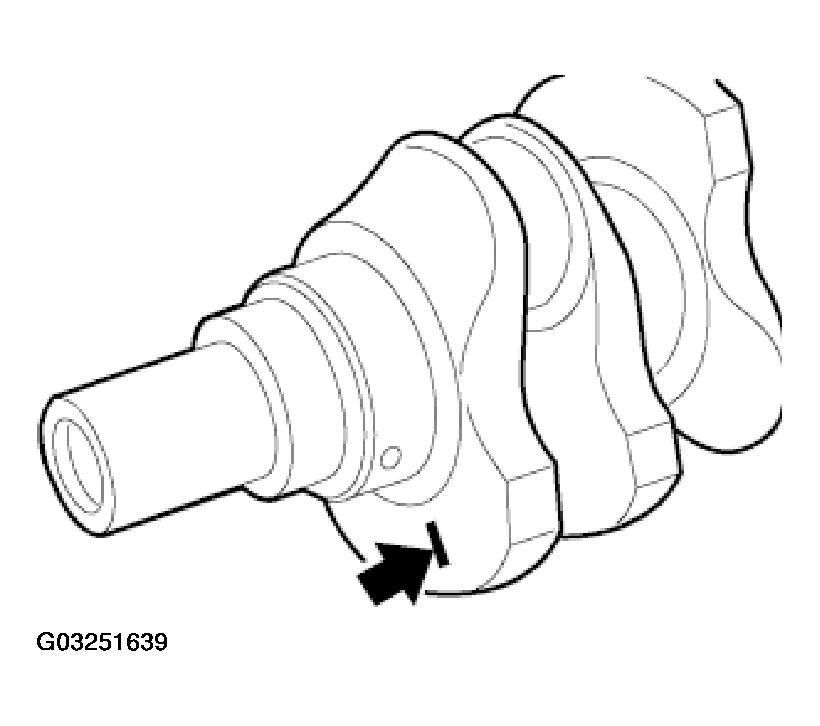

Fig 4: Identifying Grinding Stage Of Crankshaft

G03251639

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove sprocket wheel from crankshaft.

Fit special tool 11 2 383 to crankshaft.

Remove sprocket wheel with special tool 11 2 001 in conjunction with special tool 11 2 005 and special tool 11 2 004.

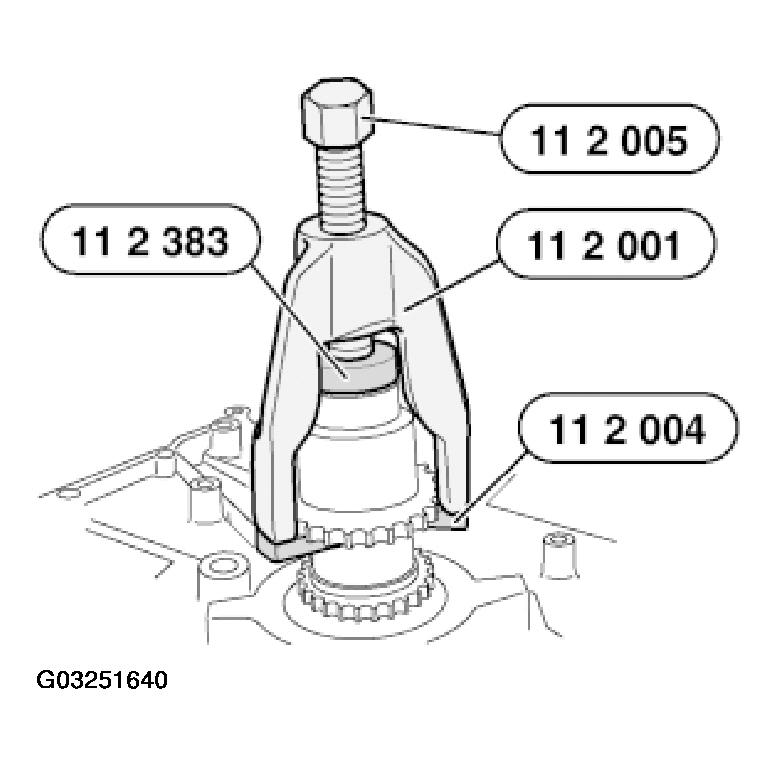

Fig 5: Removing Sprocket Wheel From Crankshaft Using Special Tools

G03251640

Courtesy of BMW OF NORTH AMERICA, INC.
