84 11 523 Removing and installing/replacing transceiver
Remove luggage compartment floor trim panel, refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
Remove flap in luggage compartment trim panel on left, refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .
If necessary, remove warning triangle.
Detach left cover, refer to 51 46 050 REMOVING AND INSTALLING/REPLACING FINISHER FOR TOP OF REAR APRON .

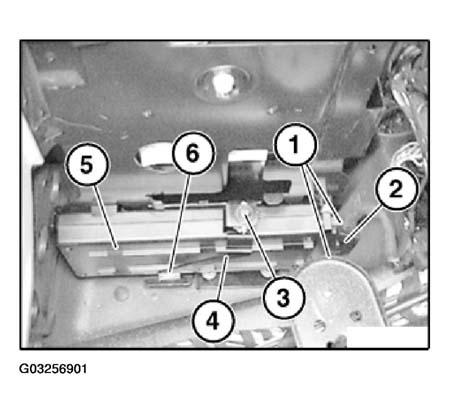

Release knurled screws (1) and disconnect plug connection (2).
Release screw (3) and remove mount (4) of transceiver. Remove transceiver (5).
Installation:
Snap guide into mount (6).
