51 14 ... Instructions for attaching number/letter designation combination: Removing:

Coat nylon string or strong yarn with dishwashing liquid.

Cut through adhesive layer and remove model designation (1) from rear lid (2).

Remove remainder of adhesive layer with adhesive remover.

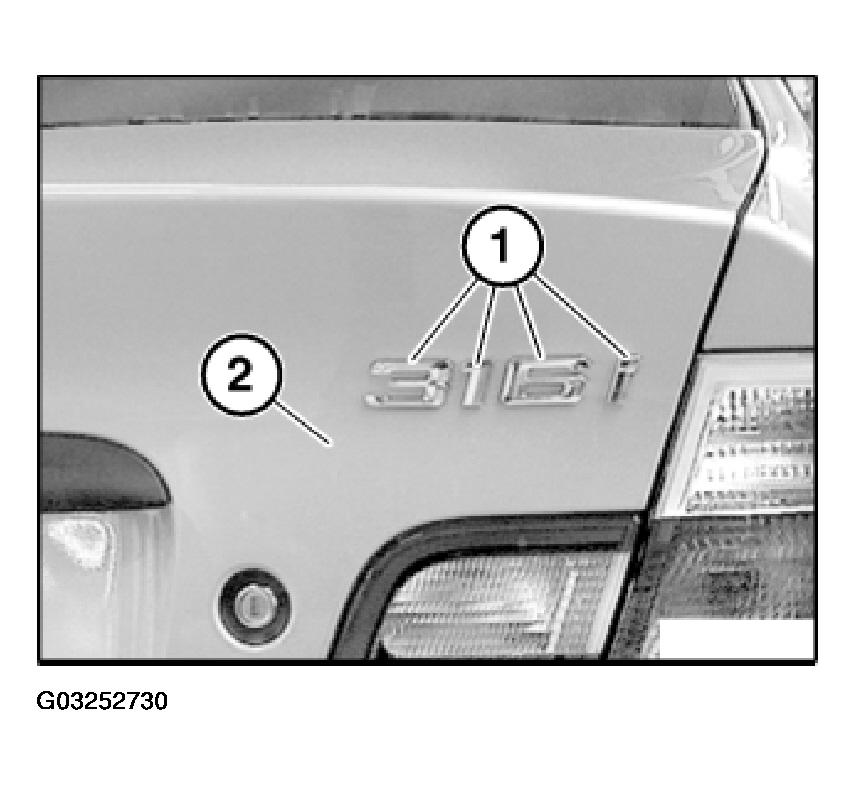

Fig 1: Removing Model Designation From Rear Lid
G03252730Courtesy of BMW OF NORTH AMERICA, INC.
