51 14 ... Instructions for attaching number/letter designation combination: Assembly:

Number and letter combinations (1) of the model designation are not connected to each other and are supplied on a carrier film (2).

IMPORTANT: Adhesive areas must be dry and free of dust and grease.

Once it has been cleaned, do not touch the adhesive area with bare hands.

Remove liner (3) (protective strip for adhesive surface).

Press on model designation firmly.

Remove carrier film (2).

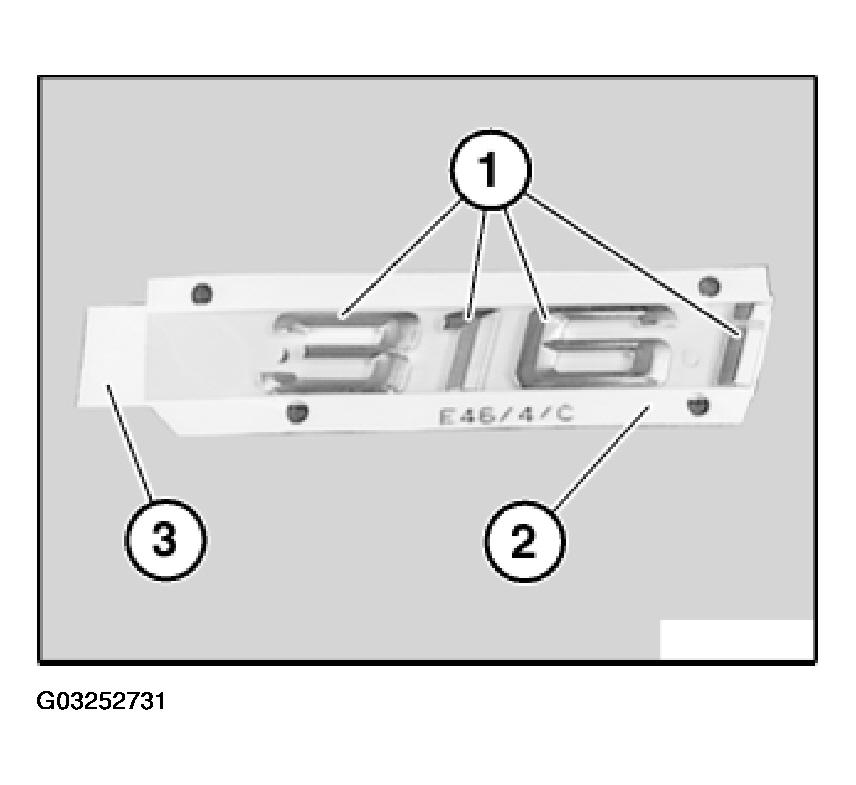

Fig 1: Removing Carrier Film
G03252731Courtesy of BMW OF NORTH AMERICA, INC.
