52 17 390 Removing and installing or replacing front left or right head restraints (comfort)

Pull headrest upwards firmly.

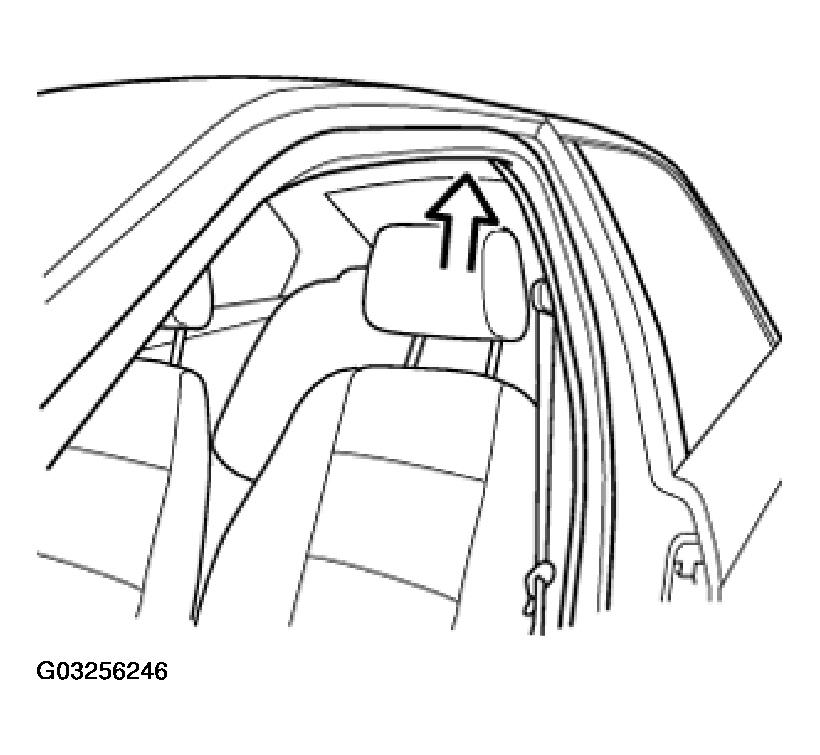

Fig 1: Pull Head Restraint Up Firmly

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove rear panel at top and unclip head restraint from mount.

Installation:

Remove rear panel at top, refer to 52 17 200 REMOVING AND INSTALLING/REPLACING TOP REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT)  .

Insert head restraint in backrest, then clip rods (1) of head restraint into head restraint mount (2).

Carry out function check.

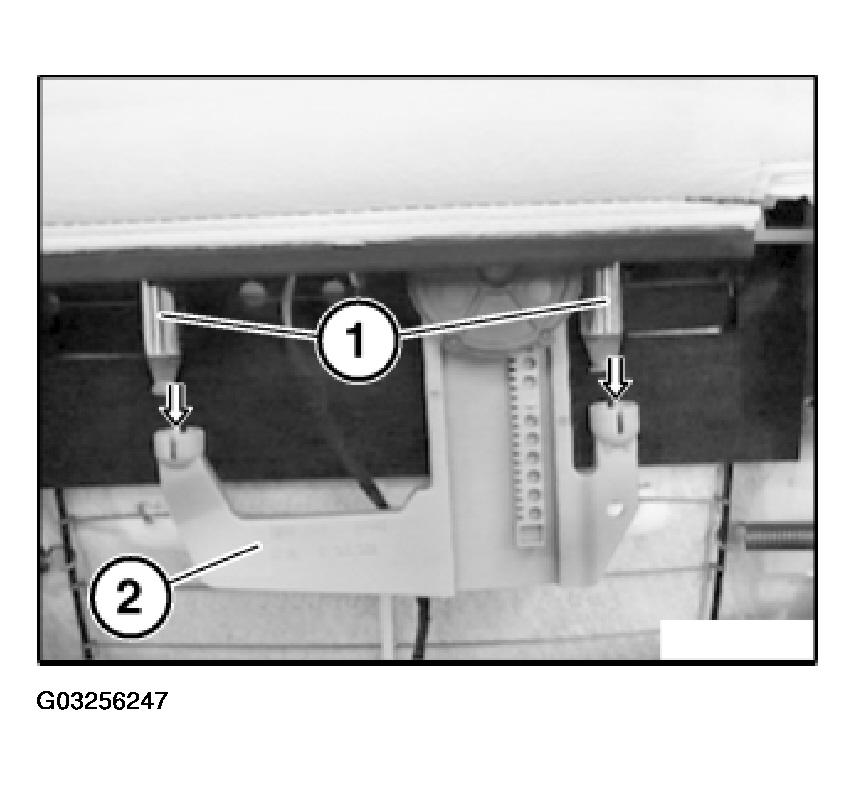

Fig 2: Inserting Head Restraint In Backrest

Courtesy of BMW OF NORTH AMERICA, INC.
