52 14 899 Additional work (normal/electric) with defective drive for longitudinal adjustment

Set seat tilt adjustment to max. up setting.

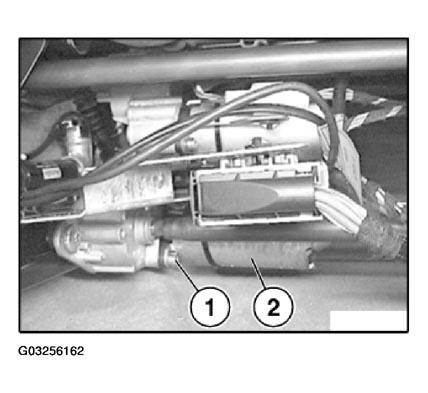

Release screw (1) on actuator drive (2) of longitudinal seat adjustment.

Fig 1: Releasing Actuator Drive Screw

Courtesy of BMW OF NORTH AMERICA, INC.

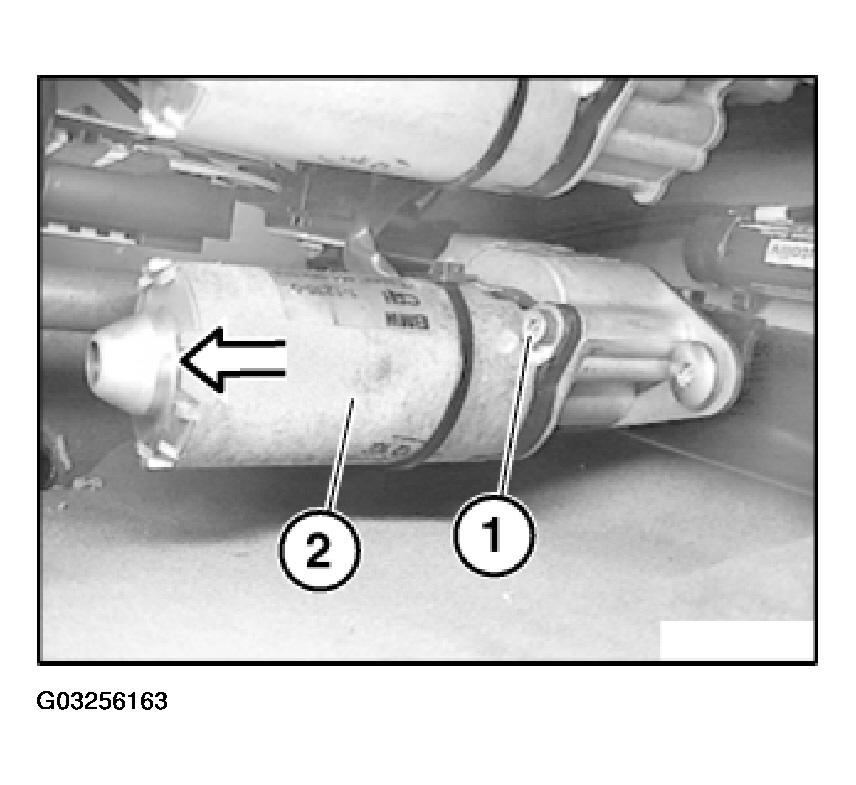

Release screw (1) on servodrive (2) of longitudinal seat adjustment and remove servodrive (2).

Fig 2: Releasing Servodrive Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Activate the operating switch for the seat position adjustment:

(A) No function:

(B) Actuator drive running:

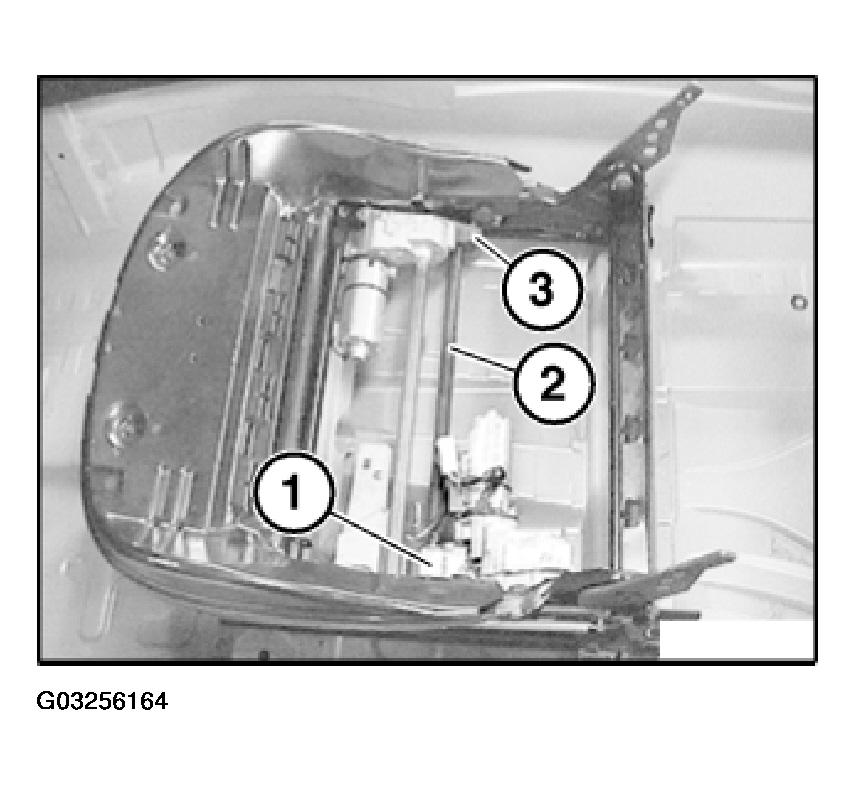

Disassembly Of Faulty Gear (1) For Longitudinal Seat Adjustment:

NOTE: For purposes of clarity, the backrest frame and seat cover are shown removed.

(2) Input shaft

(3) Internal gear

Fig 3: Identifying Seat Adjusting Components (Cover Removed)

Courtesy of BMW OF NORTH AMERICA, INC.

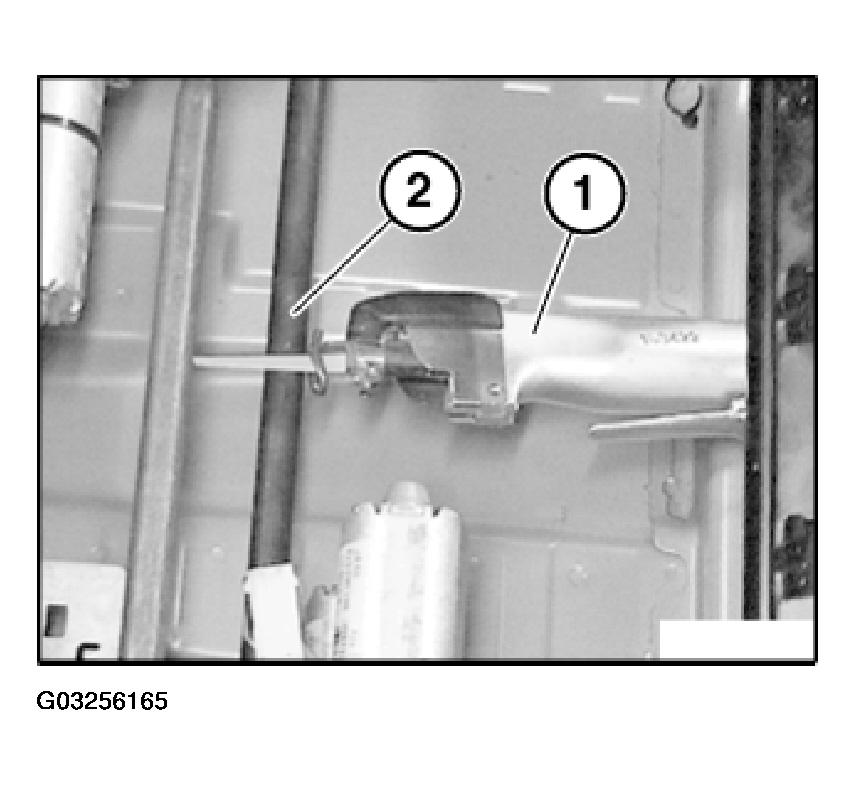

Using a pneumatic saw (1), cut through drive shaft (2) from rear.

Fig 4: Cutting Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

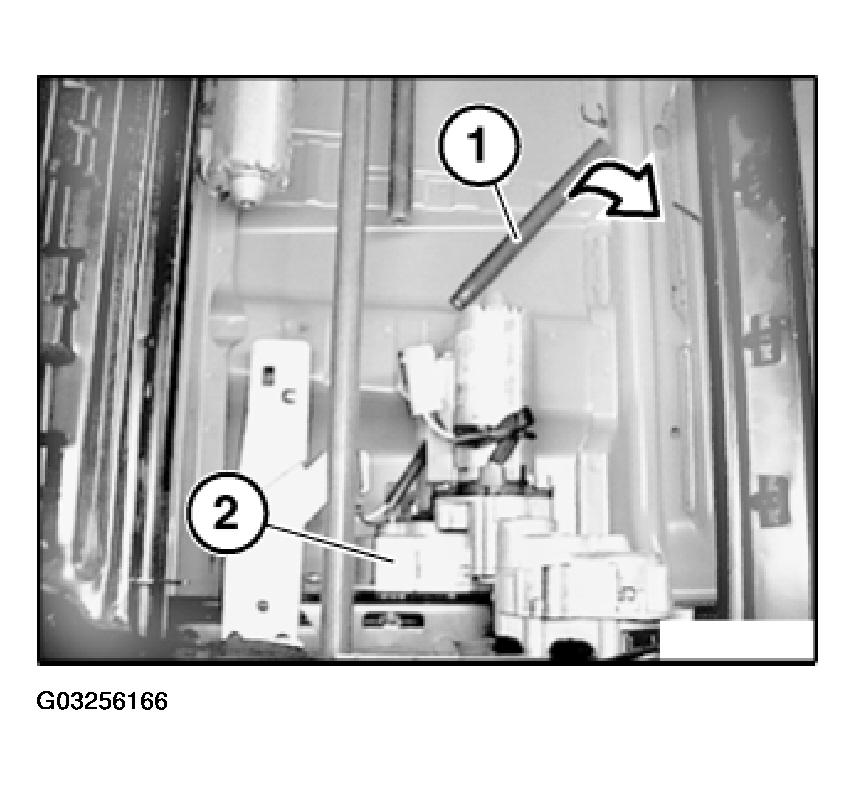

Remove drive shaft (1) from gear (2).

Fig 5: Removing Drive Shaft From Gear

Courtesy of BMW OF NORTH AMERICA, INC.

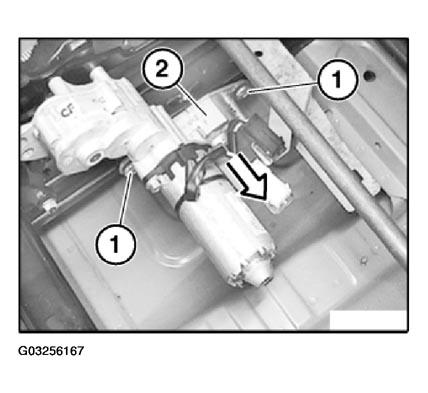

Release screw (1) and remove gear (2).

Fig 6: Removing Longitudinal Seat Adjustment Drive Screw

Courtesy of BMW OF NORTH AMERICA, INC.

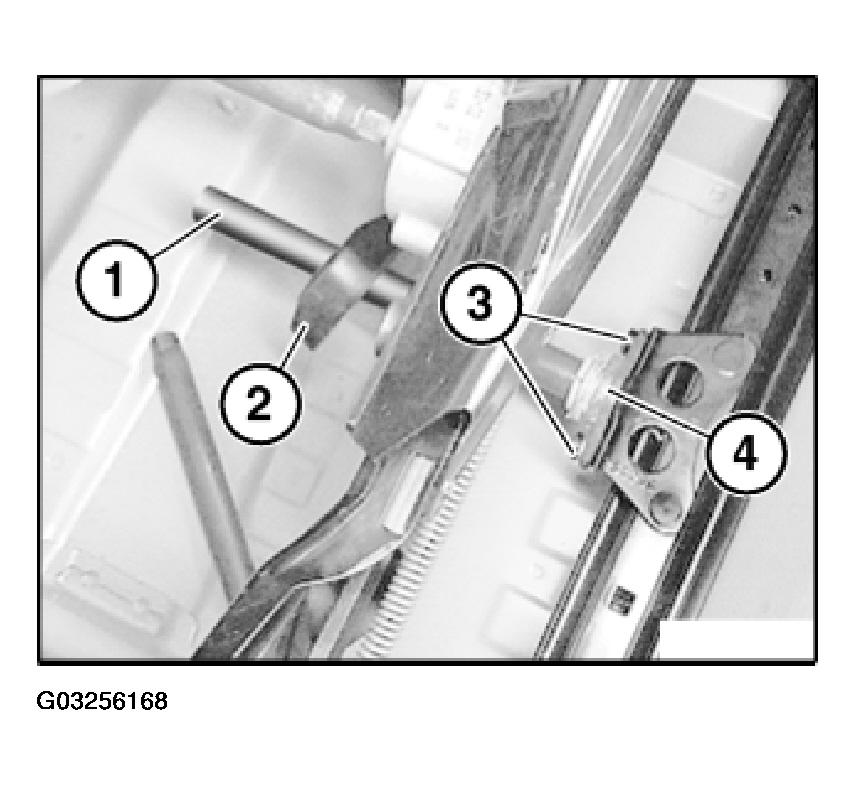

Over rest of drive shaft (1), adjust front seat, release screws on floor panel and remove front seat.

NOTE: If gear (4) is faulty, detach cover (2), release screws (3), and remove gear (4).

Replace seat mechanism on front seat.

Fig 7: Removing Seat

Courtesy of BMW OF NORTH AMERICA, INC.
