Snap-In Adapter On The Base Plate: Construction

The snap-in adapter is the connecting piece between the base plate and the engaged bluetooth mobile phone.

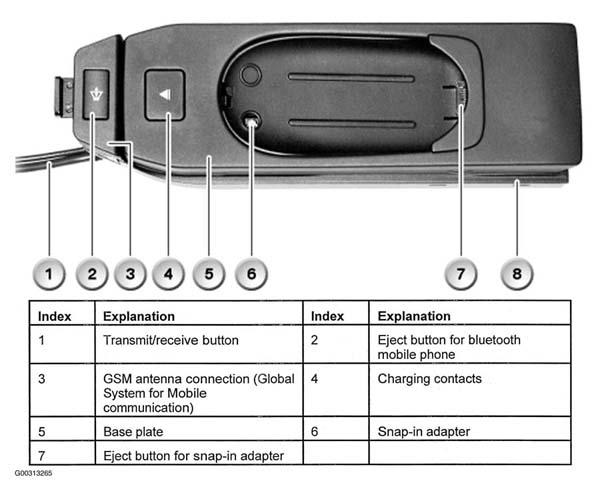

Fig 1: Identifying Snap-In Adapter Components
G00313265Courtesy of BMW OF NORTH AMERICA, INC.
