Windscreen Removal System "Roll Out 2000"

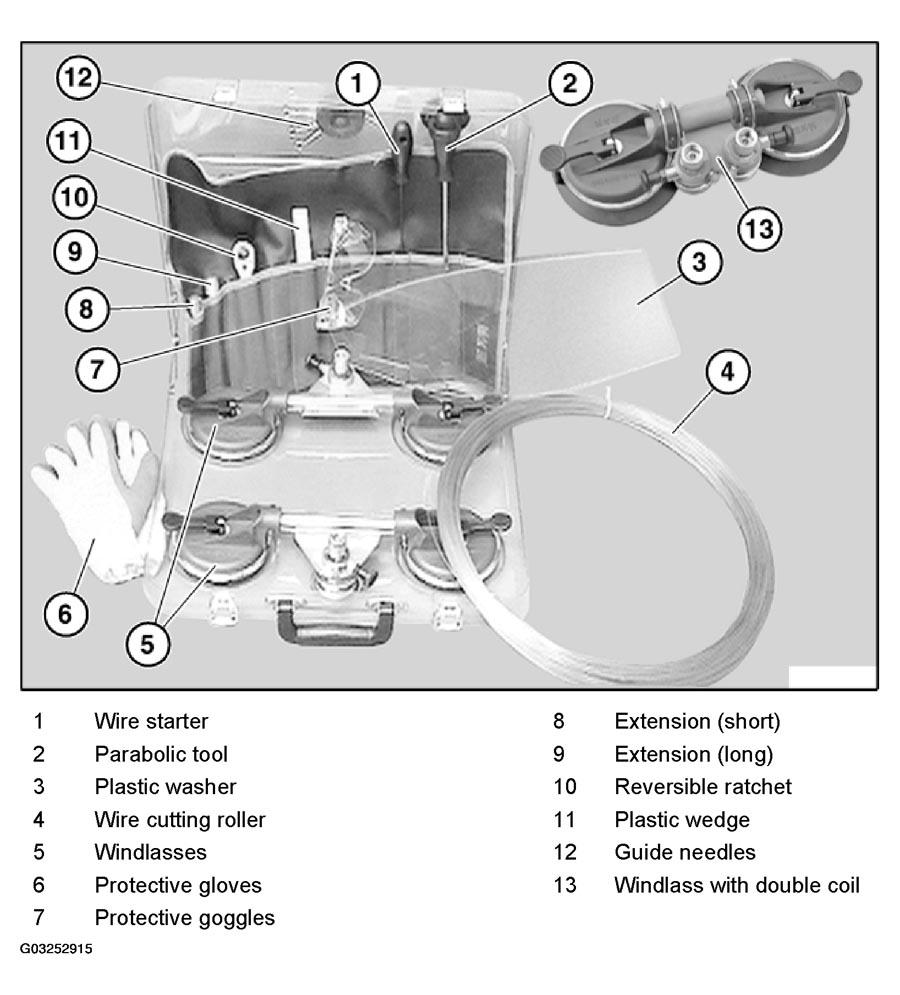

Fig 1: Identifying Special Tools
G03252915Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Using the "Roll Out 2000" system (BMW Workshop Equipment and Planning Documentation) minimizes paintwork and ergonomic damage as well as damage that is hazardous to health.
WARNING: Follow safety instructions for working on cars with airbag systems (risk of injury).
IMPORTANT: Take care when handling sharp-edged tools and cutting wire (risk of damage to head airbag).
IMPORTANT: Always keep both suckers dry and clean to ensure their optimum adhesion on the windscreen.

Lubricate coil if interlock rattling becomes too loud.

Always wear protective goggles and gloves for your own safety.
