Laying Cutting Wire Around Windscreen:

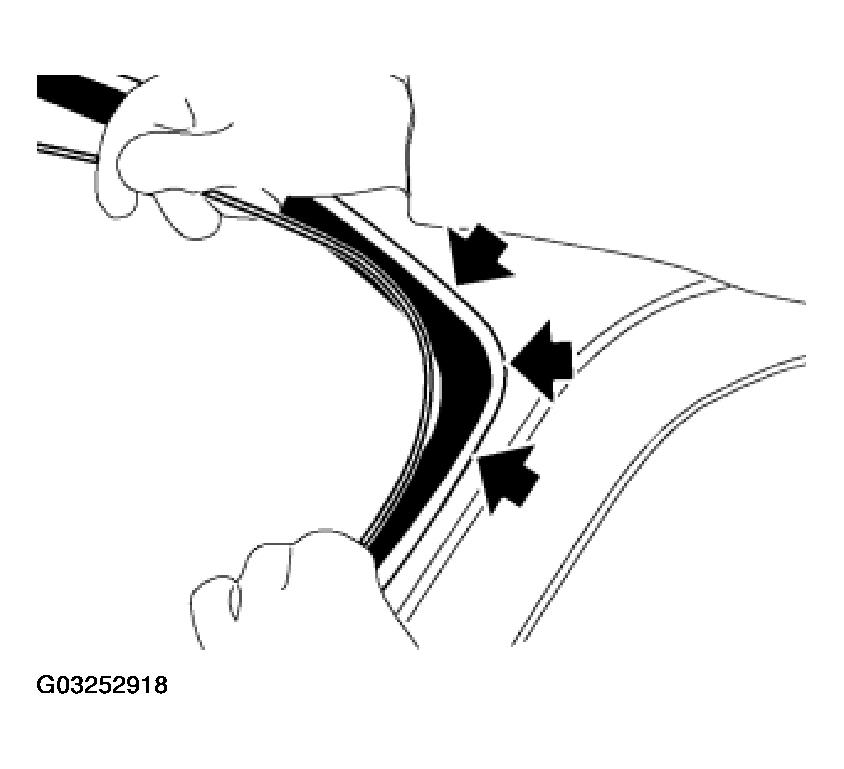

IMPORTANT: Make sure the cutting wire is located at all four corner points below the windscreen.

Check that the cutting wire is not caught on retainers or body.

Secure window on outside with adhesive tape against slipping

NOTE: Windows (1) with fitted seals (3) or sprayed-on surrounds:
  • Moisten cutting wire (4) and seals (3) on window (1) with water
  • Insert cutting wire (4) in bend (without kinking) between window (1) and body cutout (2)

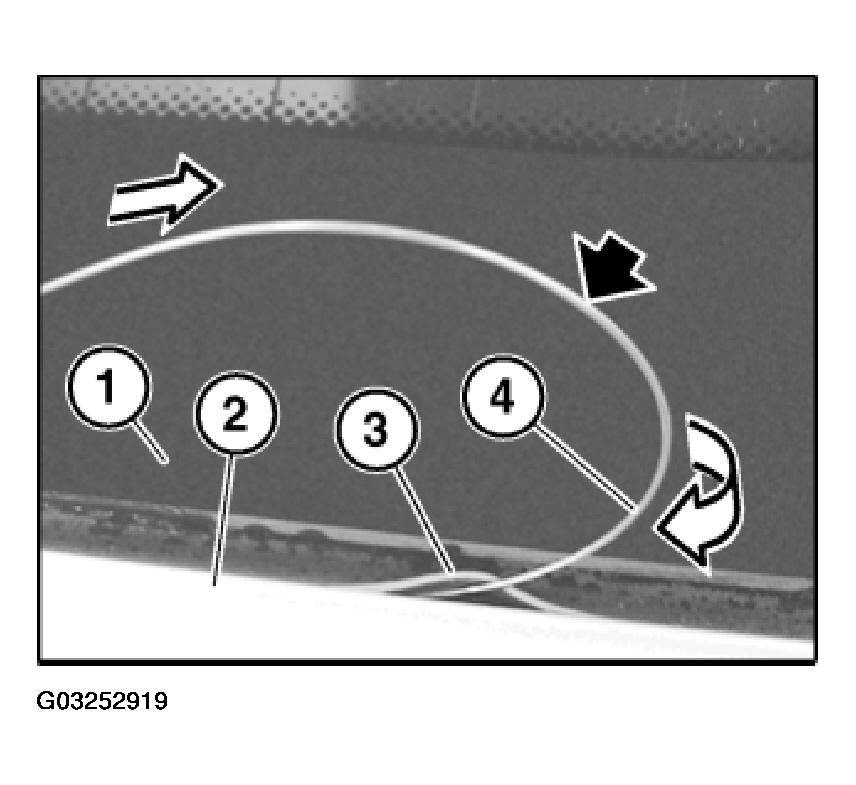

    Fig 2: Inserting Cutting Wire In Bend (Without Kinking) Between Window And Body Cutout
    G03252919Courtesy of BMW OF NORTH AMERICA, INC.
