51 11 701 Replacing left or right bracket for front bumper

Necessary preliminary tasks:

Bumper trim removed.

Version up to 10/2003:

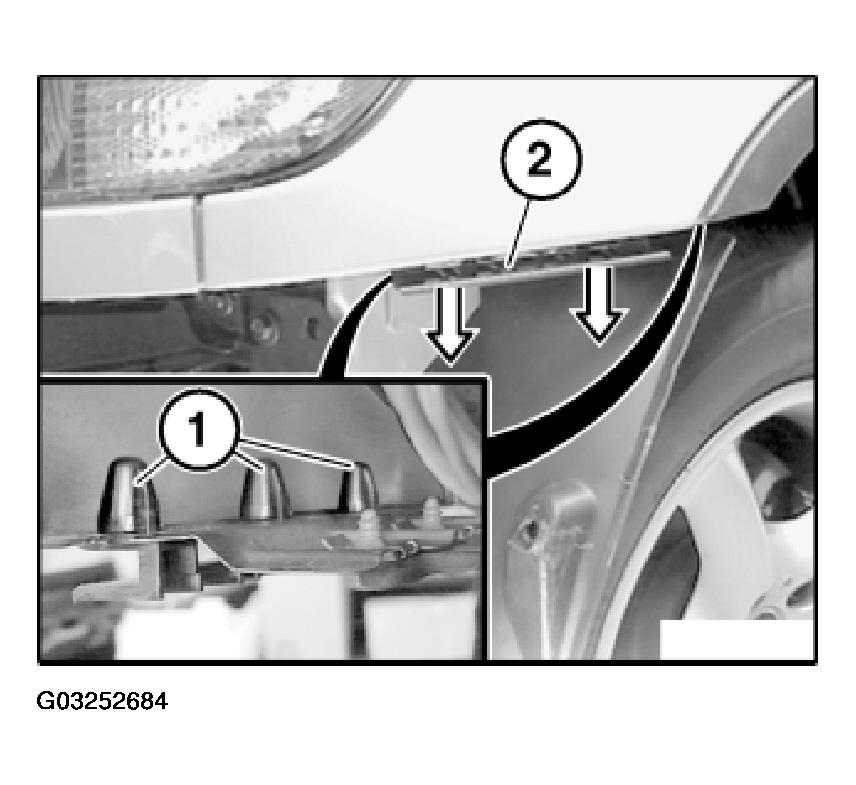

Compress catches (1) and detach bracket (2) towards bottom.

Fig 1: Detaching Bracket Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

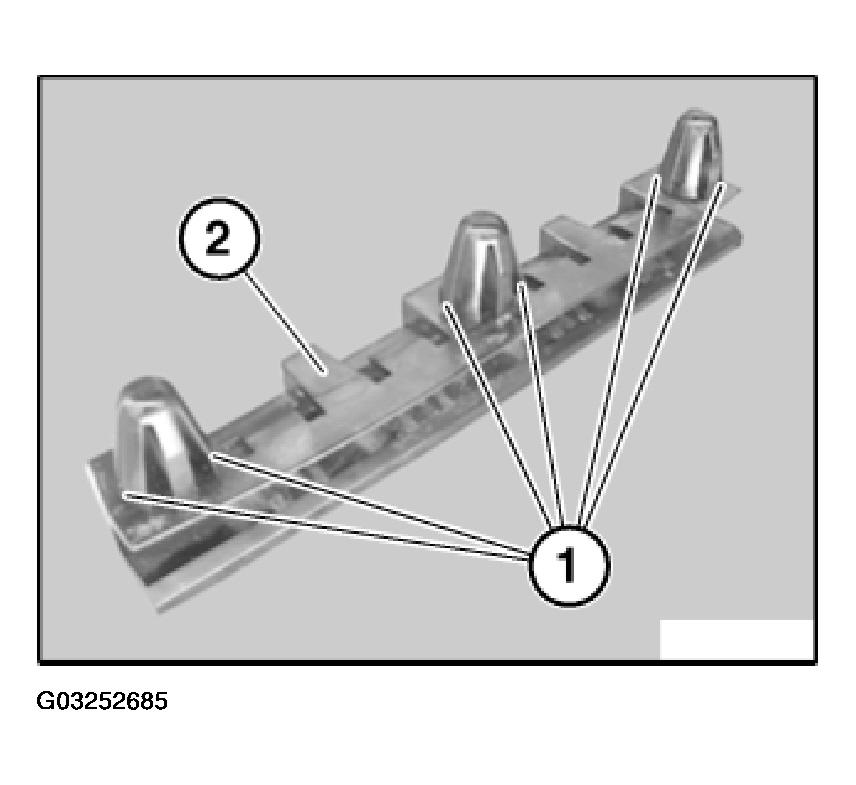

Catches (1) on bracket (2) must not be damaged.

Fig 2: Checking Catches On Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 10/2003:

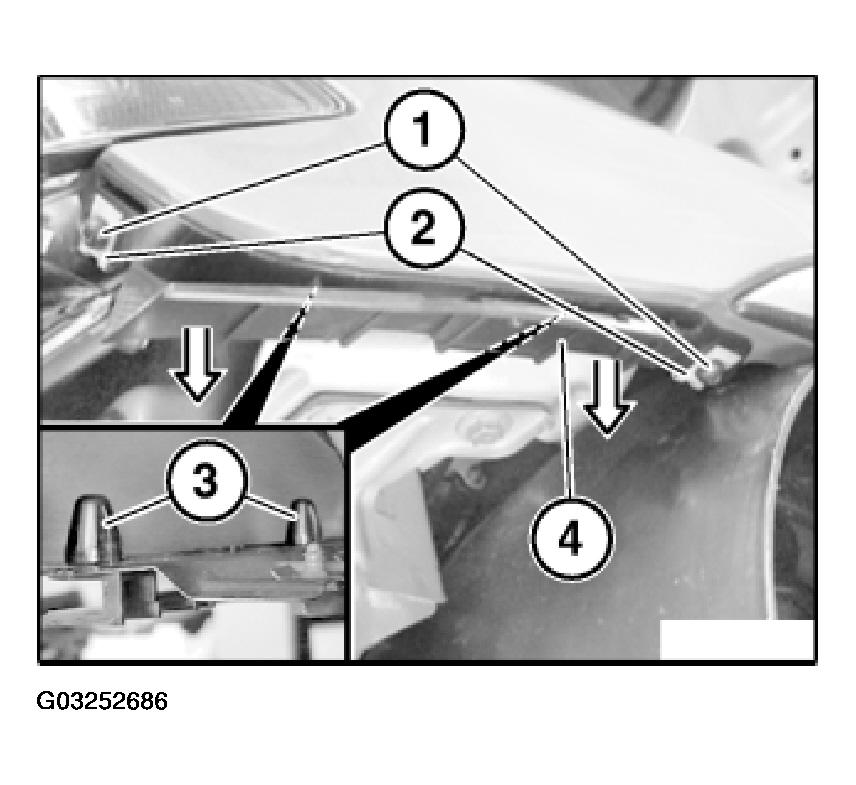

Release screws (1) and detach metal nuts (2).

Compress catches (3) and detach bracket (4) towards bottom.

Fig 3: Detaching Bracket Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

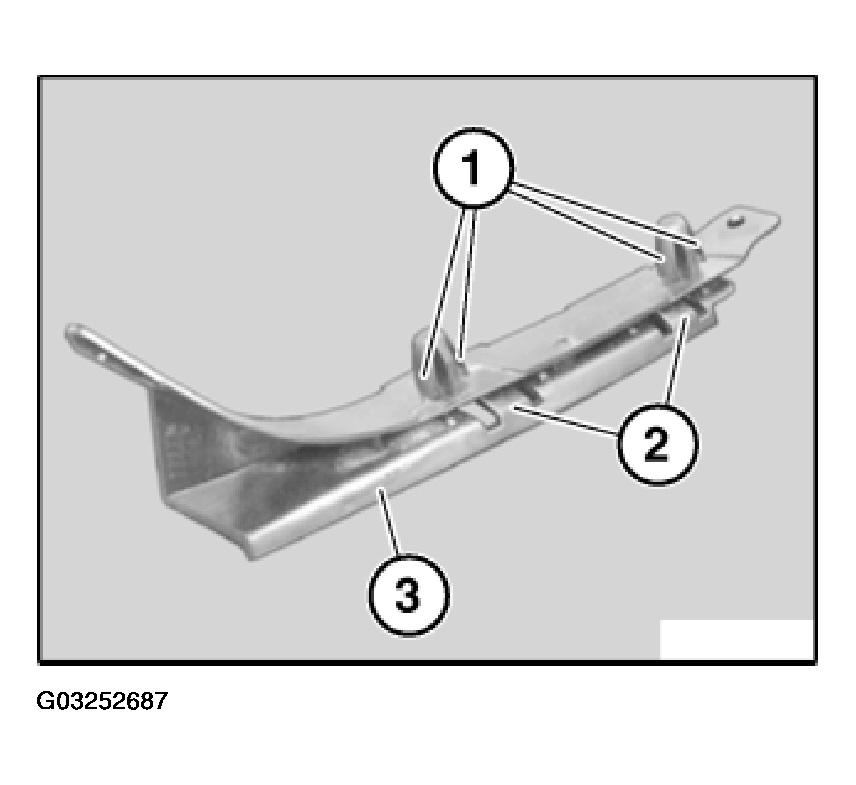

Catches (1 and 2) on bracket (3) must not be damaged.

Fig 4: Checking Catches On Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
