51 37 ... Removing and installing/replacing mount for window cavity cover strip, left or right

Remove window cavity cover strip on inside for door window. See 51 37 261 Removing And Installing/Replacing Window Cavity Cover Strip For Door Window, Rear Left Or Right .

Release screws (1).

Remove mount (2).

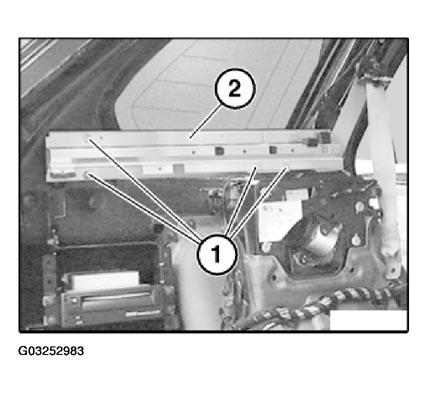

Fig 1: Releasing Screws & Removing Mount
G03252983Courtesy of BMW OF NORTH AMERICA, INC.
