51 32 420 Removing and installing/replacing finisher on front door window frame, left or right

Remove window cavity cover strip on outside of front door. Refer to 51 21 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON OUTSIDE OF FRONT DOOR .

Partially lever out cover (anti-trap protection) on door window frame at rear. Refer to 51 32 160 REMOVING AND INSTALLING/REPLACING COVER (ANTI-TRAPPING PROTECTION) ON DOOR WINDOW FRAME, LEFT OR RIGHT, INSIDE .

Open door window.

Partially detach rubber window seal (1) at rear.

Installation:

For installation, coat window rubber guide (1) with turpentine substitute.

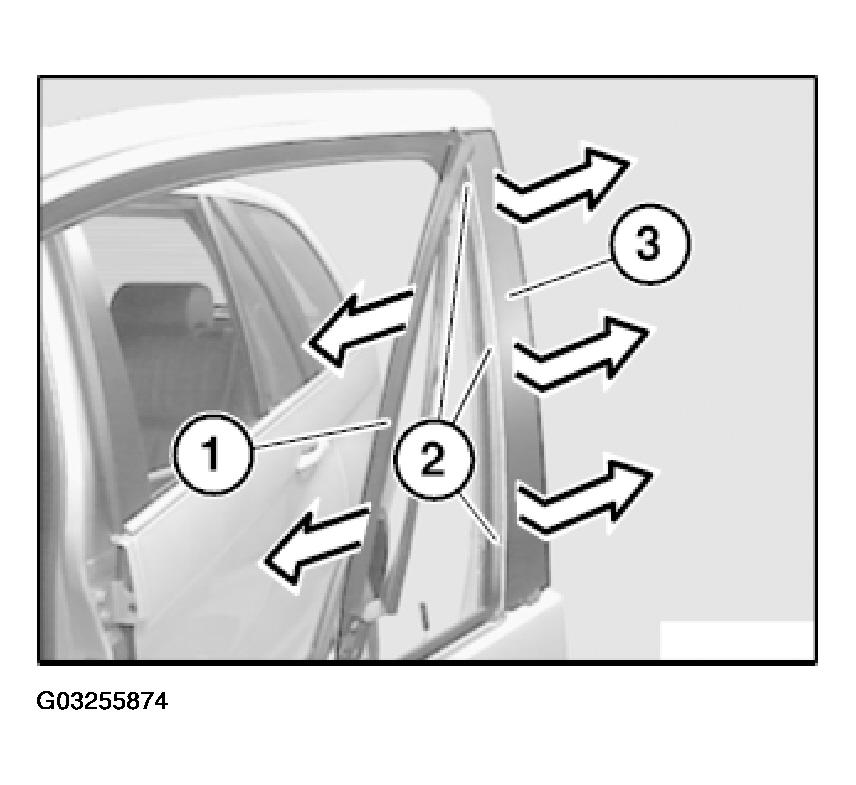

Release screws (2).

Lever out finisher (3) and detach towards rear.

Installation:

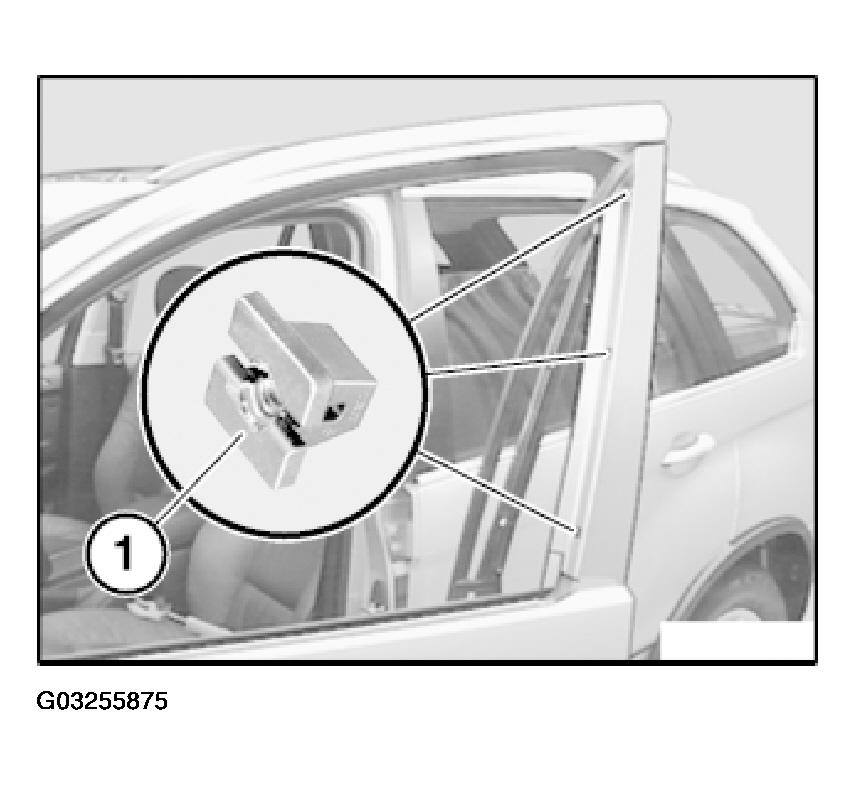

If necessary, replace faulty plastic nuts (1).

Installation:

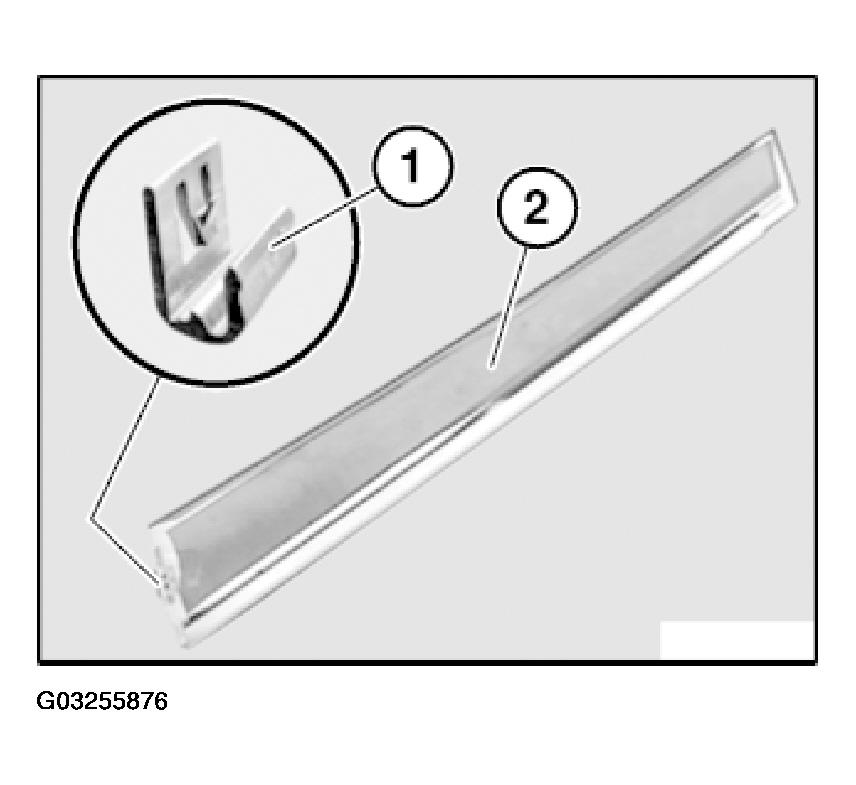

If necessary, replace faulty clip (1) on finisher (2).
