51 32 211 Replacing front left or right rubber guide for left or right door window

Remove window cavity cover strip on outside of front door. Refer to 51 21 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON OUTSIDE OF FRONT DOOR .

Remove sound insulation on front door. Refer to 51 48 ... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT .

Remove cover (anti-trap protection) on inside of door window frame. Refer to 51 34 160 REMOVING AND INSTALLING/REPLACING COVER (ANTI-TRAPPING PROTECTION) ON DOOR WINDOW FRAME (REAR DOOR), INSIDE LEFT OR RIGHT .

Open complete door window glass.

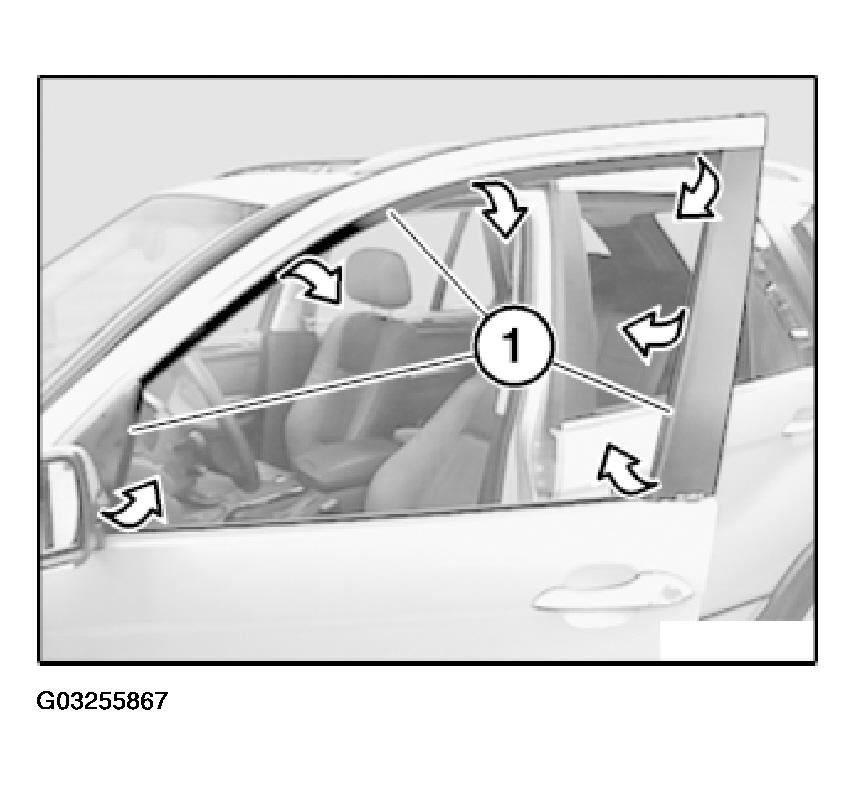

Pull rubber guide (1) completely out of front door.

Installation:

For installation, coat window cavity seal (1) with turpentine substitute.

Insert rubber guide at front/bottom into window guide rail.

Installation:

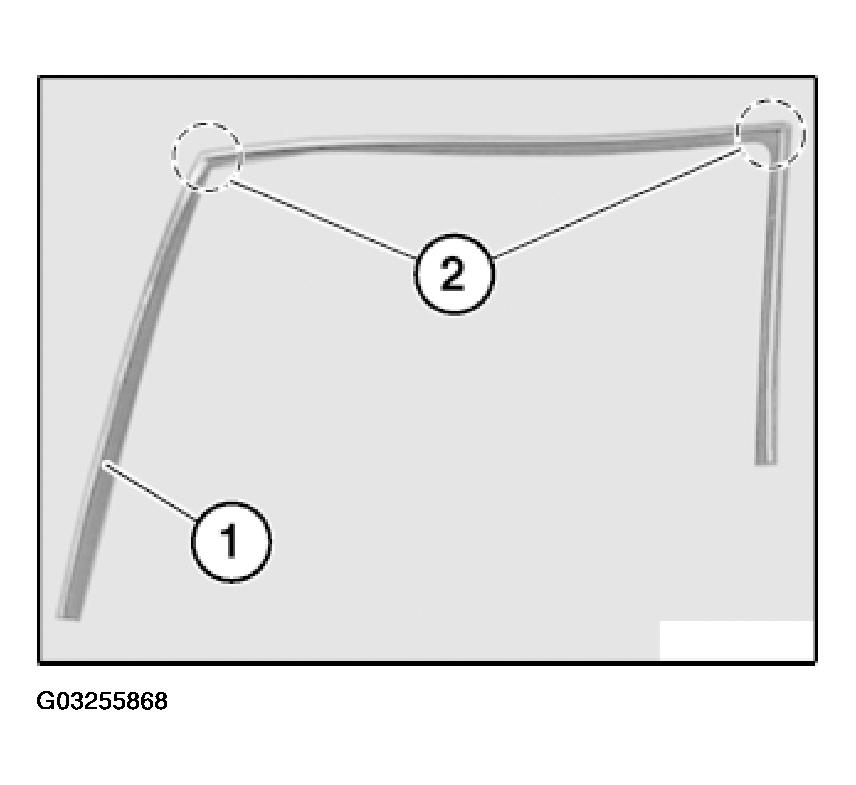

Rubber guide (1) must not be damaged in corners (2).
