51 48 ... Removing and installing/replacing sound insulation in front door, left or right

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

If necessary, remove airbag module in front door. Refer to SIDE AIR BAG MODULE for year model 2001, SIDE AIR BAG MODULE for year model 2002, or SIDE AIR BAG MODULE for year model 2003.

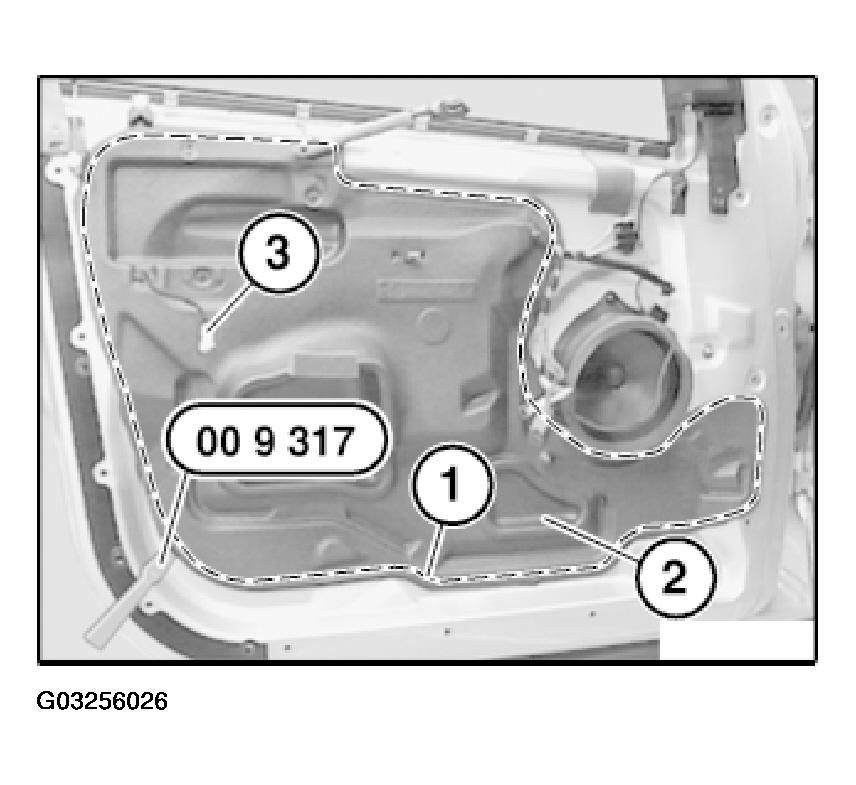

Fig 1: Using Assembly Wedge To Remove Sealing Bead Of Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Using special tool 00 9 317 (trim panel wedge), lever out sealing bead (1) of sound insulation (2) completely or if necessary partially.

Feed airbag lead (3) out of sound insulation (2).

Installation:

In event of replacement or partial detachment, lay butylene tape on inner door plate or sound insulation.

Seal cable penetrations with butylene tape.

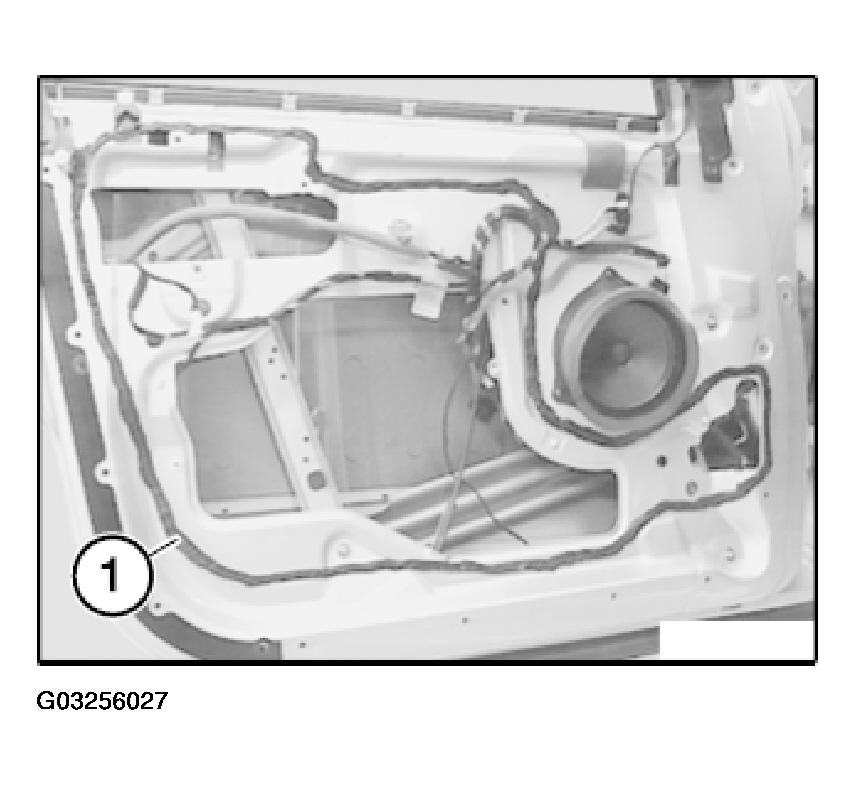

NOTE: Position of butylene tape (1) on inner door plate.

Fig 2: Aligning Butylene Tape On Inner Door Plate

Courtesy of BMW OF NORTH AMERICA, INC.

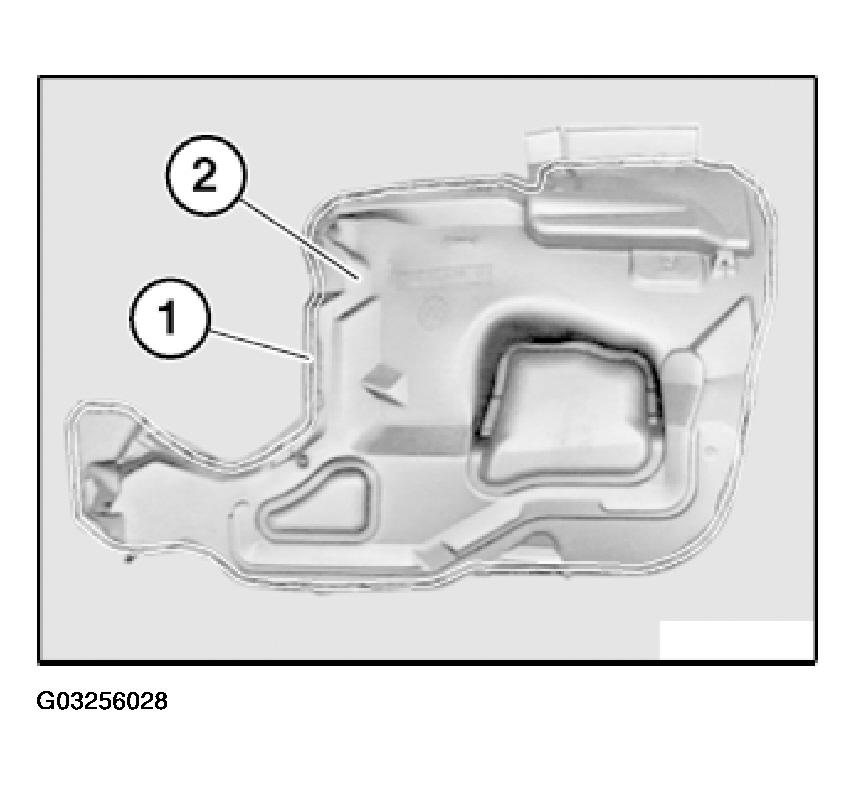

NOTE: Position of butylene tape (1) on sound insulation (2).

Fig 3: Positioning Of Butylene Tape On Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Clean specified adhesive area with adhesive cleaner.

Air drying time: 1 minute.

CAUTION: The adhesive areas must be dry and free from dust and grease. After cleaning, do not touch the adhesive areas with bare hands.

Lay single row of 6 mm dia. butylene tape or double row of 3 mm dia. tape in specified adhesive area.

Heat butylene tape (hot air blower) and press down firmly on sound insulation all around.

Contact pressure with hand roller: approx. 30 N/cm² .

Manual contact pressure: approx. 10 N/cm² .

NOTE: Firm thumb pressure has approx. 50 N/cm² .
