51 37 ... Removing and installing/replacing mount for window cavity cover strip, left or right

Remove window cavity cover strip on inside for door window. Refer to 51 37 261 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP FOR DOOR WINDOW, REAR LEFT OR RIGHT .

Release screws (1).

Remove mount (2).

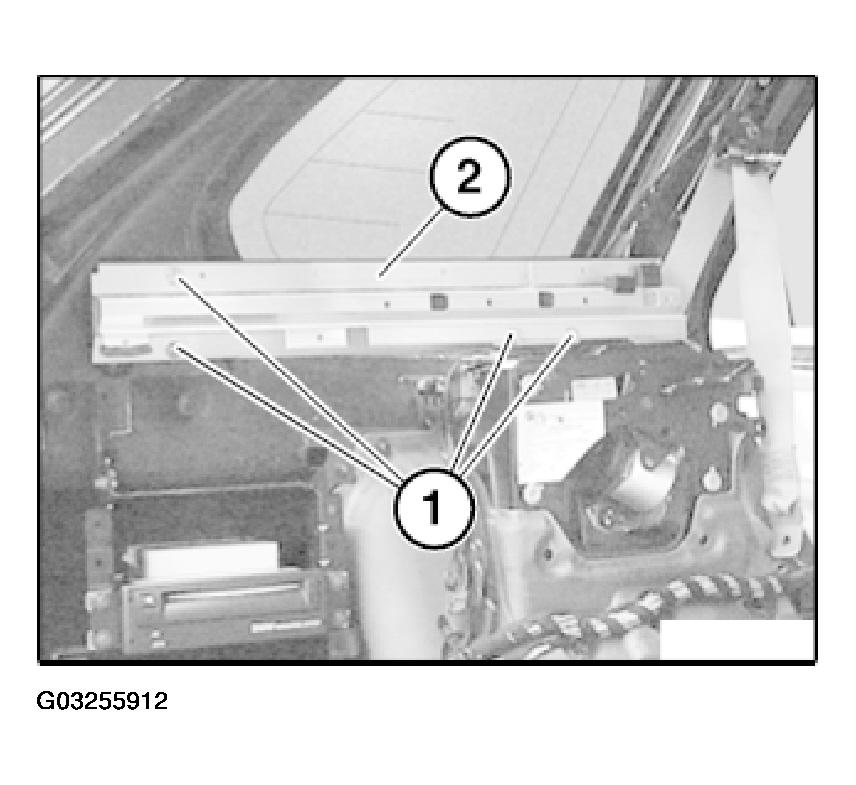

Fig 1: Releasing Screws On Mount
G03255912Courtesy of BMW OF NORTH AMERICA, INC.
