51 14 110 Removing and installing/replacing rear model emblem

IMPORTANT: The "Instructions for number/letter combination cementing" serve as the basis for these repair instructions and must be followed without fail. Refer to 51 14... INSTRUCTIONS FOR ATTACHING NUMBER/LETTER DESIGNATION COMBINATION .

Stick on top edge of adhesive tape (1) parallel to bottom edge of rear lid (2) at distance "A".

Mark measurement "B" from side edge (3) measured on top edge of adhesive tape.

Dimensions:

A = 22 mm.

B = 53 mm.

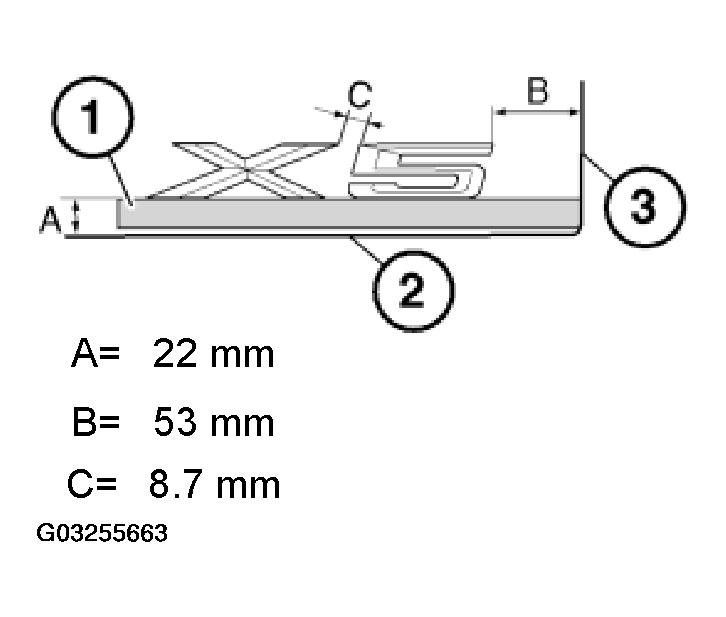

Fig 1: Identifying Dimensions Of Rear Model Emblem

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Measurement "C" is for information purposes only, as it is determined by carrier film. C = 8.7 mm.
