System Components: Inputs - Processing - Outputs

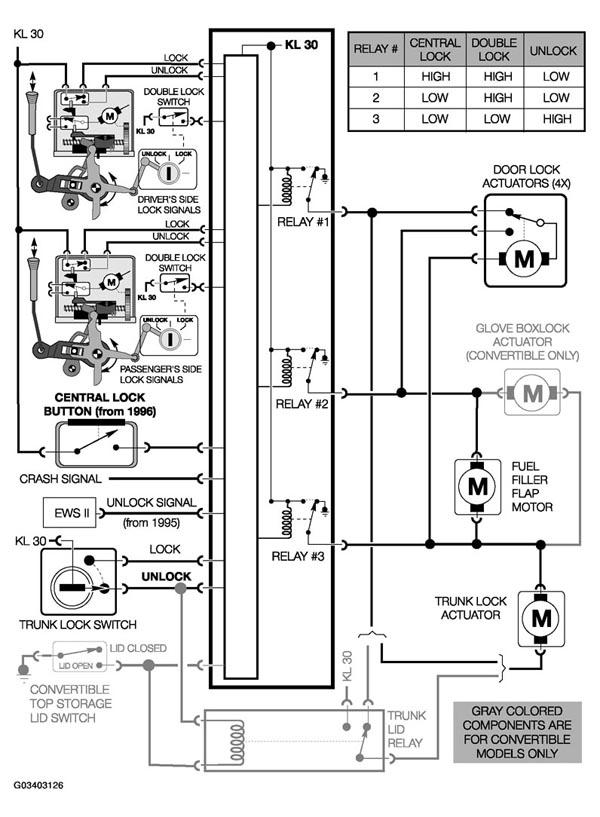

Fig 1: Identifying Lock Actuators Circuit Diagram

G03403126

Courtesy of BMW OF NORTH AMERICA, INC.
