Analog Instruments

Analog instruments are controlled by the IKE from signals it receives over separate inputs or the CAN bus.

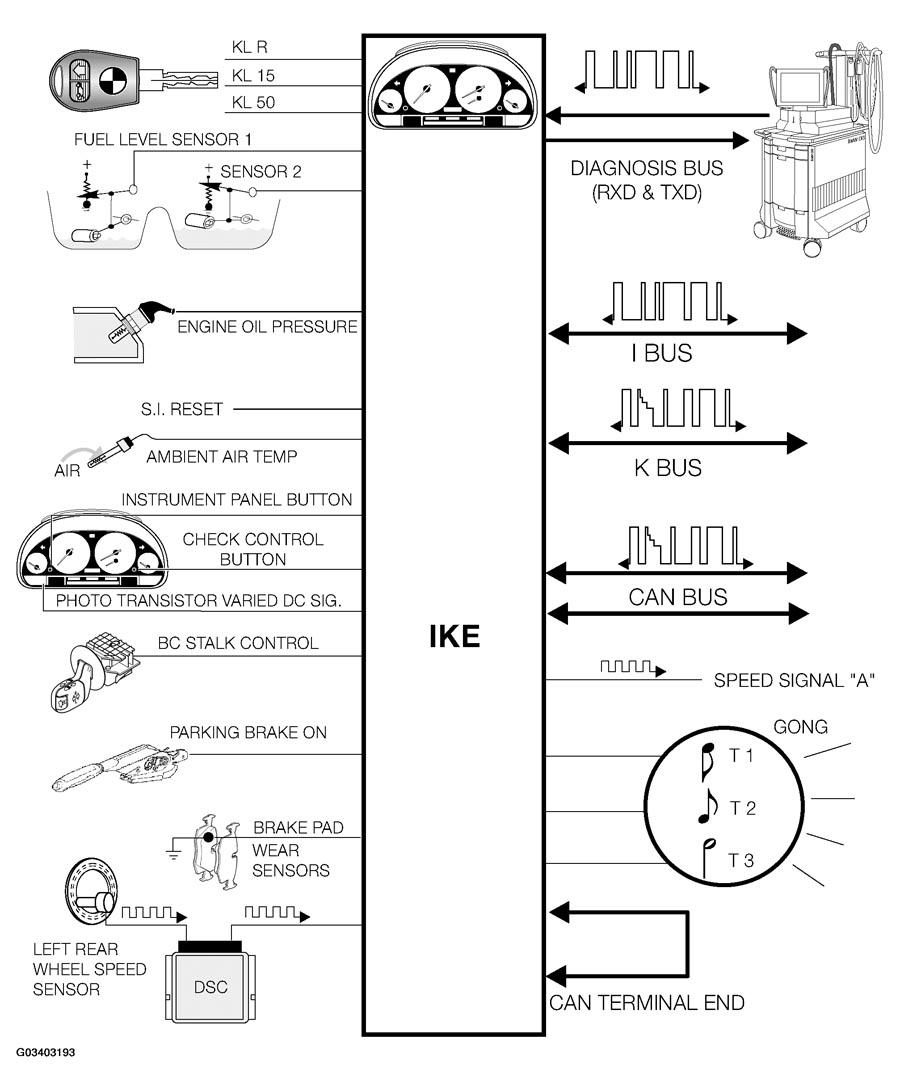

Fig 1: Identifying Instrument Cluster System (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

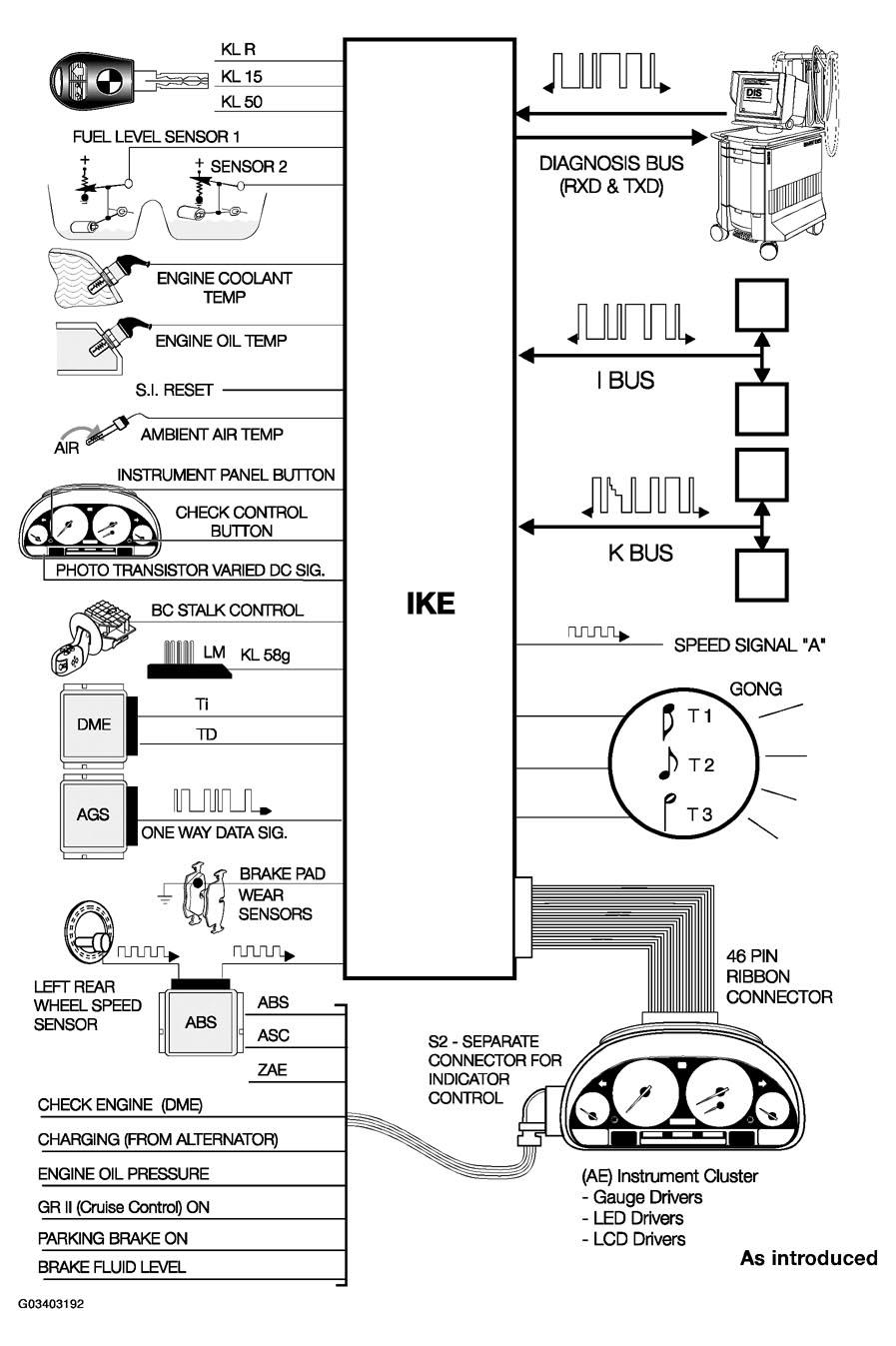

Fig 2: Identifying Instrument Cluster System (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Integrated IKE as of 9/97.
