Battery in luggage compartment under spare wheel

Remove spare wheel.

Release screws.

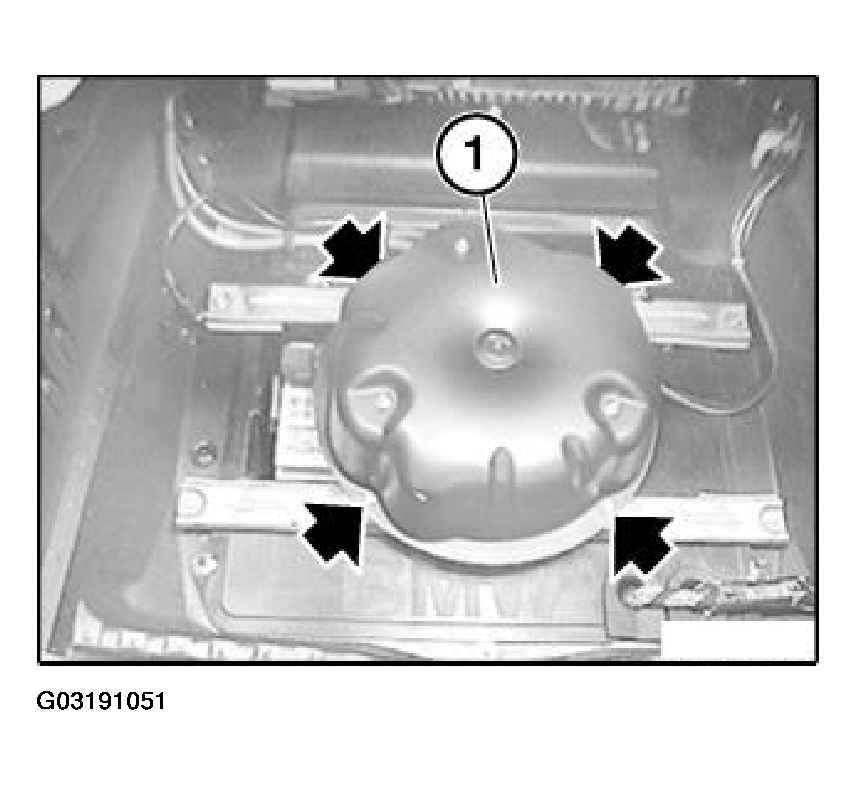

Fig 1: Releasing Air Supply System

Courtesy of BMW OF NORTH AMERICA, INC.

Set air supply system (1) to one side.

Follow instructions for disconnecting and connecting battery. Refer to 12 00... Disconnecting and connecting battery  .

Disconnect battery negative lead.

Disconnect supply cable (1) for vehicle electrical system.

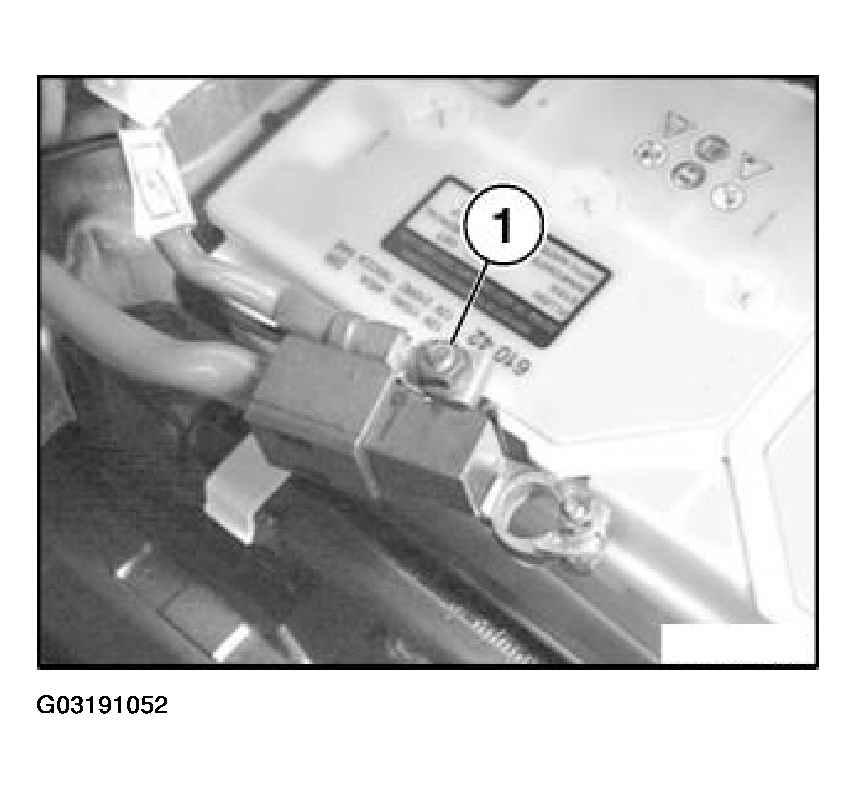

Fig 2: Disconnecting Supply Cable

Courtesy of BMW OF NORTH AMERICA, INC.
