Battery in luggage compartment behind side trim panel

Remove side trim panel.

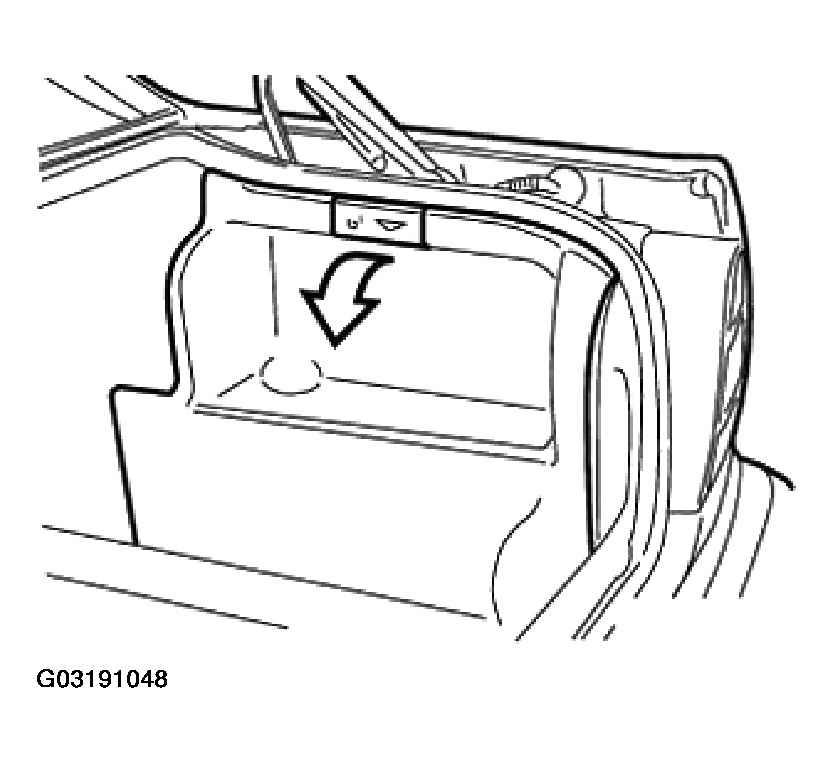

Fig 1: Locating Side Trim Panel
G03191048Courtesy of BMW OF NORTH AMERICA, INC.

Follow instructions for disconnecting and connecting battery. Refer to 12 00... Disconnecting and connecting battery  .

Disconnect and cover battery negative lead.

Release front side trim panel partly and fold forward.

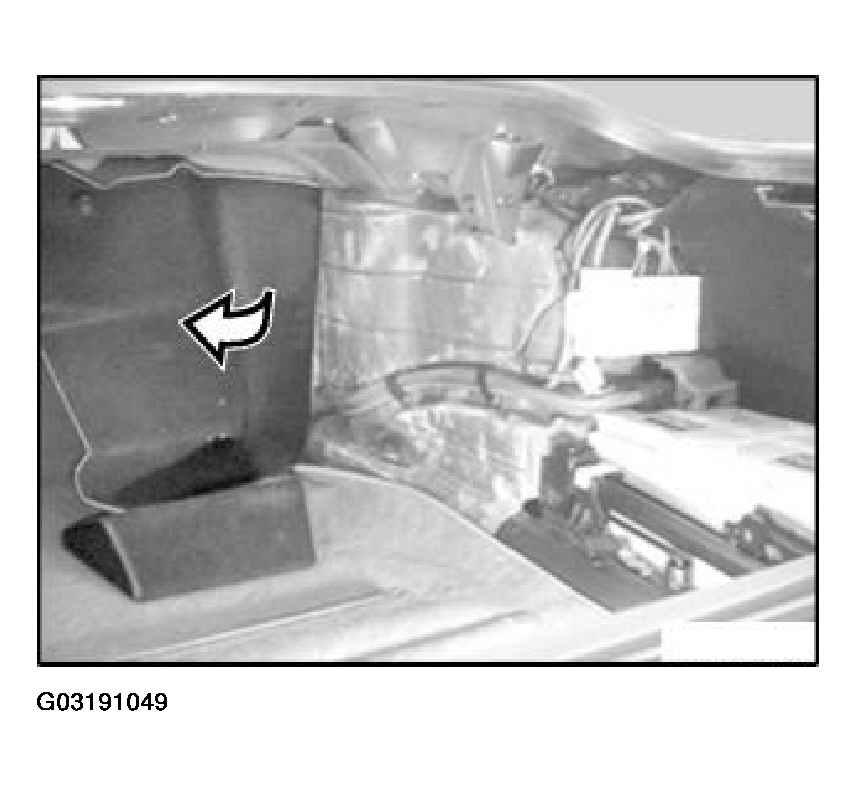

Fig 2: Releasing Front Side Trim Panel
G03191049Courtesy of BMW OF NORTH AMERICA, INC.
