17 11 031 Replacing fan cowl (N62)

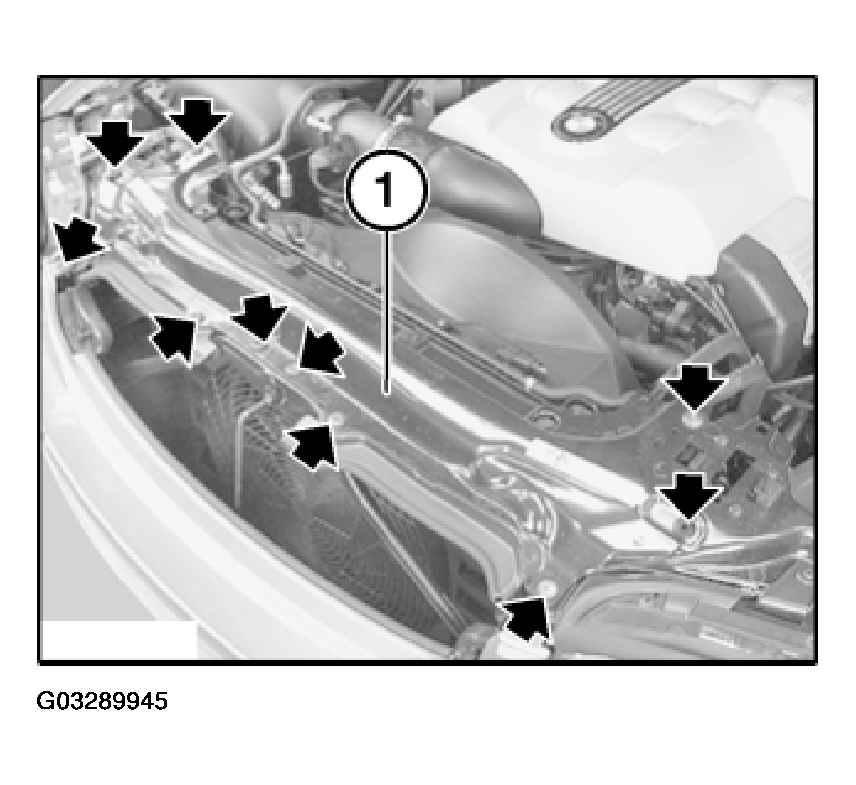

Unfasten screws.

Remove front wall (1).

Fig 1: Removing Front Wall

Courtesy of BMW OF NORTH AMERICA, INC.

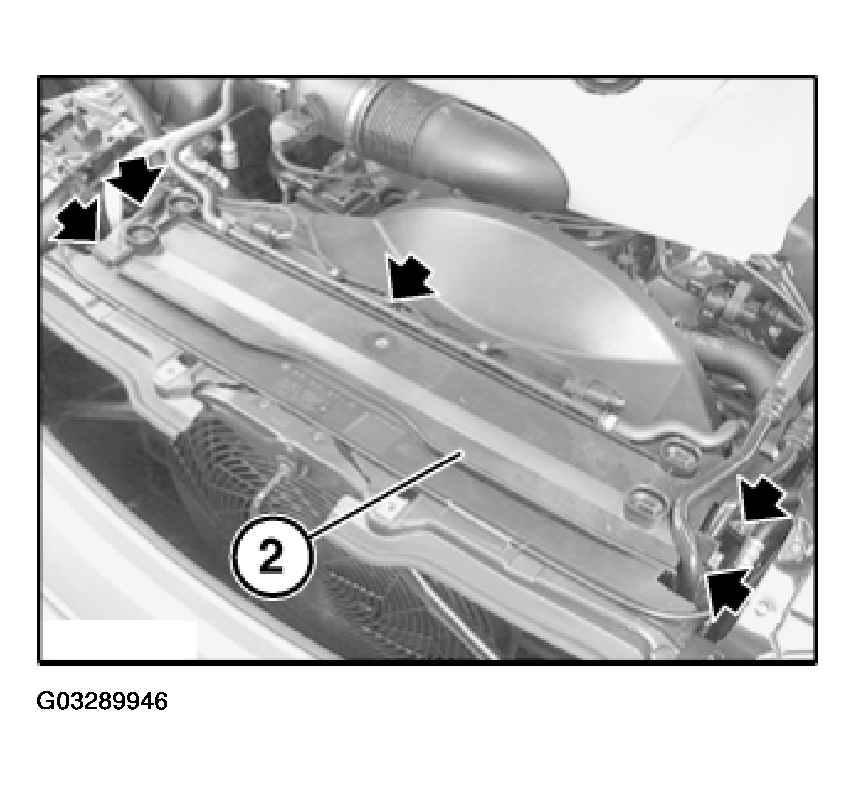

Unfasten screws.

Remove radiator cowling (2).

Fig 2: Removing Radiator Cowling

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip auxiliary fan cover and remove.

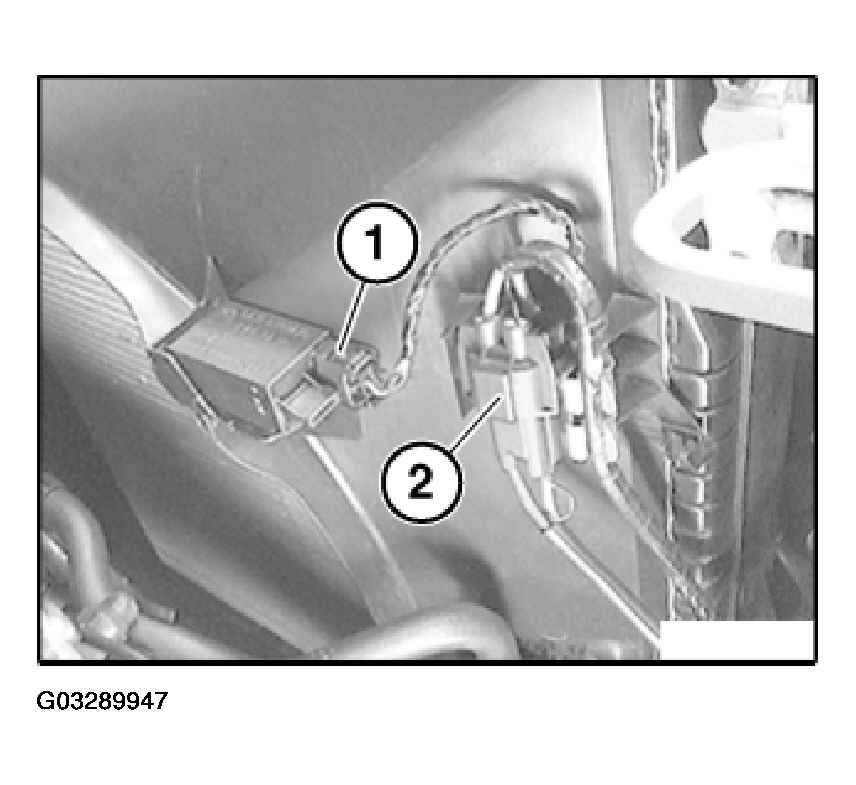

Unlock plug (1) on AUC sensor and disconnect.

Fig 3: Unlocking Plug On AUC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug connection (2).

If necessary, unclip AUC sensor.

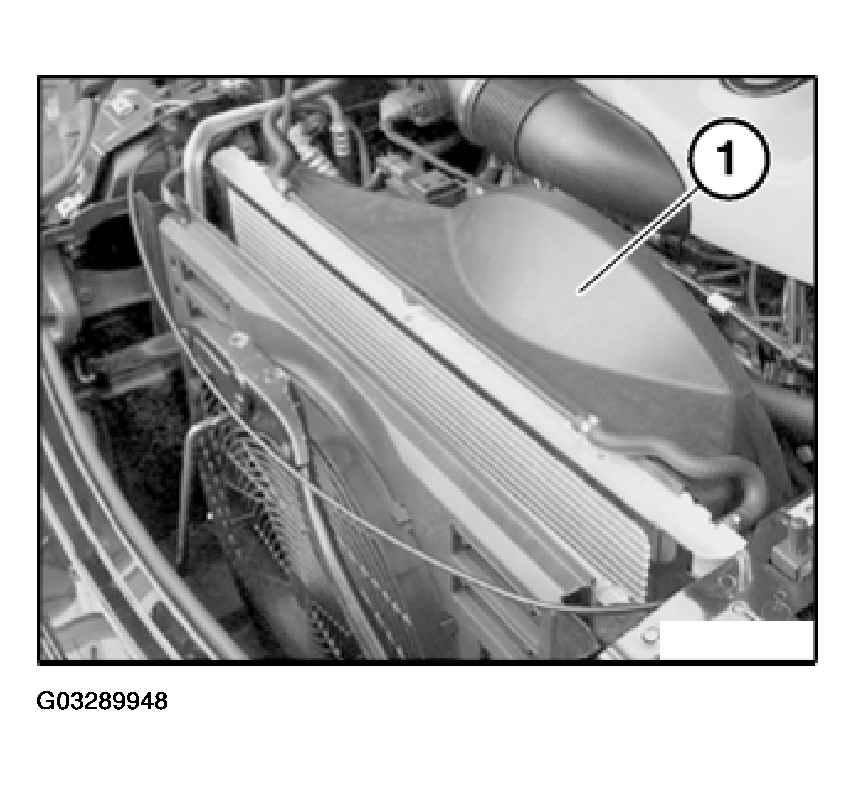

Raise fan cowl (1) approx. 3 cm.

Fig 4: Raising Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, this work step is shown on the fan cowl after it has been removed.

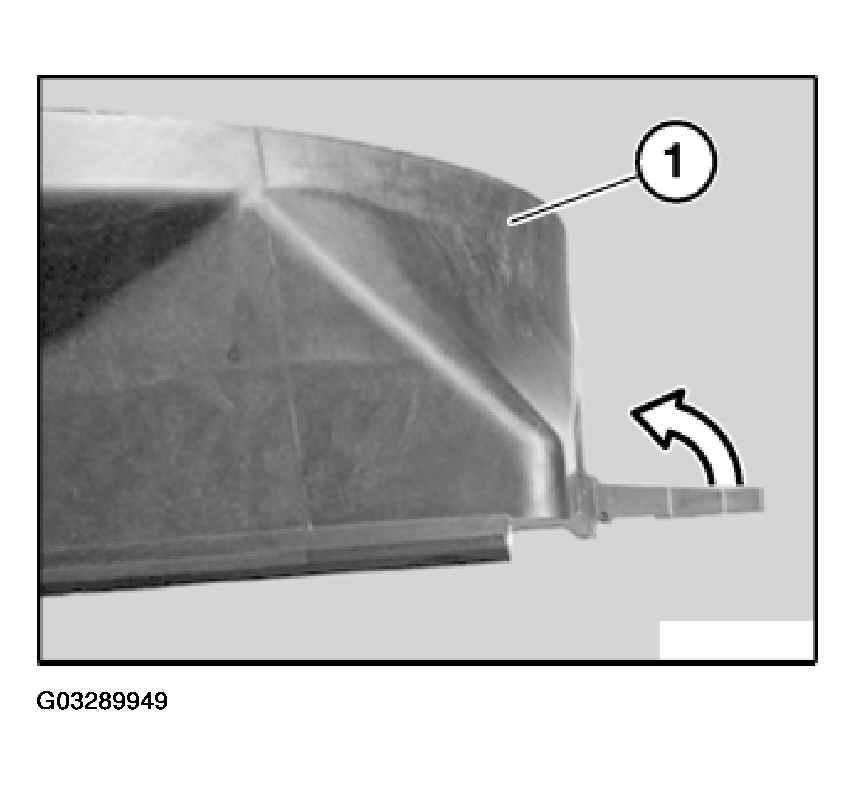

Fold left retaining tab to fan cowl (1).

Fig 5: Removing Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan cowl (1) towards top.

Installation:

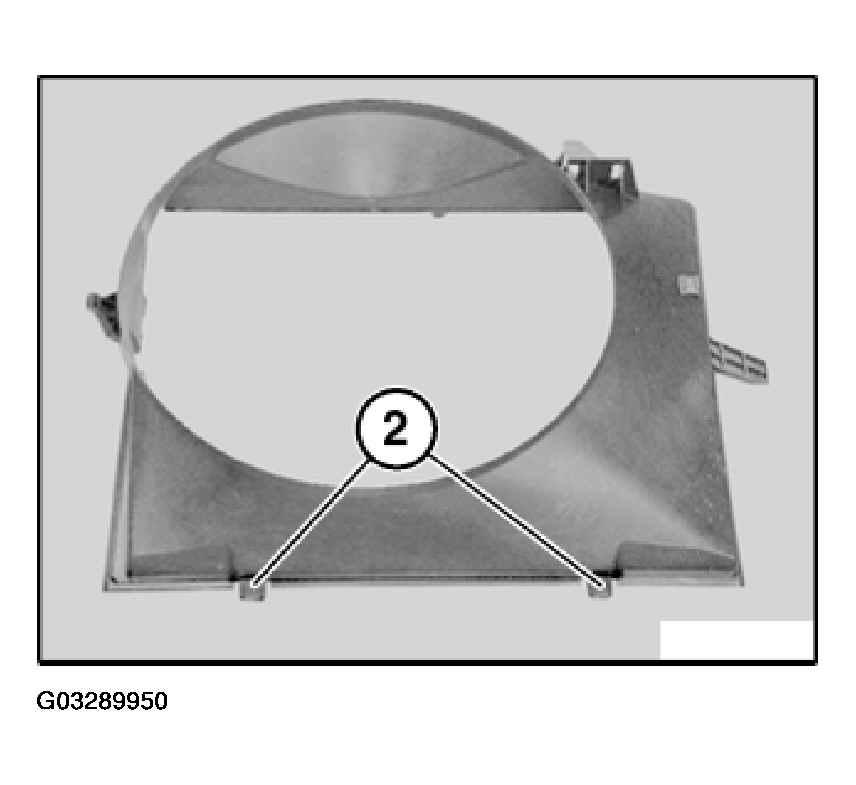

Insert retaining tab (2) at bottom on module carrier.

Fig 6: Inserting Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.
