Check Control And Control Display Fault Descriptions

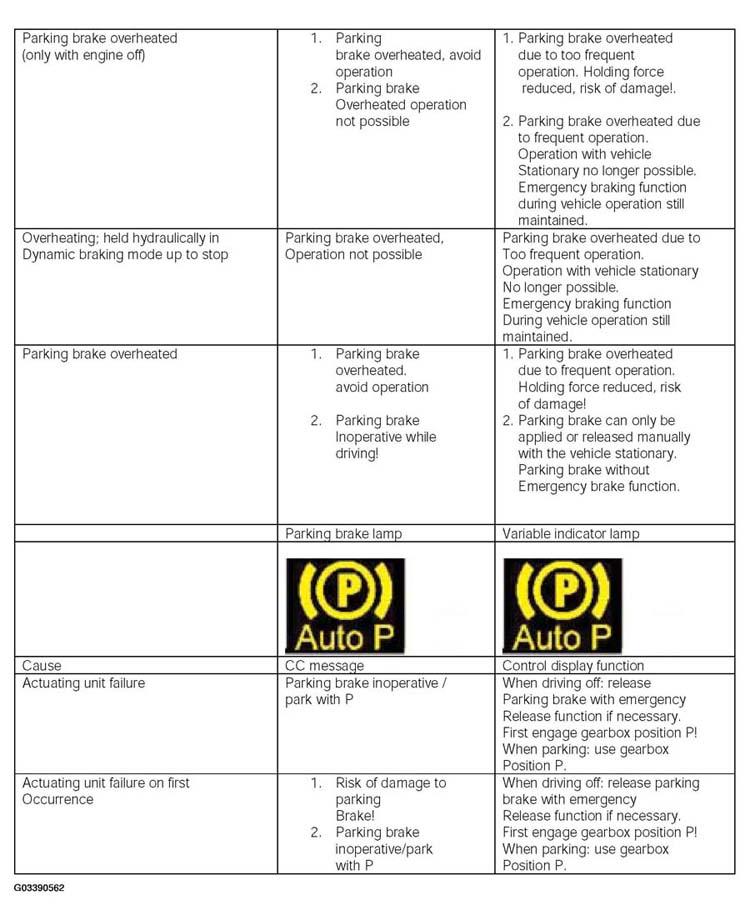

Fig 1: Checking Control And Control Display Fault Descriptions (1 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

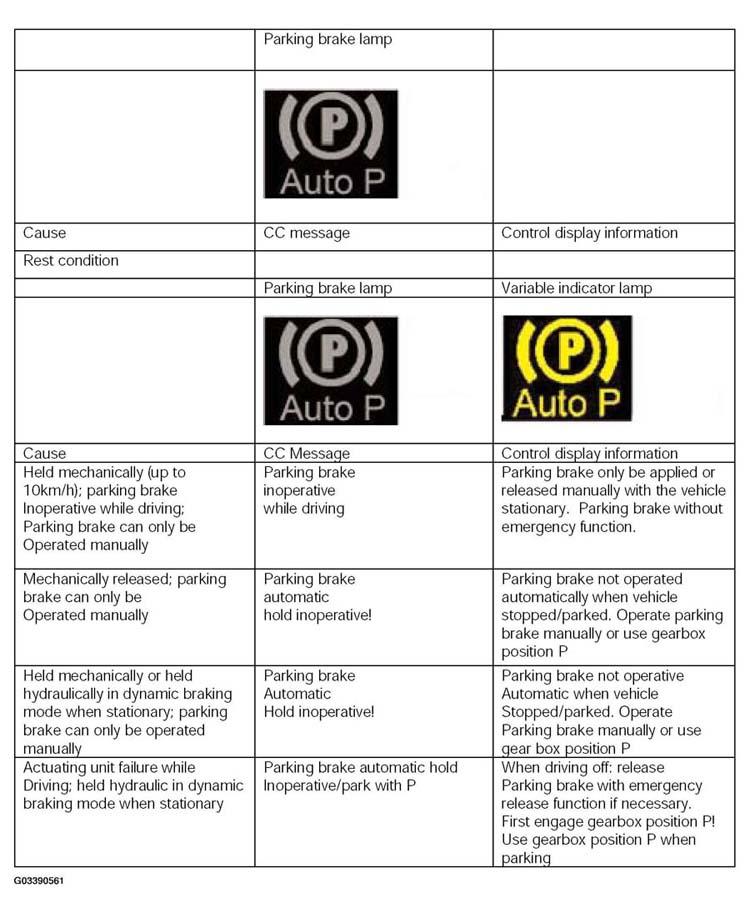

Fig 2: Checking Control And Control Display Fault Descriptions (2 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

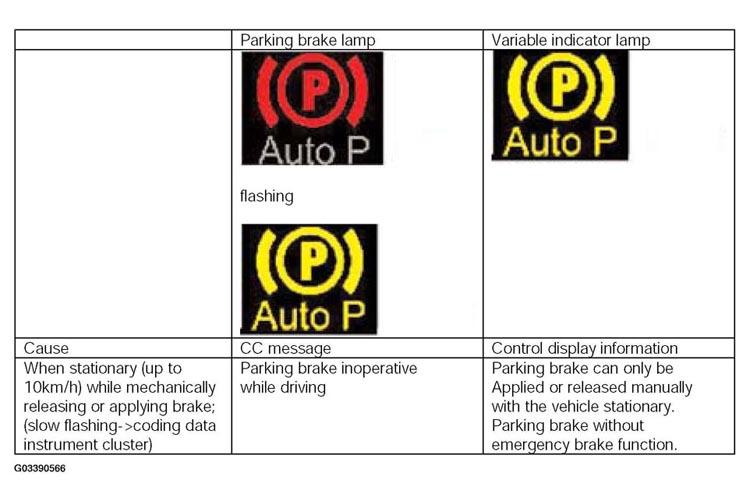

Fig 3: Checking Control And Control Display Fault Descriptions (3 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

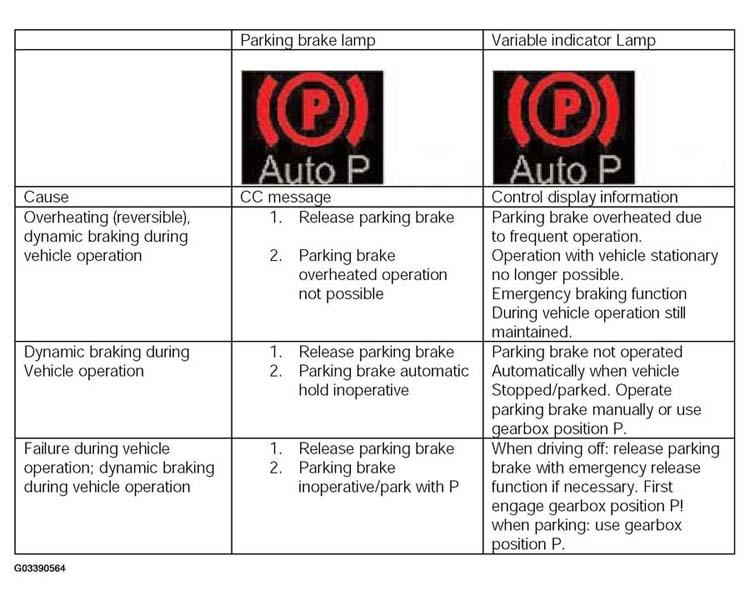

Fig 4: Checking Control And Control Display Fault Descriptions (4 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

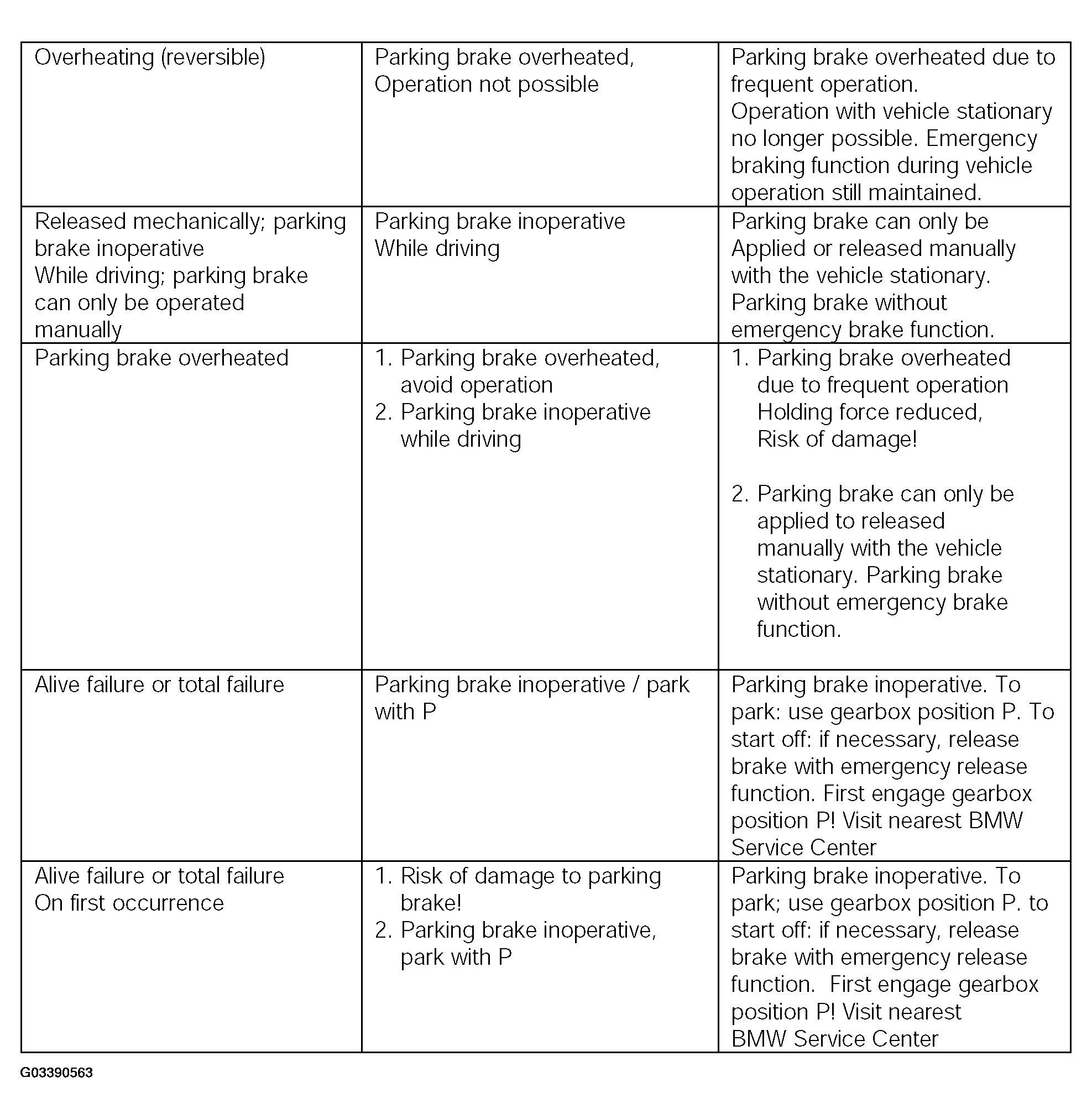

Fig 5: Checking Control And Control Display Fault Descriptions (5 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

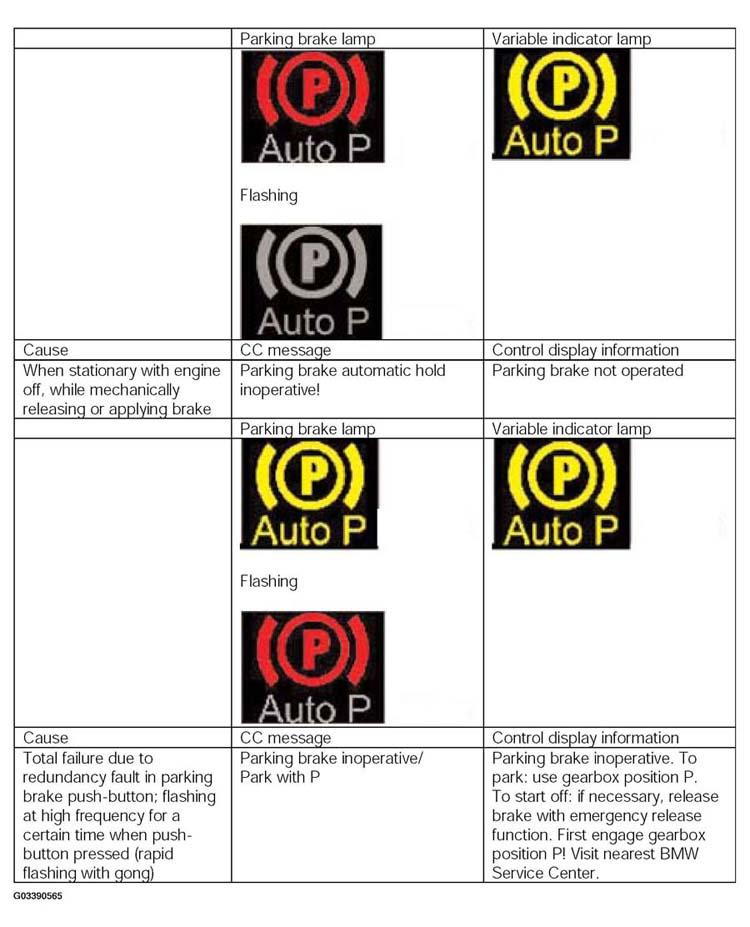

Fig 6: Checking Control And Control Display Fault Descriptions (6 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.
