SUSPENSION and STEERING: Wheels/Tires

The E65 is equipped with light alloy wheels including the spare wheel. The alloy wheels reduce unsprung weight and also provide an attractive, stylish appearance.

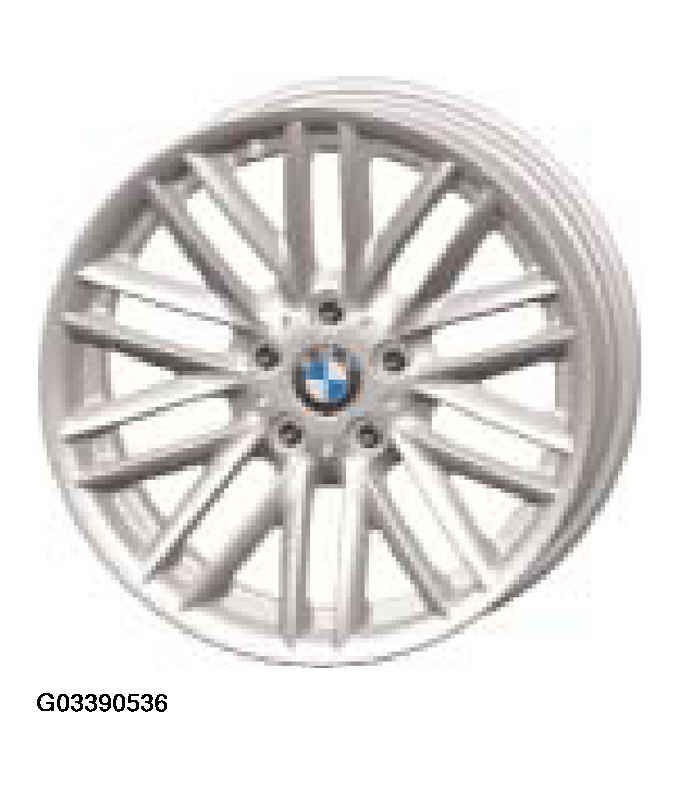

The 8J x 18 cast aluminum wheels shown to the right are standard equipment. The wheels are equipped with 245/45R-18 V rated all season tires.

Fig 1: Identifying 8J X 18 Cast Aluminum Wheels

Courtesy of BMW OF NORTH AMERICA, INC.

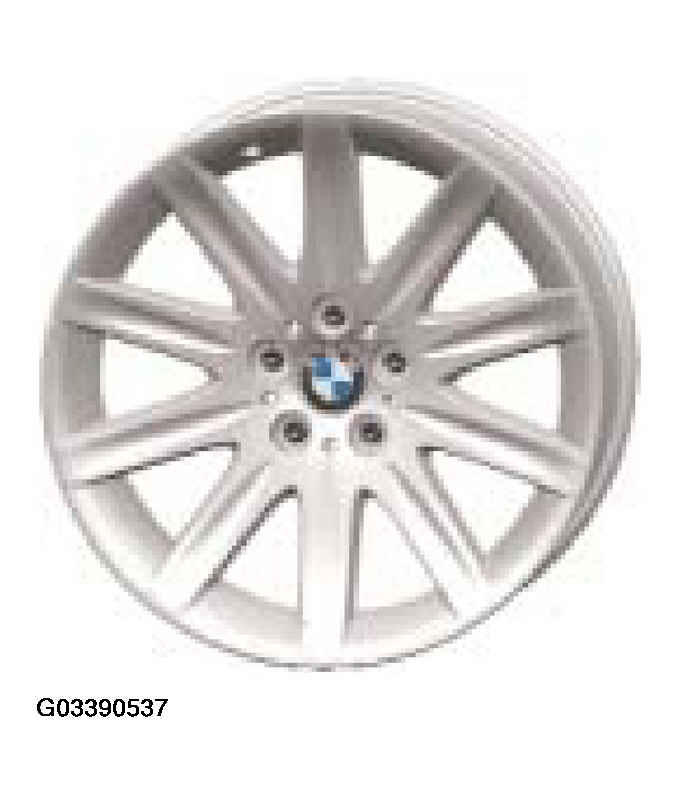

The optional  cast aluminum wheels shown to the right are different sizes for the front and rear:

• Front Wheel = 9J x 19 with 245/45R -19 Performance tire
• Rear Wheel = 10J x 19 with 275/40R -19 Performance tire
  Fig 2: Identifying Cast Aluminum Wheels

  Courtesy of BMW OF NORTH AMERICA, INC.

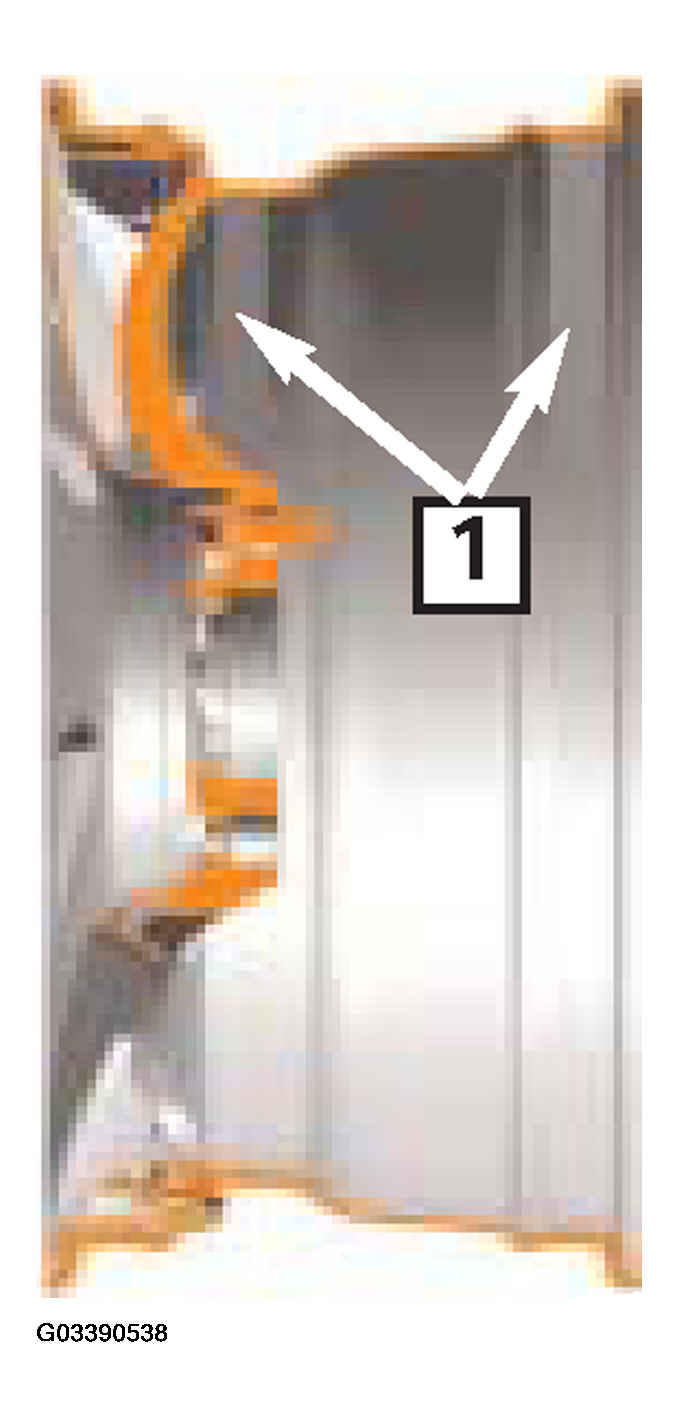

Adhesive balance weights are used on the E65 wheels. The weights are installed on the inside of the rim on the designated precision cut areas for dynamic balancing.

1. Bonding surfaces for balance weights
   Fig 3: Identifying Bonding Surfaces For Balance Weights

   Courtesy of BMW OF NORTH AMERICA, INC.
