11 14 085 Removing and installing top right timing case cover (N62 / N62TU)
(cylinder bank 1 to 4)
Necessary preliminary tasks:
- Remove right cylinder head cover, refer to 11 12 006 Removing and installing / sealing right cylinder head cover (N62 / N62TU)
- Remove vacuum pump, refer to 11 66 000 Removing and installing/replacing vacuum pump (N62) .
- Remove both solenoid valves on right side, refer to 11 36 720 Removing and installing/replacing both solenoid valves on right side (N62)

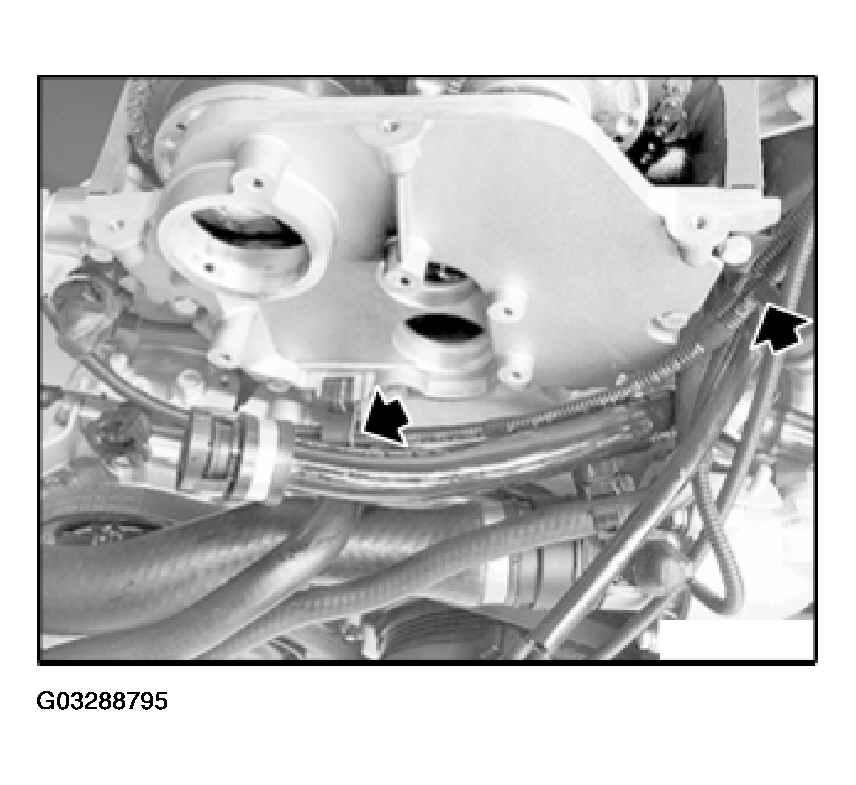

Remove cable from holder.

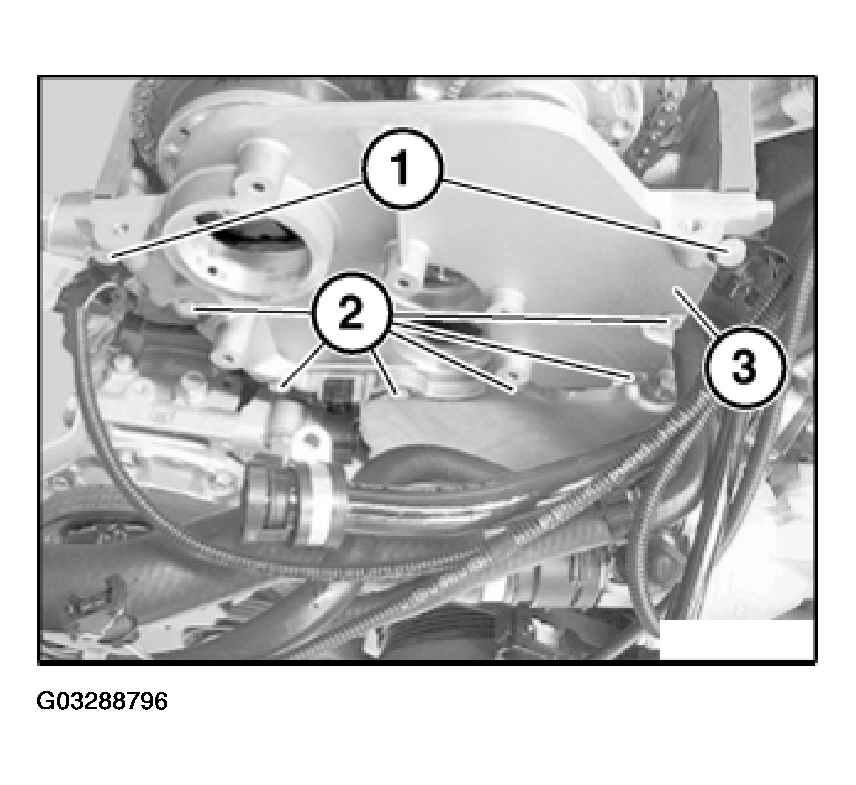

Release screws (1 and 2).
Remove timing case cover (3).
Installation:

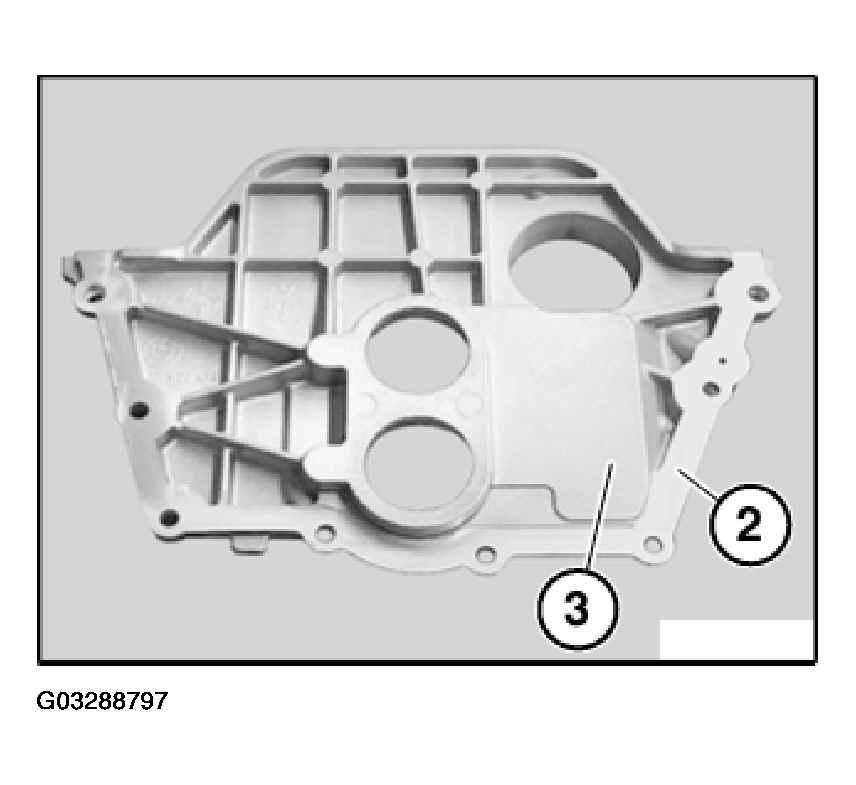

Free sealing face (2) on timing case cover (3) of seal debris and clean.
Installation:

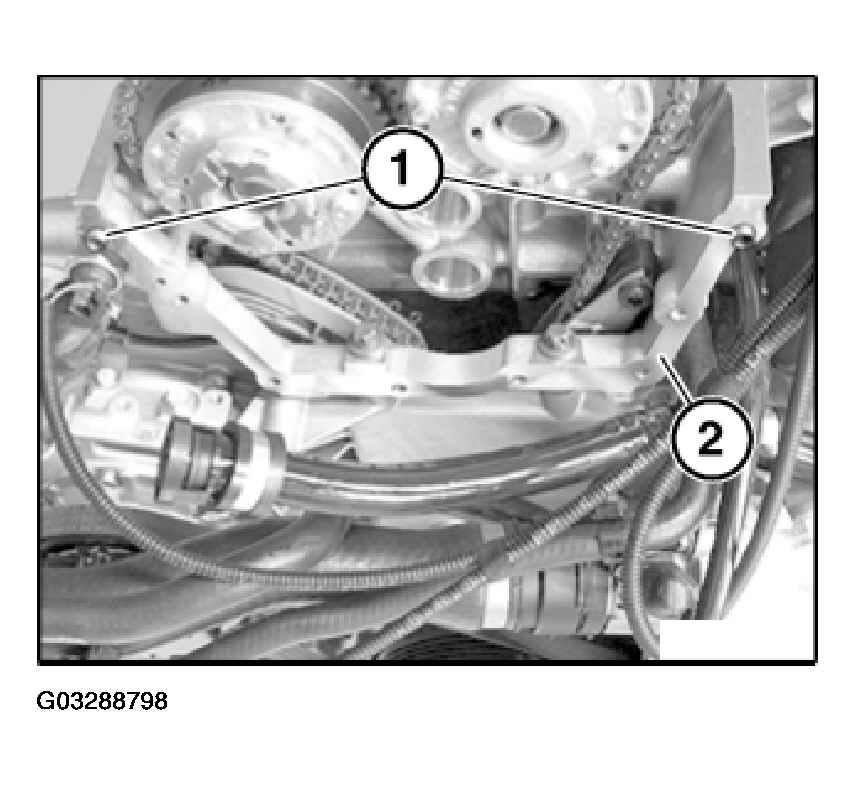

Check adapter sleeves (1) for damage and correct installation position; replace if necessary.
Free sealing face (2) of seal debris and clean.
Installation:

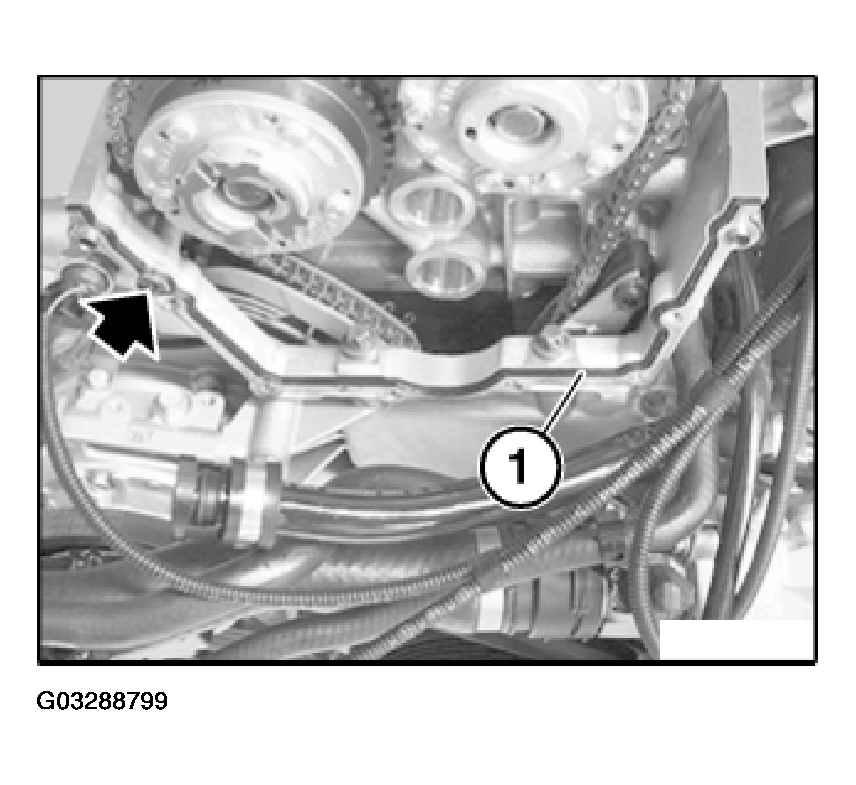

Replace gasket (1) and check for correct installation position.
