11 31 032 Removing and installing/replacing left inlet camshaft (N62 from 9/03): Installation

Installation of inlet camshaft is described separately from removal.

Clean all bearings and cams of inlet camshaft and lubricate with engine oil.

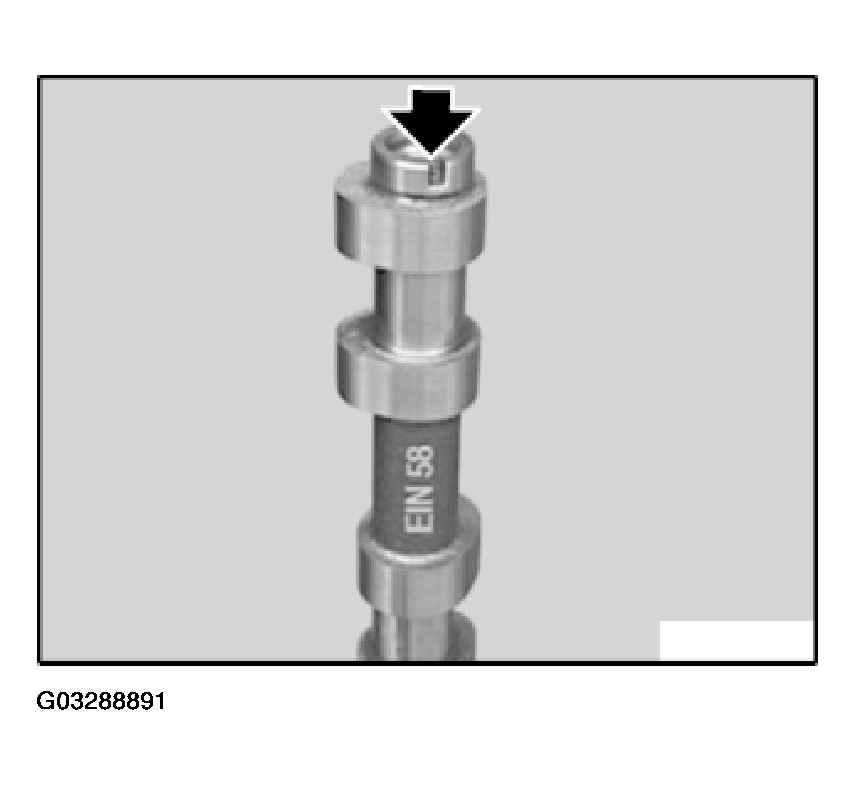

NOTE: Camshaft has a groove and sensor gear has a lug for fastening purposes.

Fig 1: Identifying Camshaft Groove

Courtesy of BMW OF NORTH AMERICA, INC.

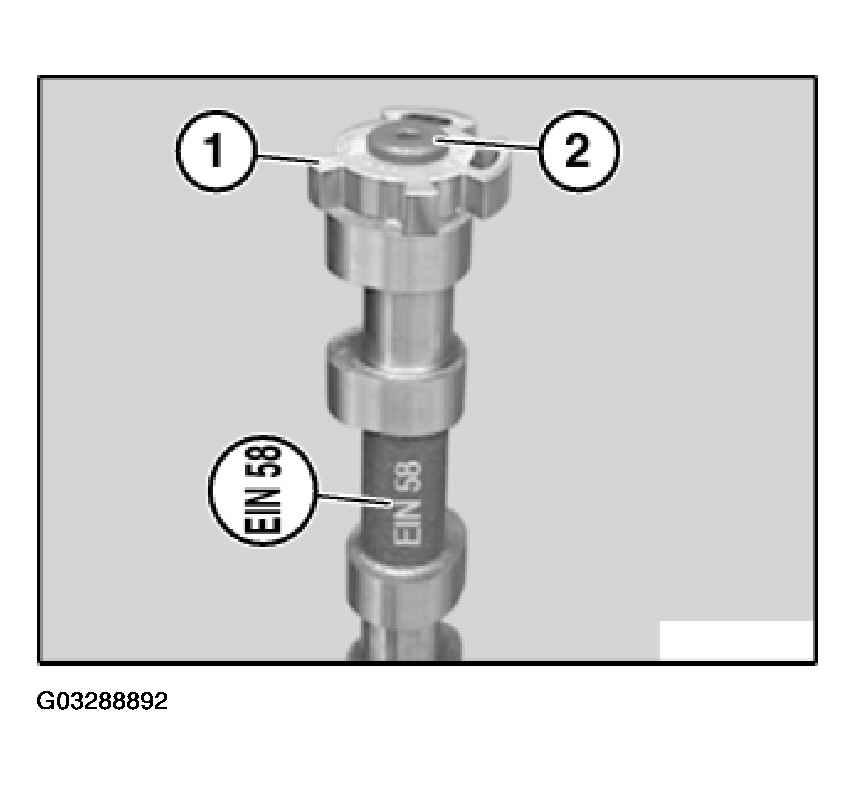

Fit sensor gear (1) and align to groove in camshaft.

Fig 2: Fitting Sensor Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (2) and tighten down.

Tightening torque of screw (2) 11 31 14AZ.

Installing compression rings (1):

IMPORTANT: Plain compression rings (1) can easily break.

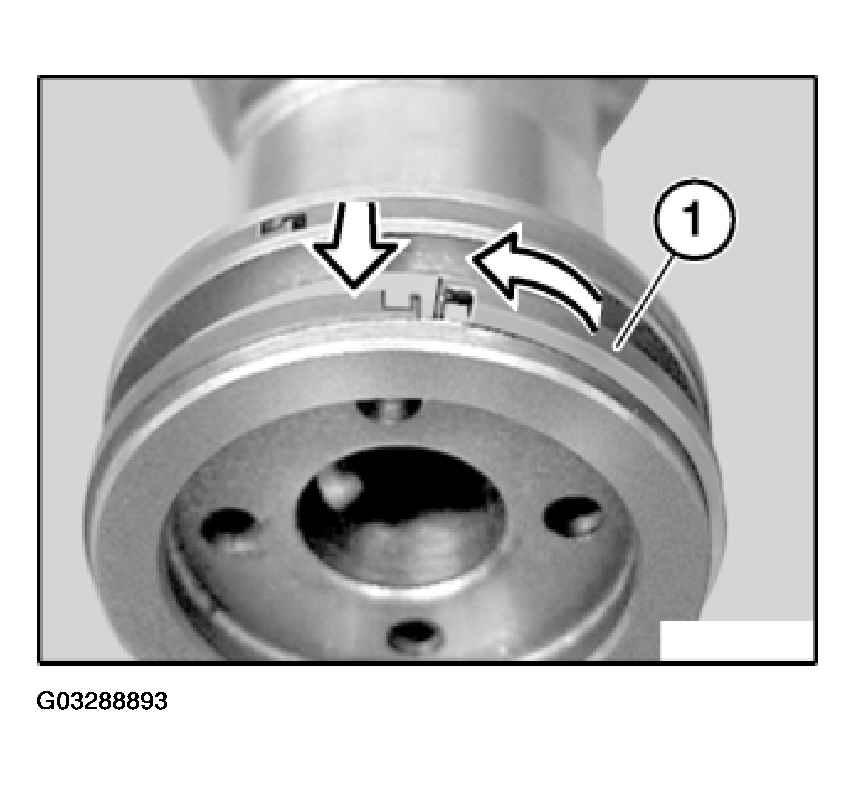

Carefully pull compression ring (1) apart and install from front.

Fig 3: Installing Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Press compression ring (1) on one side into groove, install catch on other side.

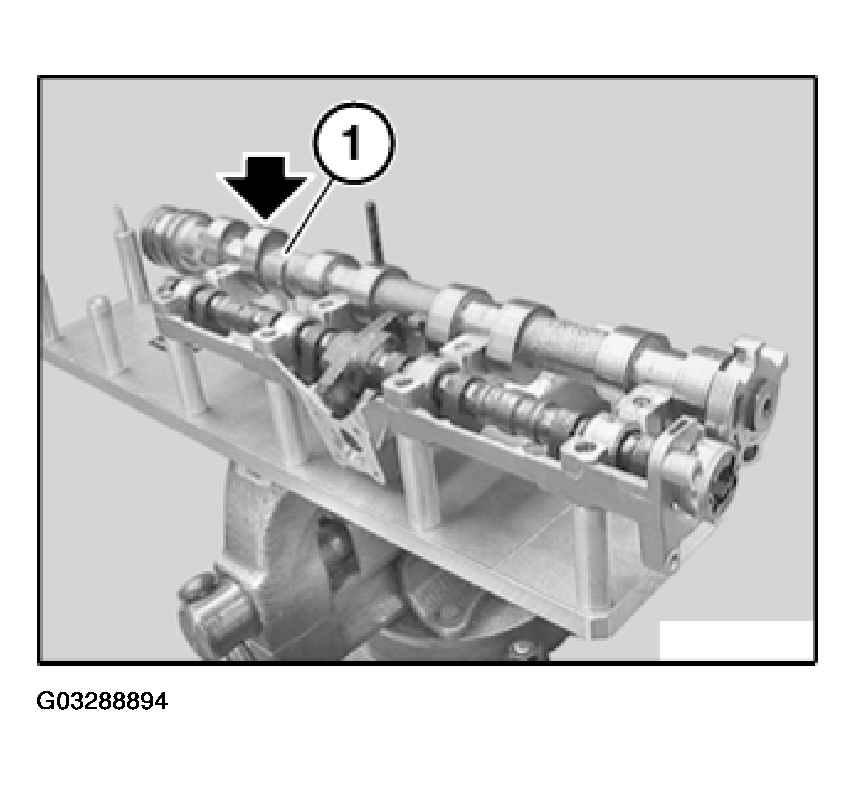

Insert inlet camshaft (1) so that cams point upwards at cylinder 5 as shown in illustration.

Fig 4: Inserting Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

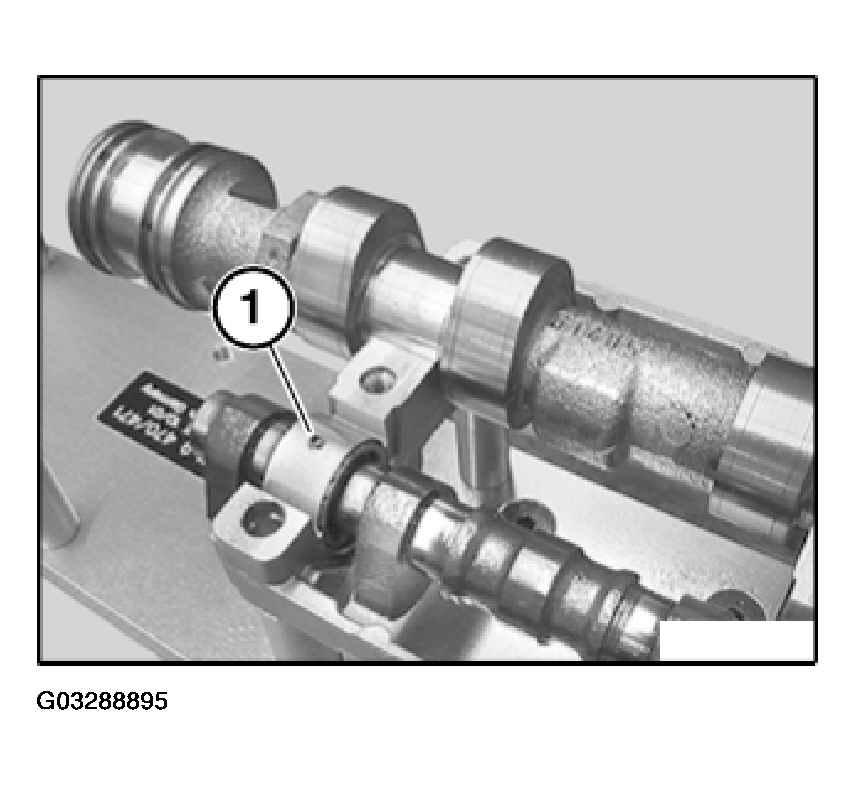

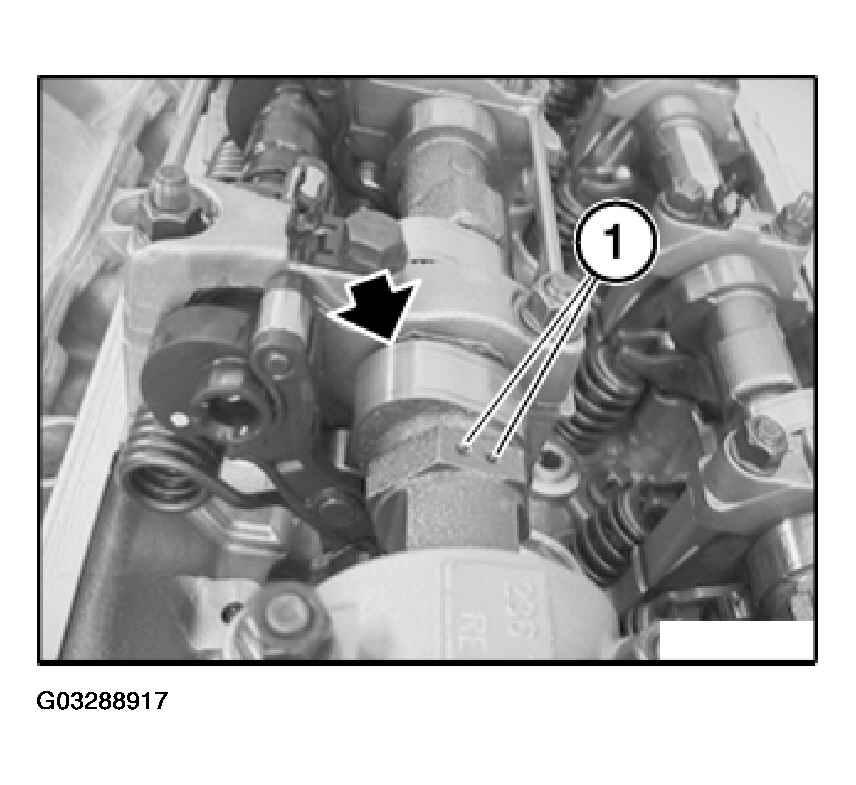

Make sure bearing shells (1) of eccentric shaft are engaged in bearing bracket.

NOTE: Bearing shell (1) is guided in a groove in bearing cap.

Fig 5: Identifying Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Check dowel sleeves (1) for damage and correct installation position.

Fig 6: Checking Dowel Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Bearing caps are marked as illustrated with R E2 to R E5.

Fig 7: Identifying Bearing Cap Marks

Courtesy of BMW OF NORTH AMERICA, INC.

Fit bearing caps R E2 to R E5.

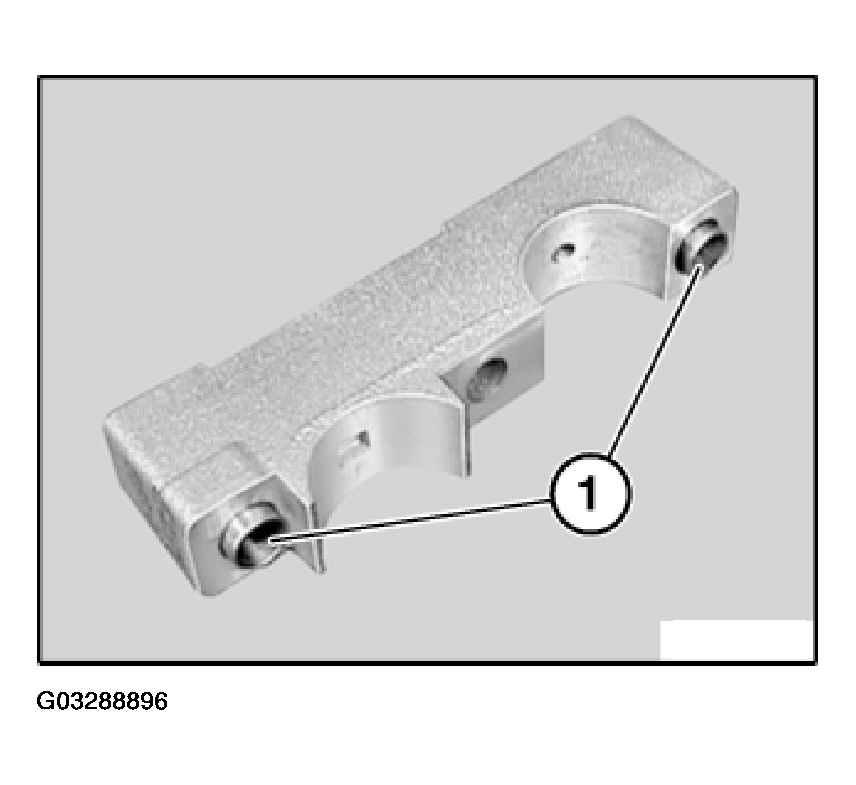

NOTE: Initially tighten special tool 11 9 473 without play only.

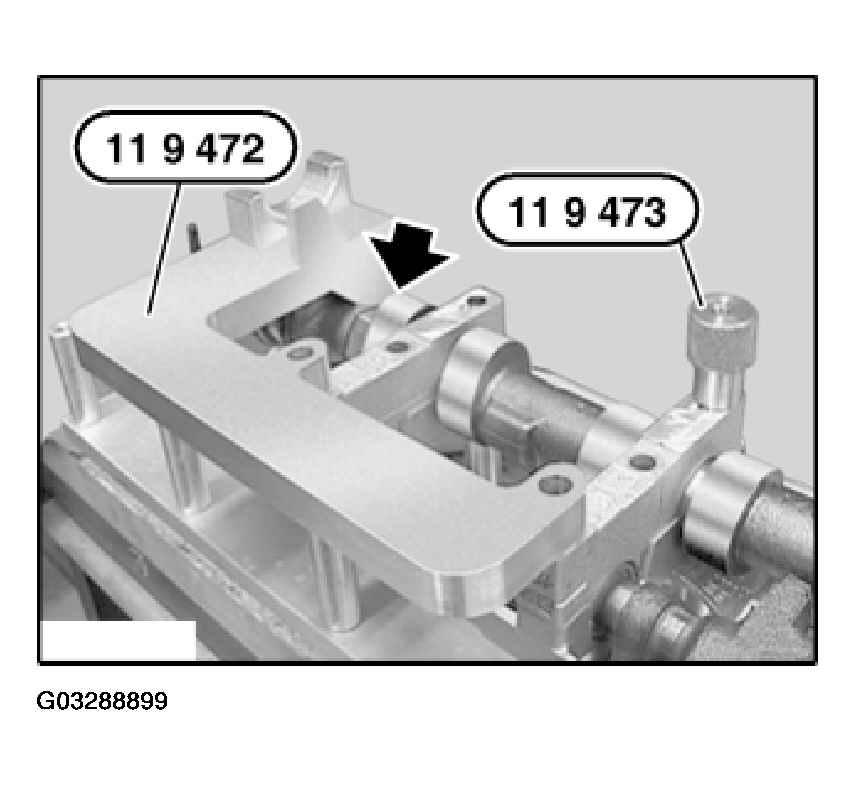

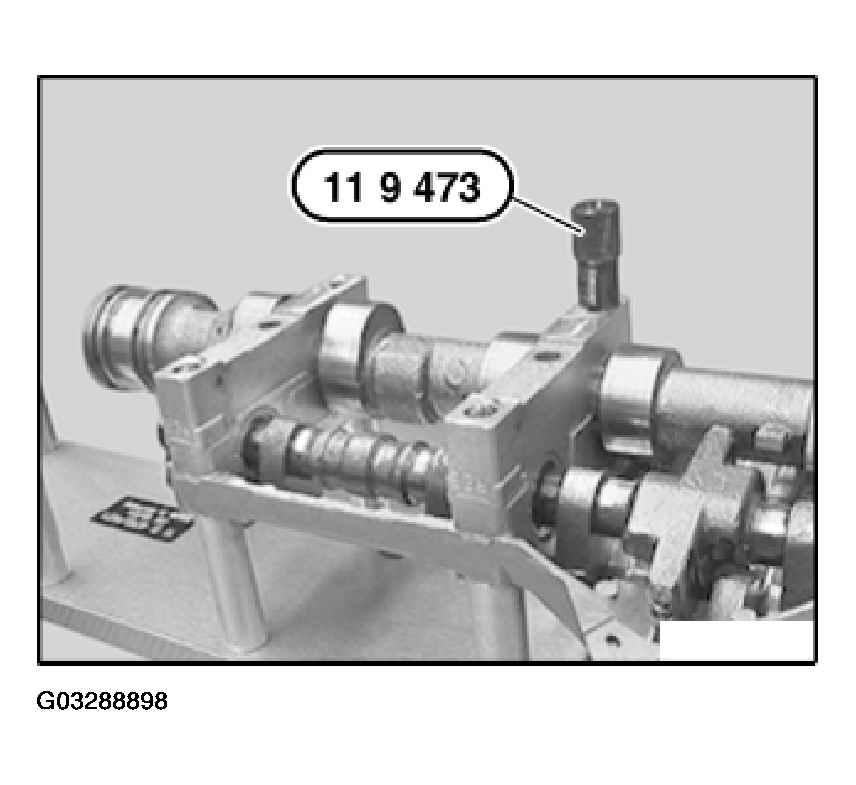

Secure bearing bracket and bearing cap with nut (special tool 11 9 473).

Fig 8: Securing Bearing Bracket And Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The mounting of the bearing bracket described later can only be performed if the first bearing of the inlet camshaft is aligned with special tool 11 9 472.

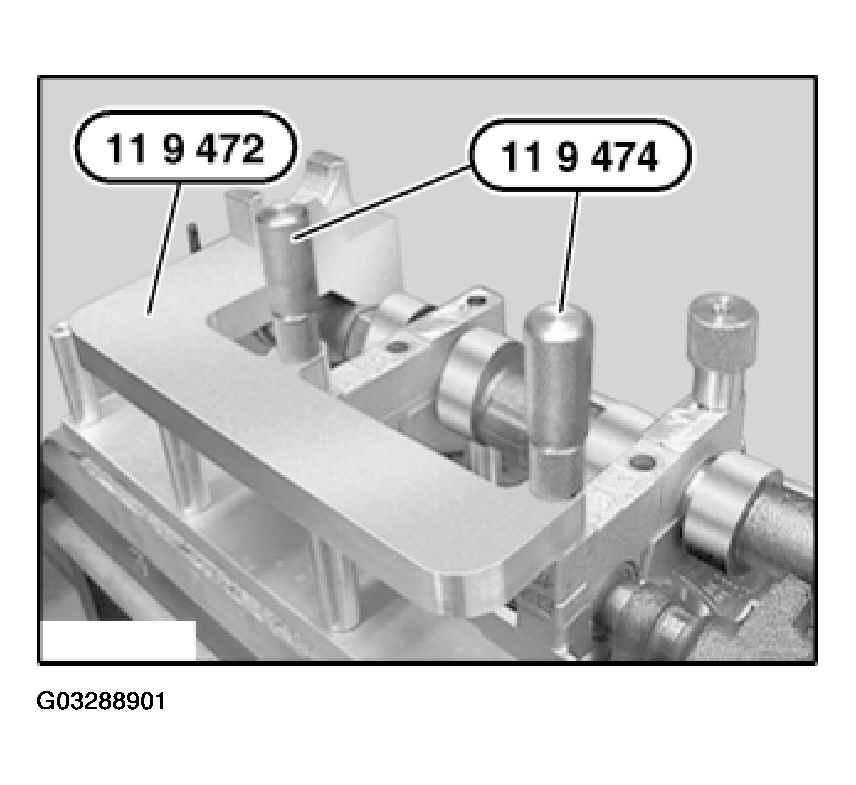

Fit special tool 11 9 472 as shown in illustration and align inlet camshaft.

Fig 9: Aligning Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

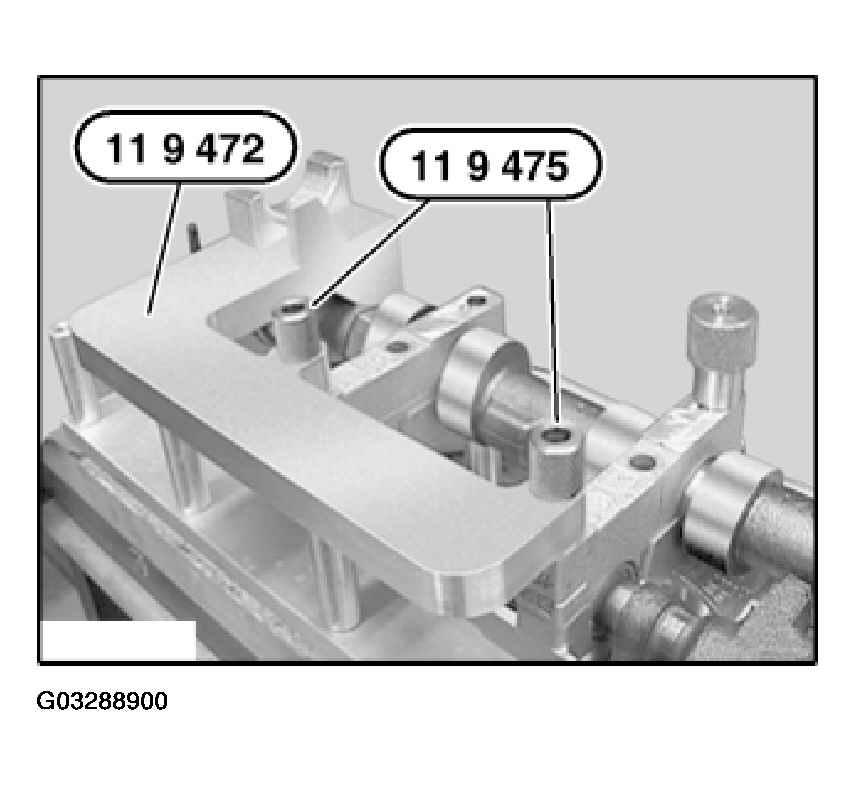

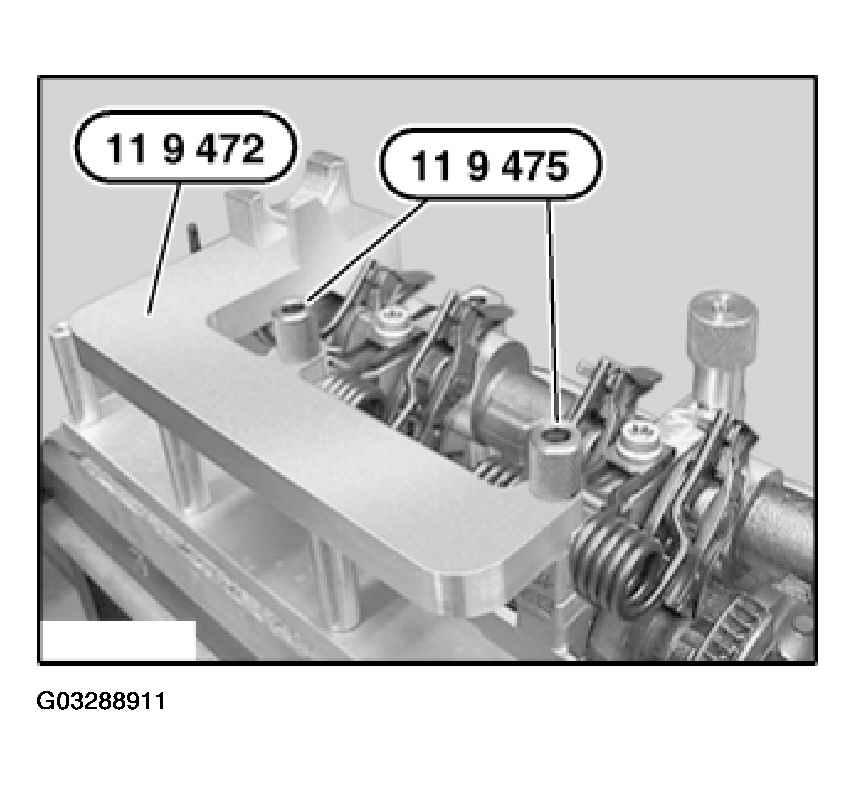

Fit centering sleeves (special tool 11 9 475) and align special tool 11 9 472 to bearing caps 2 and 3.

Fig 10: Fitting Centering Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

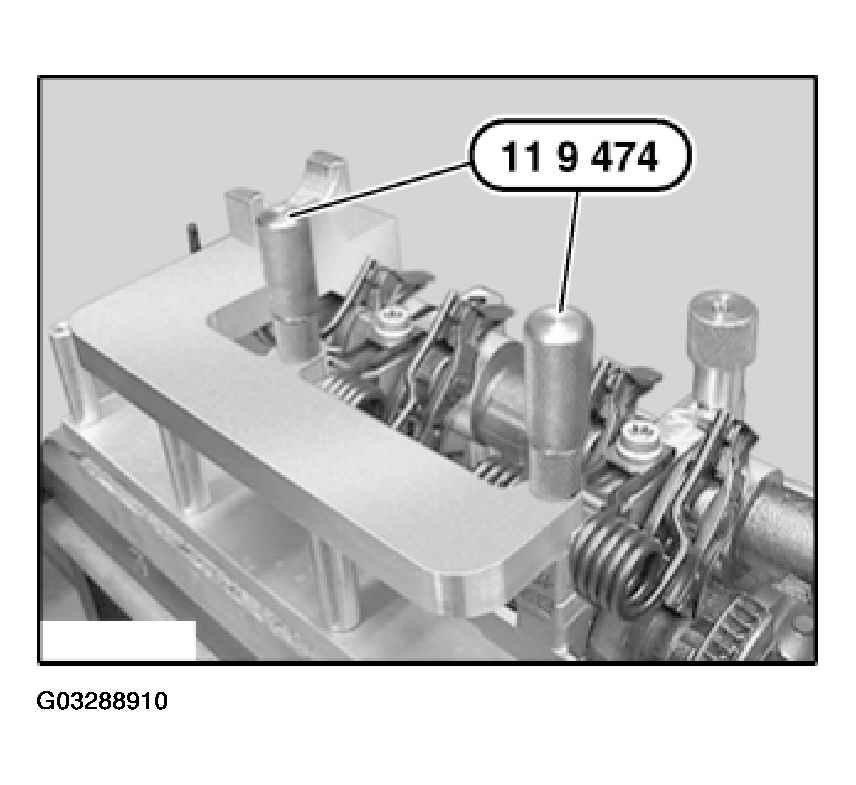

Insert special tool 11 9 474 and initially tighten without play.

Fig 11: Inserting Special Tool (11 9 474)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Special tools 11 9 472 / 11 9 474 and 11 9 475 remain fitted until all torsion springs and intermediate levers have been installed.

NOTE: Installation of the intermediate levers and torsion springs is described on the 8th cylinder. The same procedure is applicable to cylinders 5 to 7.

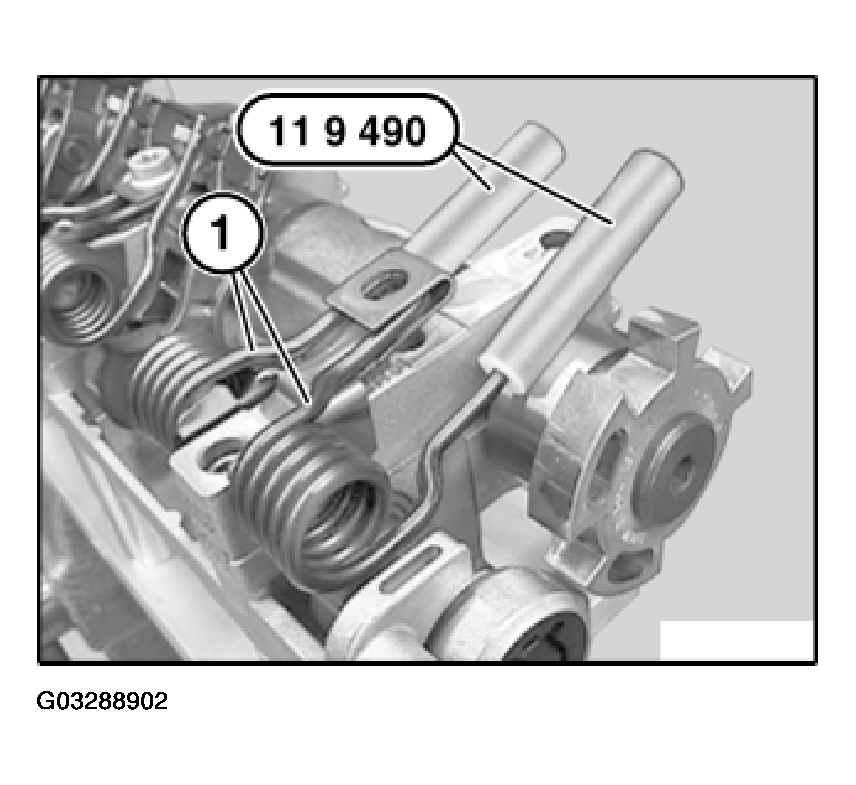

Attach special tool 11 9 490 to ends of torsion spring. Install torsion spring (1).

Fig 12: Installing Torsion Spring

Courtesy of BMW OF NORTH AMERICA, INC.

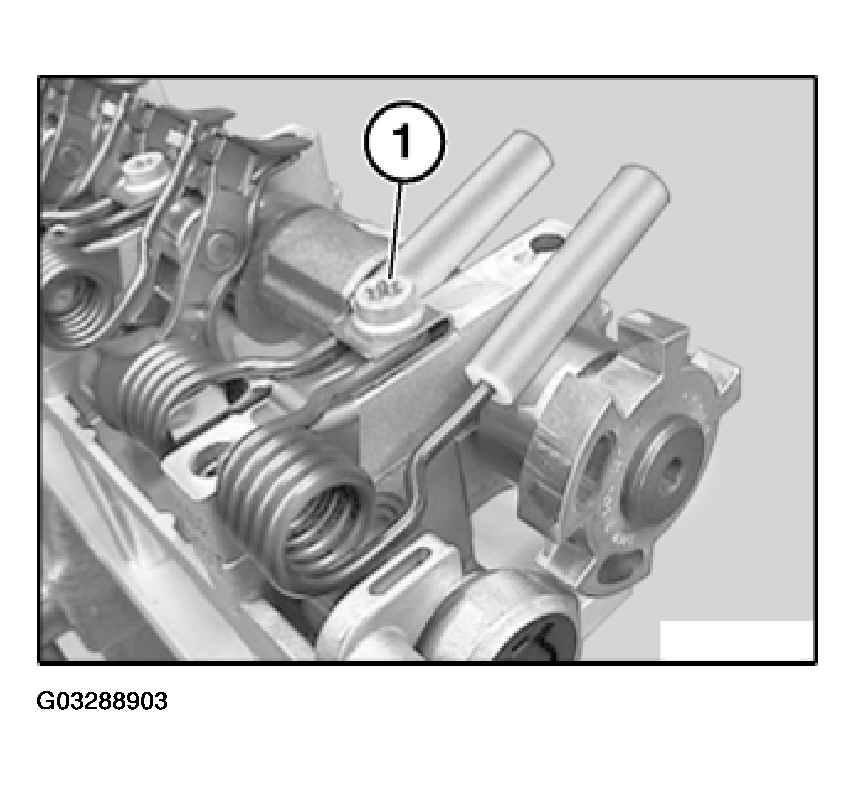

Insert screw (1) and tighten down.

Fig 13: Installing Torsion Spring Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Intermediate levers (2) are divided into individual tolerance classes.

Fig 14: Identifying Intermediate Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Only intermediate levers of the same tolerance class may be fitted in a single engine.

The tolerance classes are designated as illustrated with the numbers from 1 to 5.

Used intermediate levers (2) may only be reused in the same position.

Lubricate all sliding surfaces on intermediate lever (2) with engine oil.

Raise torsion spring (1) with special tool 11 9 480.

Fig 15: Raising Torsion Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Detach special tool 11 9 490.

Hold torsion spring (1) with special tool 11 9 480.

Install intermediate lever (2) from above.

Insert end of torsion spring (1) into guide on intermediate lever (2).

Fig 16: Inserting End Of Torsion Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Raise second end of torsion spring with special tool 11 9 480.

Fig 17: Raising Second End Of Torsion Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Detach special tool 11 9 490.

Hold torsion spring (1) with special tool 11 9 480.

Fig 18: Inserting End Of Torsion Spring Into Guide On Intermediate Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Install intermediate lever (2) from above.

Insert end of torsion spring (1) into guide on intermediate lever (2).

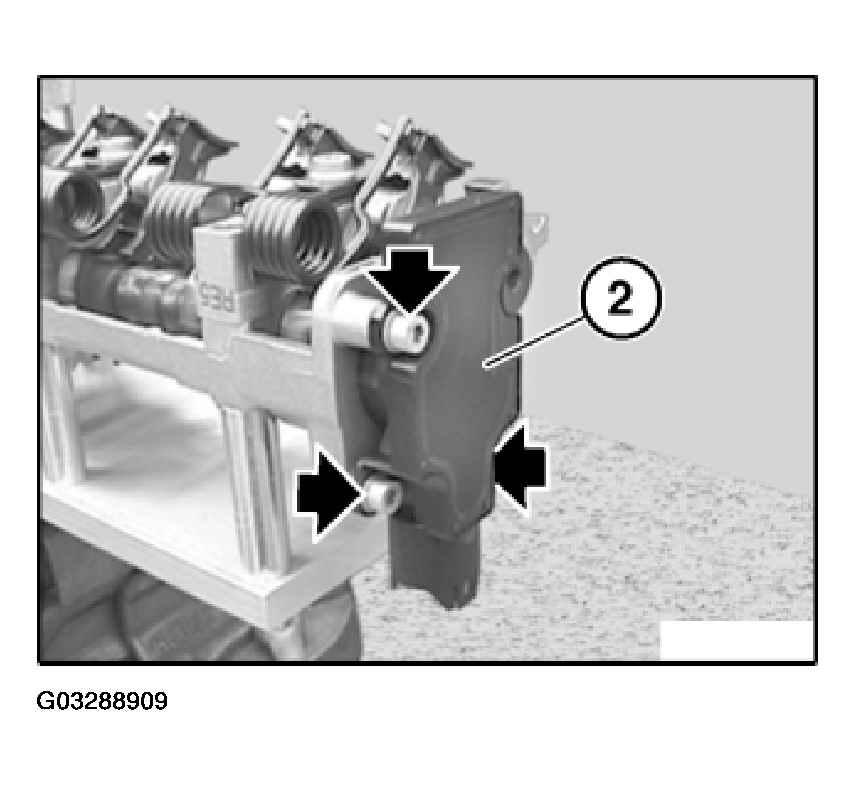

Install eccentric shaft sensor (2).

Fig 19: Installing Eccentric Shaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws and tighten down eccentric shaft sensor (2).

Remove special tool 11 9 474.

Fig 20: Removing Special Tool (11 9 474)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 472 and special tool 11 9 475.

Fig 21: Removing Special Tool (11 9 472) And Special Tool (11 9 475)

Courtesy of BMW OF NORTH AMERICA, INC.

Ends of compression rings (1) point upwards.

Make sure compression rings (1) are engaged at ends.

Fig 22: View Of End Of Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Rocker arms (1) slip slightly when bearing bracket is fitted.

Make sure rocker arms (1) are secured as illustrated on hydraulic valve clearance compensating elements and on valves.

Fig 23: Securing Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Align rocker arms (1) straight.

Remove special tool 11 9 473.

Fig 24: Removing Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing bracket (1) from special tool 11 9 470.

IMPORTANT: Do not tilt bearing bracket (1).

Lower bearing bracket (1) from above and carefully bring into contact with cylinder head.

Fig 25: Installing Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Insert nuts and tighten by hand without play.

IMPORTANT: Make sure none of the intermediate levers or rocker arms have slipped out.

Tighten down nuts from inside to outside.

Tightening torque 11 31 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

IMPORTANT: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

Fit bearing cap R E1 in such a way that marking is legible from inlet side.

Fig 26: Fitting Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Install nuts and tighten down.

Tightening torque 11 31 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Rotate inlet camshaft in direction of rotation until cam on 5th cylinder points upwards at an angle as shown in illustration.

Fig 27: Rotating Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The marking (1) on the hexagon drive of the inlet camshaft faces upwards.

Install inlet and exhaust adjustment unit on left side. Refer to 11 36 047 Removing and installing/replacing inlet and exhaust adjustment units on left side (N62) .

Install spark plugs on cylinder bank 5 to 8.

Install left cylinder head cover. Refer to 11 12 005 Removing and installing / sealing left cylinder head cover (N62 / N62TU) .

Install ignition coils on cylinder bank 5 to 8.

Install servomotor for left eccentric shaft. Refer to 11 37 022 Removing and installing/replacing servomotor for left eccentric shaft (N62) .

Assemble engine.
