Steering Wheel Components

The Multi-Function Steering Wheel (MFL) in the E65 is the most complex steering wheel produced by BMW and consists of the following components:

• Steering wheel
• Airbag unit
• Left and right-hand function buttons
• Shift buttons
• Steering wheel module (control unit)

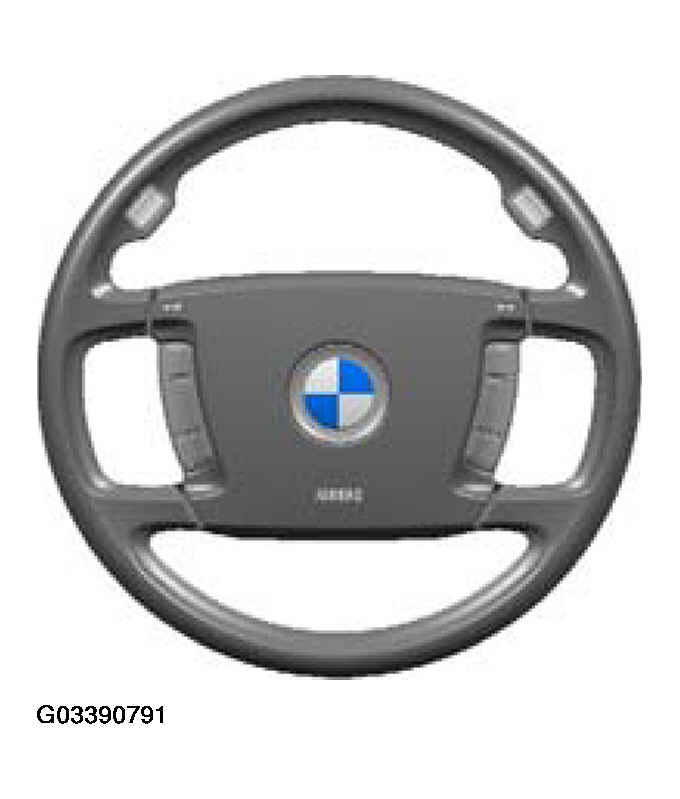

  Fig 1: Identifying Steering Wheel

  Courtesy of BMW OF NORTH AMERICA, INC.

In addition to the MFL buttons familiar from the E38, the transmission can now also be shifted from the steering wheel. The left-hand group of function buttons on the steering wheel are used to control the functions: voice input, audio/navIGATion/telephone (volume), telephone (send/end call).

The function buttons on the right operate the functions: "Low" program for the transmission, station search for radio channels, and an additional programmable function button.

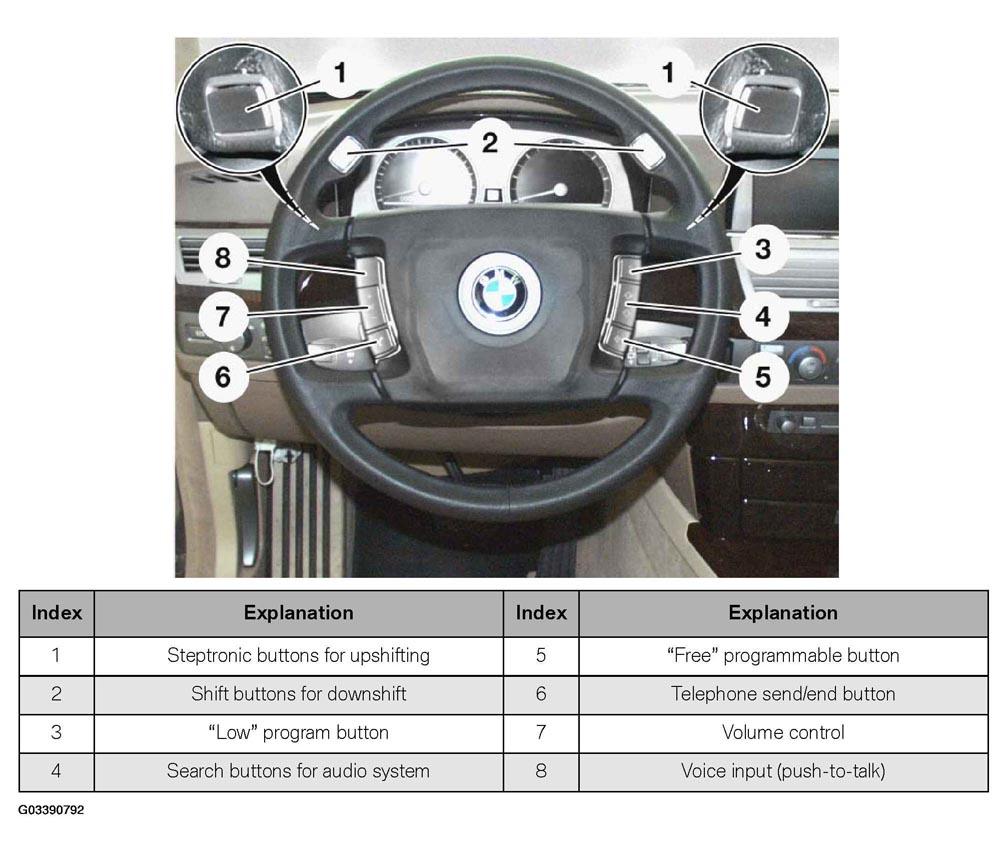

Fig 2: Identifying Additional Programmable Function Button

Courtesy of BMW OF NORTH AMERICA, INC.
