33 4 150 Removal and installation tool
Minimum set: Mechanical tools
SPECIAL TOOL DESCRIPTION
| In conjunction with: | 33 4 140, 33 3 371 |
|---|---|
| Note: | For removing and installing rubber mount on rear axle carrier |
| Series: | E38, E39, E39tou, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, RR1 |
| Storage location: | B38, B8, C7, C8 |
| SI number: | 1 06 94(801) |
| Order number: | 33 4 150 |
| Removal and installation tool | |

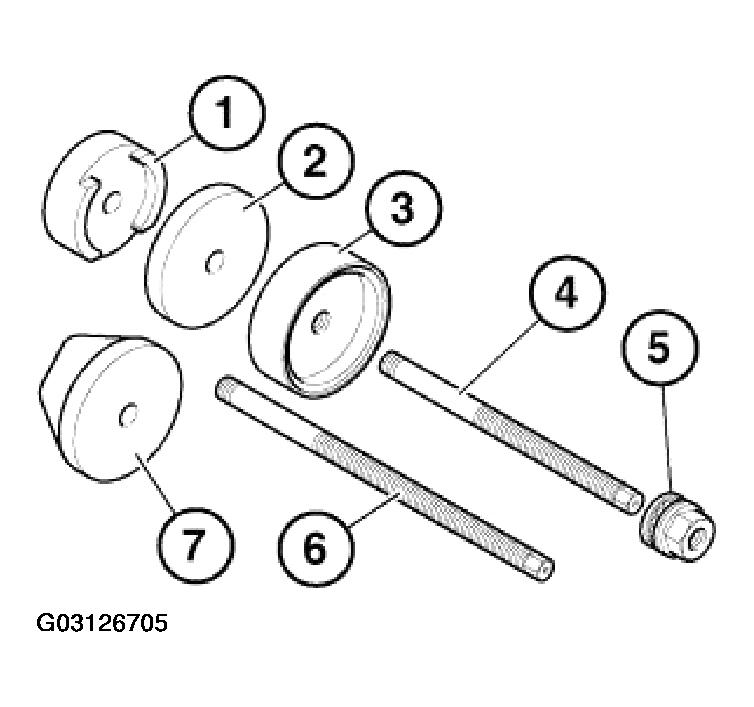

| Consisting of: | |
| 1 = 33 4 151 | Pressure plate |
|
NOTE:
For removal / model series: E38, E39, E46,E52
|
|
| 2 = 33 4 152 | Pressure plate |
|
NOTE:
For installation Model series: E38, E39, E46, E52, RR1
|
|
| 3 = 33 4 153 | Support plate |
|
NOTE:
For installation / model series: E38, E39, E46,E52
|
|
| 4 = 33 4 154 | Spindle with lock nut |
|
NOTE:
Model series: E38, E39, E46, E52, E60, E61, E63, E64
|
|
| 5 = 33 4 155 | Nut with bearing |
| In conjunction with: 33 3 371 (E46) | |
| 6 = 33 4 156 | Spindle, long |
|
NOTE:
Model series: E39/2, E65, E66, E67, RR1
|
|
| 7 = 33 4 157 | Pressure plate |
|
NOTE:
For installation - model series: E39/2, E65, E66, E67, RR1
|
|
| 8 = 33 4 158 | Pressure plate |
|
NOTE:
For removal - model series: E53, E65, E66, E67, RR1
|
|
| 9 = 33 4 159 | Support disk |
|
NOTE:
For installation - model series: E53, E65, E66, E67, RR1
|
