33 3 330 Removal and installation tool
Minimum set: Mechanical tools
SPECIAL TOOL DESCRIPTION
| Note: | For removing and installing ball joint and rubber mount in semi-trailing arm |
|---|---|
| Series: | E31, E36, E38, E39, E46, E60, E61, E63, E64, E65, E66, E67, E83, E85, RR1 |
| Storage location: | A14 |
| SI number: | 1 10 90(288) |
| Order number: | 33 3 330 |

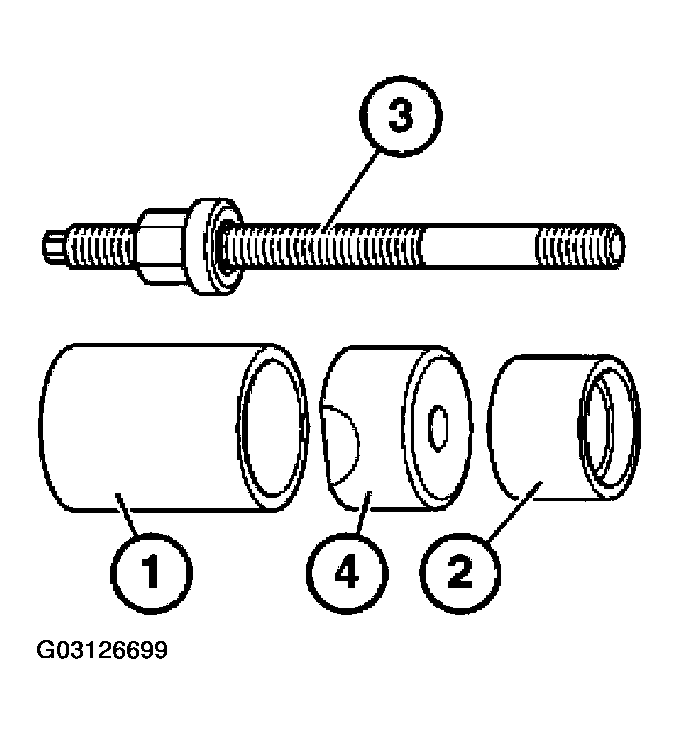

| Removal and installation tool | |
| Consisting of: | |
| 1 = 33 3 331 | Spacer sleeve |
|
NOTE:
For removing / model series: E36, E46
|
|
| 2 = 33 3 332 | Extractor sleeve |
|
NOTE:
Model series: E36, E46
|
|
| 3 = 33 3 333 | Spindle with forcing nut |
| 4 = 33 3 334 | Spacer sleeve |
|
NOTE:
For installing ball joint Model series: E31, E36, E38, E39, E46, E65, E66, E85
|
