61 35 175 Removing and installing/replacing rain sensor

Version with rain/light sensor.

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

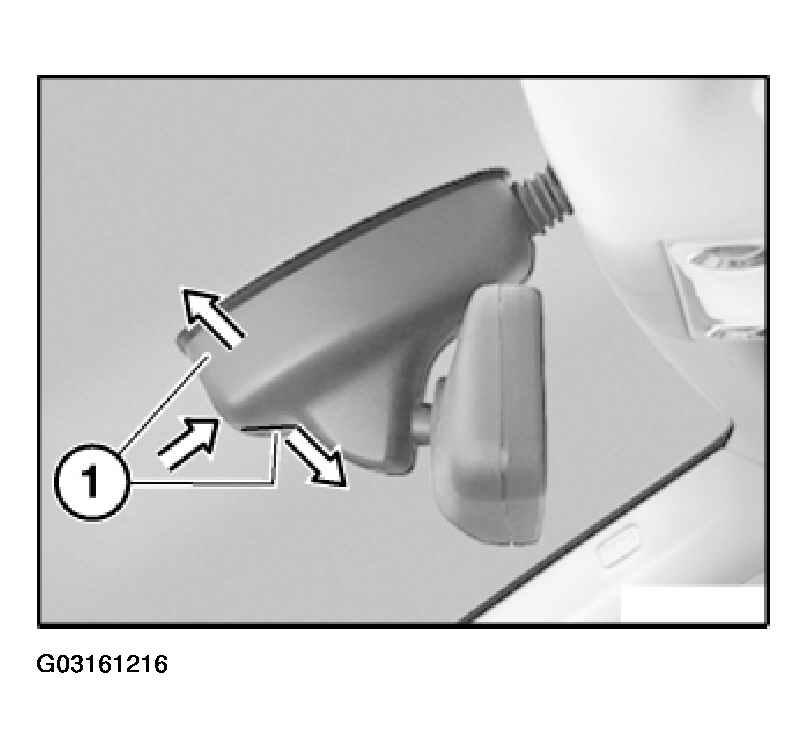

Fig 1: Open & Remove Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.

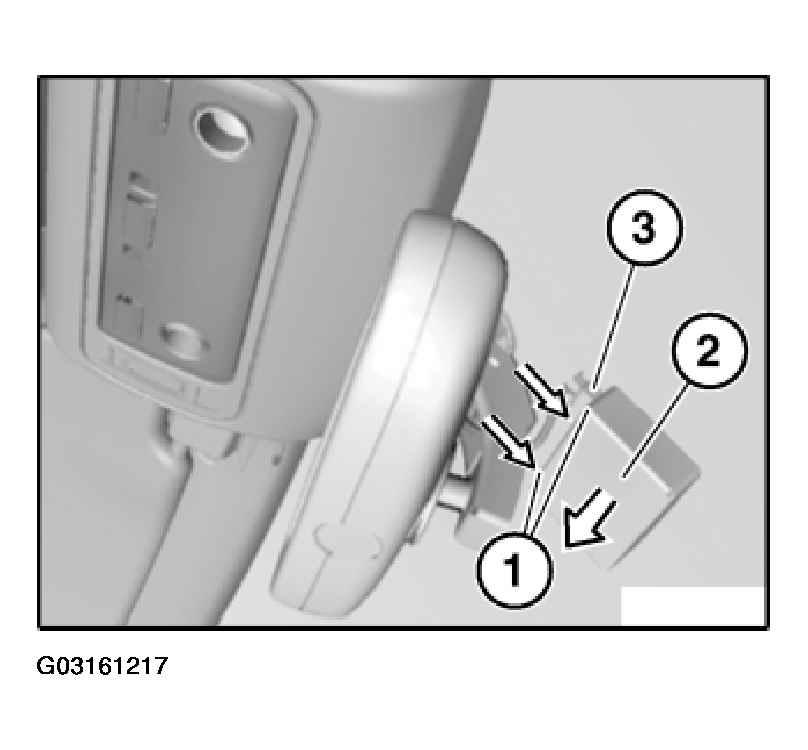

Fig 2: Removing Rain/Light Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not damage optical element below rain/light sensor (2).

If necessary, initialize rain/light sensor, refer to 61 35 680 INITIALIZING RAIN SENSOR .
