11 00 039 Checking compression of all cylinders (M60 / M62 / M73 / S62 / M54)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For illustration of Special Tools, refer to ENGINE - SPECIAL TOOLS - 5-SERIES (E39) article.

11 0 224
11 0 226

IMPORTANT: High tension - mortal danger!
Cut off power supply to ignition coils (disconnect plug connection at DME control unit).

Necessary preliminary tasks:

Connect charger or a second battery.
Read out fault memory of DME control unit
Pull fuel pump relay or fuel pump fuse.
Start engine and allow residual fuel to drain out (pressure reduction).
Remove all spark plugs. See 12 12 011 REPLACING ALL SPARK PLUGS (M60, M62)

IMPORTANT: Check Schrader valve on special tool 11 0 226 for tight fit.

Screw special tool 11 0 226 by hand into spark plug thread and connect special tool 11 0 224.

NOTE: Check that sealing ring is in perfect condition.

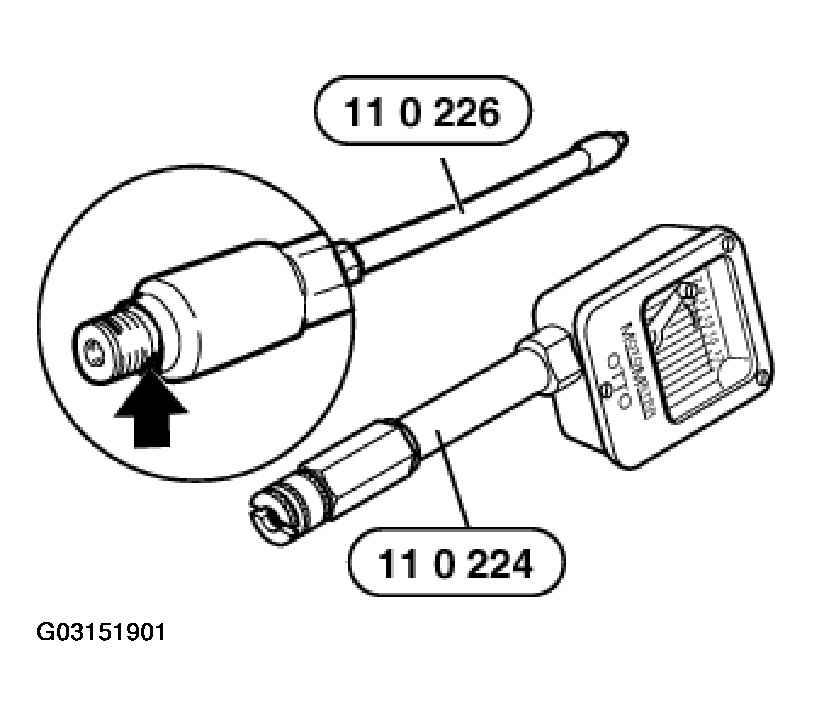

Fig 1: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Depress accelerator and actuate starter until compression stops rising.

Compression pressure: 12-14 bar.

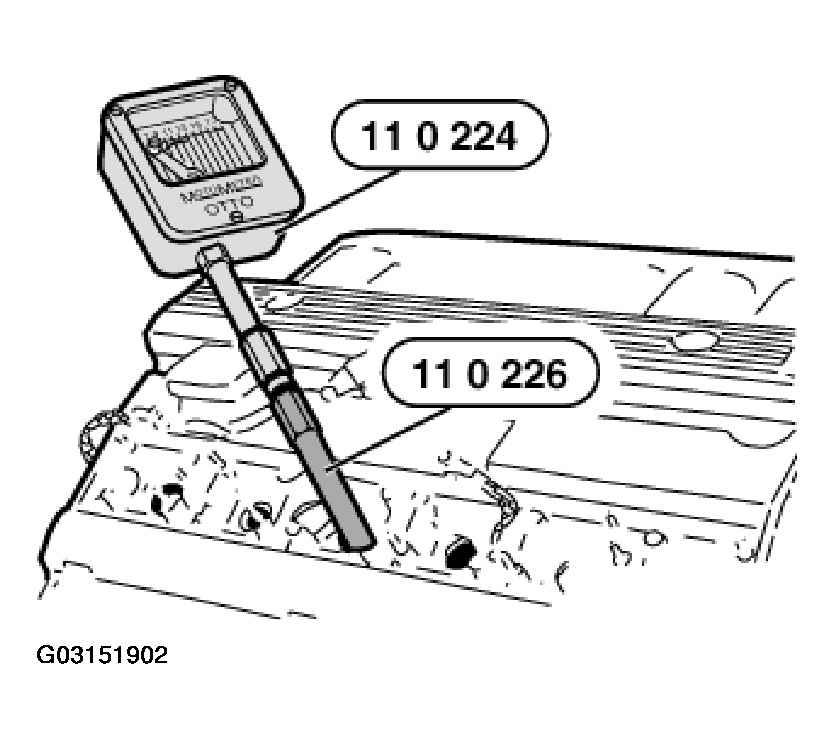

Fig 2: Checking Compression

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Now clear the fault memory.
